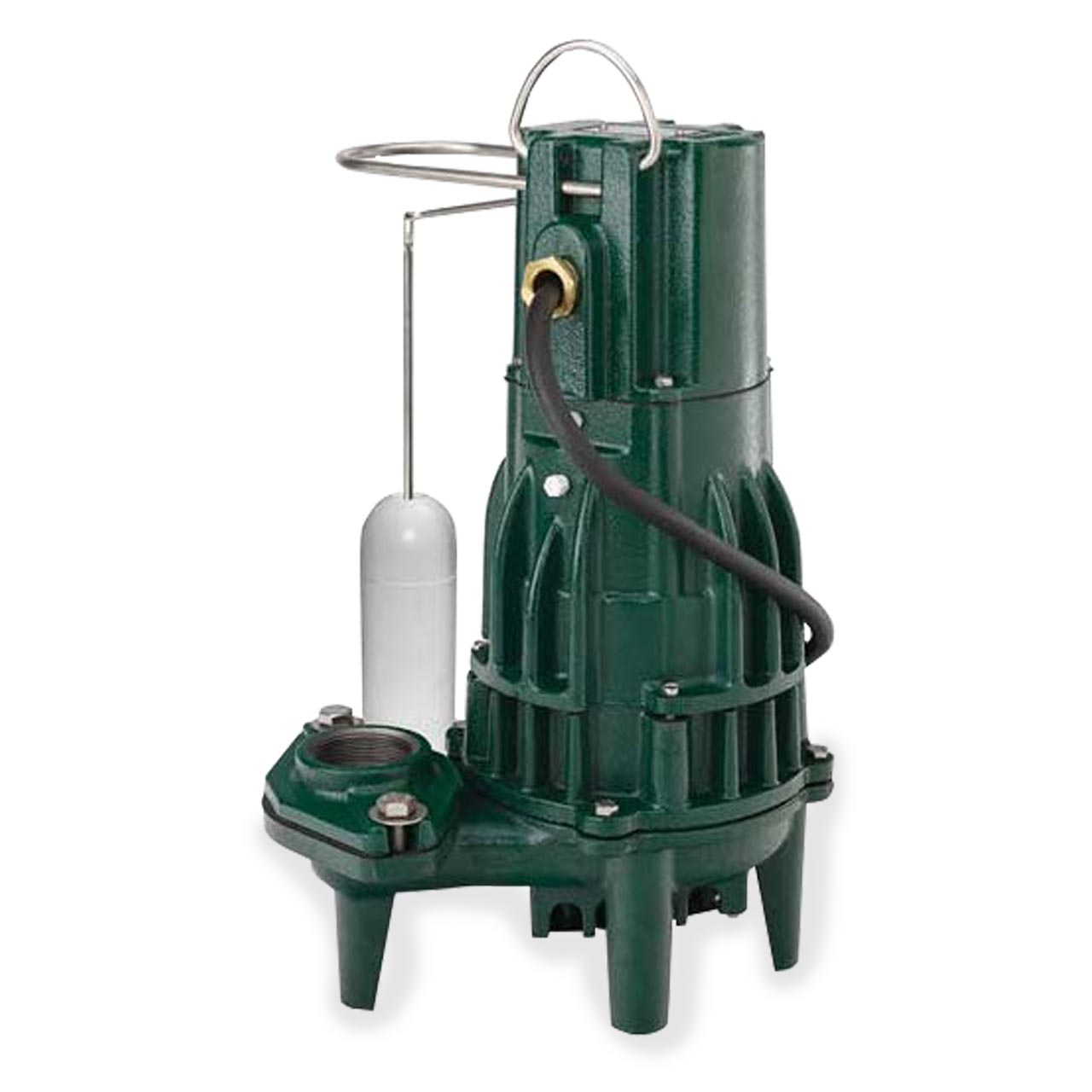

Zoeller 165-0029 Model D165 High Head Effluent Pump 1.0 HP 230V 1PH 35' Cord Automatic
Zoeller 165-0029 Model D165 High Head Effluent Pump 1.0 HP 230V 1PH 35' Cord Automatic
SKU : ZLR165-0029
In Stock Quantity:0
:
Brand
:
Regular price
$1,719.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model D165 High Head Effluent Pump Description
The Flow-Mate series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!
Zoeller Model D165 High Head Effluent Pump Features and Benefits
- Durable Cast Iron Constructed Switch Case, Base, Motor and Pump Housing
- Impeller, Bronze Class 85-5-5-5
- Corrosion-Resistant, Powder Coated Epoxy Finish
- Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected Motor
- Maximum Temperature for Effluent or Dewatering 130°F (54°C) (E/D 140°F,60°C)
- Stainless Steel Screws, Bolts, Float Rod, Handle, Guard, Arm and Seal Assembly
- Passes 3/4" (19 mm) Spherical Solids
- 1-½” NPT Discharge Standard, Optional 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
- Automatic Units Available with Float-Operated, Submersible, 2 Pole Mechanical Switch
Specifications
Specifications
Zoeller 165-0029 High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 10.2
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 86.5'
- MAXIMUM CAPACITY: 60 GPM
- SWITCH TYPE: Automatic
- SWITCH 'ON' LEVEL: 15-3/4"
- SWITCH 'OFF' LEVEL: 5-1/4"
- DISCHARGE PIPE SIZE: 1-1/2" NPT Vertical Discharge
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 35' Type UL Listed, 3-Wire Neoprene Cord and Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model D165 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 160 Product Resources
Download Zoeller Model 160 Catalog Sheet FM0460 Ea
Download Zoeller Model 160 Technical Sheet: High Head Flow-Mate 161/4161,163/4163,165/4165
Download Zoeller Model 160 Installation Instructions- 1 Year Warranty FM0447
Download Zoeller Model 165 Parts List FM0459
