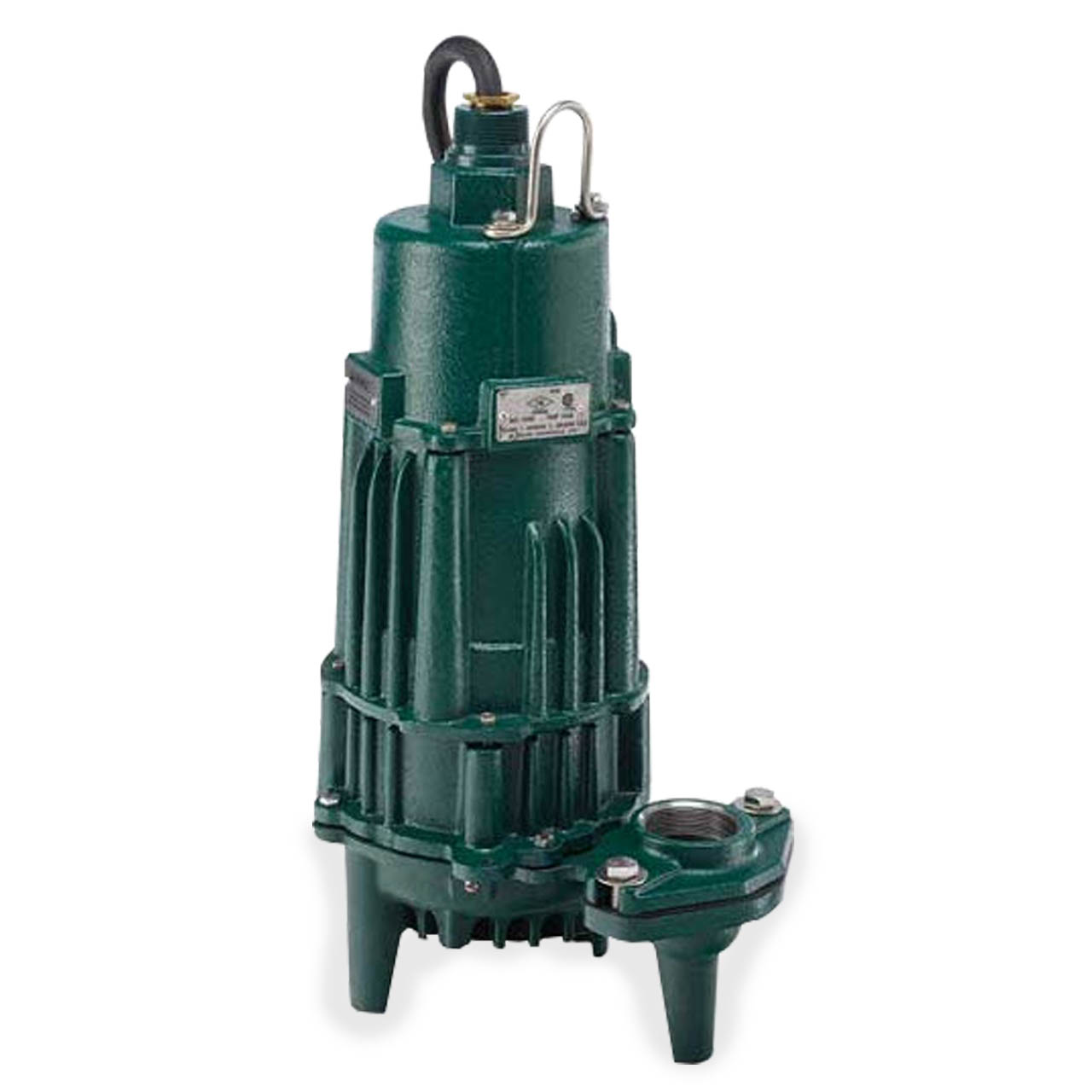

Zoeller 161-0063 Model GX161 Explosion Proof High Head Effluent Pump 0.5 HP 460V 3PH 35' Cord Nonautomatic

Zoeller 161-0063 Model GX161 Explosion Proof High Head Effluent Pump 0.5 HP 460V 3PH 35' Cord Nonautomatic

Discontinued or no longer available.

SKU : ZLR161-0063

In Stock Quantity:0

:
Brand : Zoeller
Shipping calculated at checkout.

Description

DISCONTINUED - 161 Series

Zoeller Model GX161 Explosion Proof High Head Effluent Pump Description

This series of submersible pumps is designed for use in residential or commercial dewatering and effluent applications in Class I, Division 1, Group C and D environments. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions. As with every Zoeller pump, each one is 100% factory tested to ensure quality and reliability for years of trouble-free performance!

Zoeller Model GX161 Explosion Proof High Head Effluent Pump Features and Benefits

  • cCSAus Rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
  • Tested to FM Standards 3600 and 3615 by CSA
  • WARNING: Not for use in Acidic, Methanol, or Ethyl Acetate Atmospheres
  • Non-Clogging Vortex Impeller Design, Bronze Class 88-8-0-4
  • Stainless Steel Rotor Shaft
  • Durable Cast Construction: Cast Iron Cover, Motor Adapter and Pump Housing All Cast Iron Class 30, 30000# Tensile Strength
  • 20' (6 m), UL Listed, 5-Wire (1PH) or 8-Wire (3PH) Neoprene Cord. Extra Cord Lengths Available in 25', 35' and 50' (8, 11 and 15 m) Sensor Leads and Power Leads in One Cord for Easy Installation
  • Stainless Steel Plate, Bolts, Handle, Guard and Float Rod Guide, Switch Arm and Actuator Assembly
  • Threaded Conduit Connection for Protecting Cords in Extra Heavy-Duty Applications: 1-1/2" NPT
  • Moisture Sensors Prewired in Motor Housing (functionality requires indicator in panel)
  • Zoeller Control Panel with Intrinsically-Safe Relays and Moisture Indicator is Required with Nonautomatic Units (Simplex panel 10-1218 and Duplex panel 10-1224)
  • Motor - 3450 RPM, Oil Filled, Hermetically Sealed, Automatic Reset Thermal Overload Protected (3 Phase requires circuit in control panel)
  • Maximum Temperature for Effluent or Dewatering: 104°F (40°C)
  • All Models Pass 3/4" (19 mm) Spherical Solids
  • 1 ½” NPT Discharge Standard 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
  • Corrosion-Resistant, Powder Coated Epoxy Finish with Stainless Steel Screws and Handle

Specifications

Zoeller 161-0063 Explosion Proof High Head Effluent Pump Specifications

  • VOLTAGE: 3ø, 460V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 2.9
  • MOTOR TYPE: 3 Phase
  • RPM: 3450
  • MAXIMUM HEAD: 56'
  • MAXIMUM CAPACITY: 100 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 1-1/2" NPT
  • MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
  • IMPELLER TYPE: Bronze, Non-Clogging Vortex
  • CORD LENGTH: 35' Type UL listed 8-wire SOOW Cord
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
  • HAZARDOUS DUTY: Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction

Zoeller Model GX161 Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Zoeller Model X160 Product Resources


Download Zoeller Model X160 Catalog Sheet FM1745

Download Zoeller Model X160 Technical Sheet FM2858

Download Zoeller Owner's Manual Hazardous Environment System FM2298

Download Zoeller Explosion Proof Wiring Diagrams FM1973
