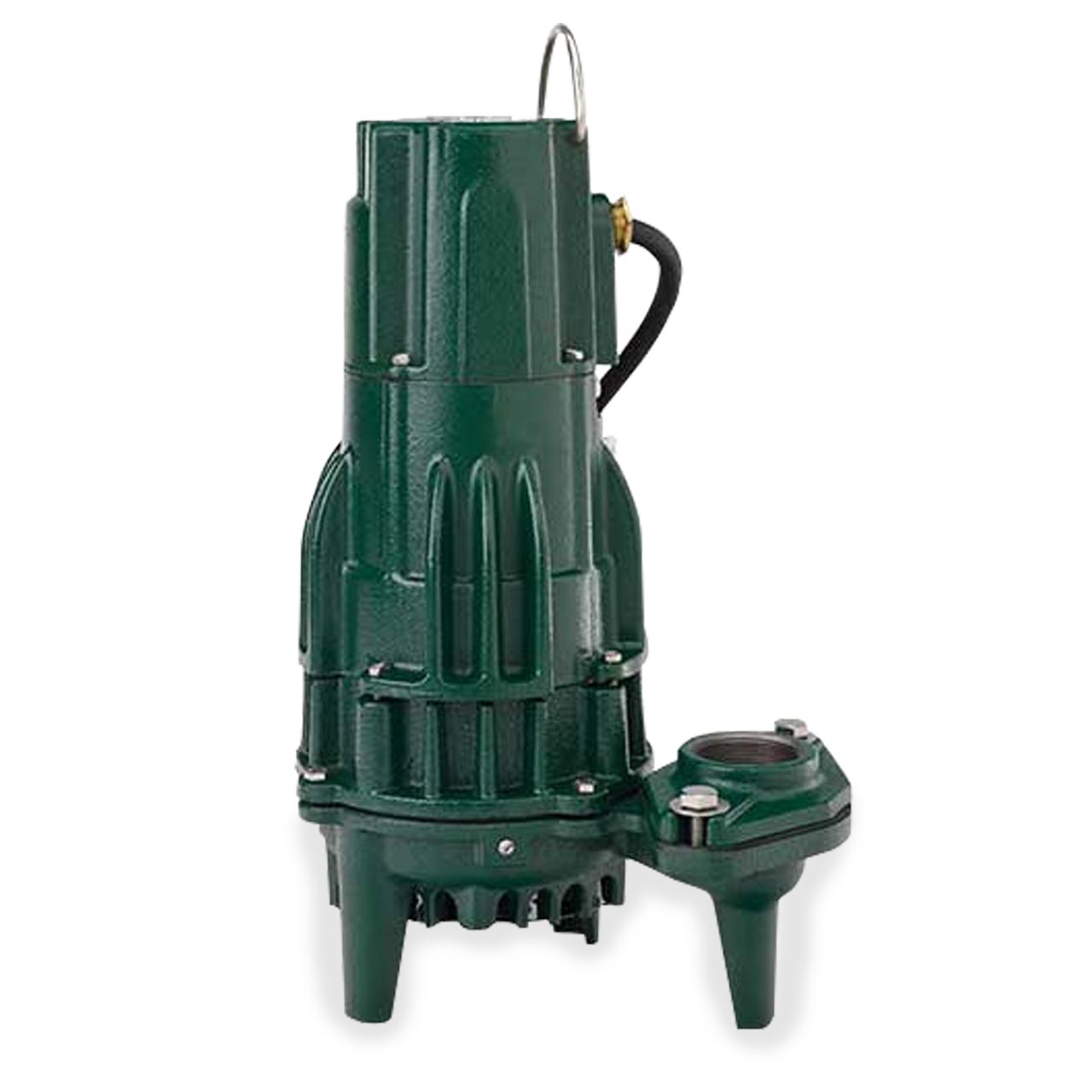

Zoeller 161-0020 Model G161 High Head Effluent Pump 0.5 HP 460V 3PH 35' Cord Nonautomatic
Zoeller 161-0020 Model G161 High Head Effluent Pump 0.5 HP 460V 3PH 35' Cord Nonautomatic
SKU : ZLR161-0020
In Stock Quantity:0
:
Brand
:
Regular price
$1,551.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model G161 High Head Effluent Pump Description
Our Model G161 nonautomatic Effluent Pump is designed to remove effluent or ground water in septic or effluent applications. The 1/2 HP G161 is a time-tested and reliable effluent pump. The G161 is a nonautomatic pump requiring a piggyback float switch or control panel for operation. Either option allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The pump's vortex impeller allows it to pass 3/4" spherical solids. The impeller's clearance in relation to the pump housing allows water and solids to pass freely through the pump. This combination of design features lessens the chance of clogging and downtime.
The Model 161's motor housing, pump housing, and base are each constructed of cast iron. The pump's identification tag, handle and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 161 is able to withstand the most demanding effluent applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Zoeller Model G161 High Head Effluent Pump Features and Benefits
- Oil Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation Which Prevents the Pump From Overheating
- Nonautomatic Operation that Will Require a Piggyback Float Switch or Control Panel to Control the Pump's On/Off Level
- Corrosion-Resistant Cast Iron Vortex Impeller to Allow Free Passage of 3/4" Spherical Solids Which Prevents Clogging and Increases Reliability
- Stainless Steel Screws, Handle, and Hardware to Prevent Rust and Corrosion
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends the Life of the Pump in Harsh Environments
- 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure That it Performs as Expected When You Receive It.
- Comes with a 1-Year Limited Warranty Giving You Protection Over Your Investment and the Peace of Mind You Expect in a Quality Product
- 1-½” NPT Discharge Standard, Optional 2” NPT FLANGE KIT or 3” NPT FLANGE KIT Available
Specifications
Specifications
Zoeller 161-0020 High Head Effluent Pump Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 2.9
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 57'
- MAXIMUM CAPACITY: 100 GPM
- SWITCH TYPE: Manaul
- DISCHARGE PIPE SIZE: 1-1/2" NPT Vertical Discharge
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 35' Type UL Listed, 4-Wire Cord with No Plug
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller ModelG161 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 160 Product Resources
Download Zoeller Model 160 Catalog Sheet FM0460 Ea
Download Zoeller Model 160 Technical Sheet: High Head Flow-Mate 161/4161,163/4163,165/4165 FM2785
Download Zoeller Model 160 Installation Instructions- 1 Year Warranty FM0447
Download Zoeller Model 161 Parts List FM0668
