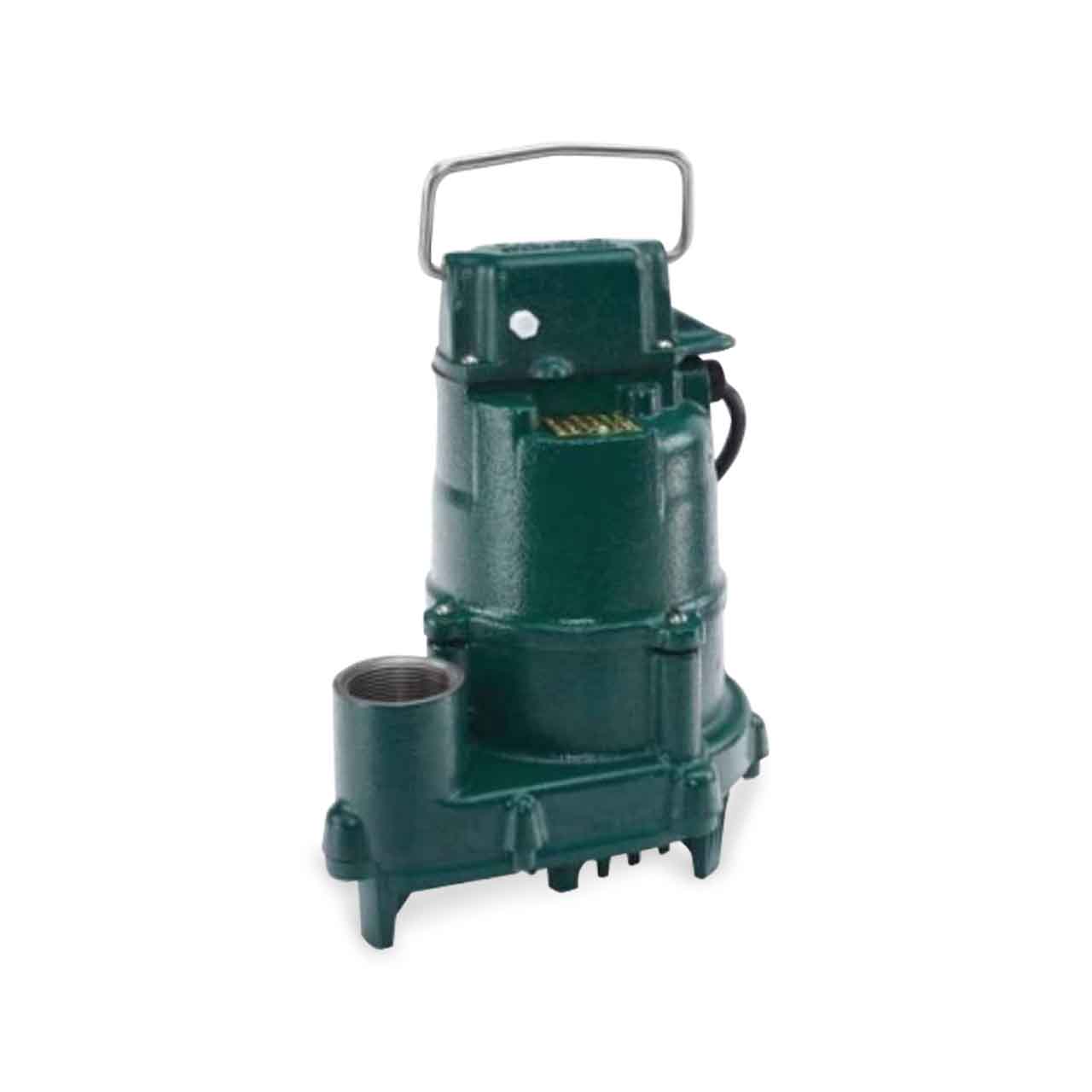

Zoeller Model 152 High Head Effluent Pump Description
Our Model E152 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 4/10 HP Model 152 is know for its dependability. The E152 is a nonautomatic pump requiring a piggyback float switch or control panel for operation. Either operation allows you to set the on and off point in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 152's switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, handle and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 152 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Zoeller Model 152 High Head Effluent Pump Features and Benefits
- Oil Filled Motor Optimizes Heat Dissipation which Prevents the Pump from Overheating During Extended-Use Occurrences
- A Versatile Nonautomatic Pump That Can Be Paired with Your Choice of a Piggyback Float Switch or a Control Panel with Control Floats to Cover a Broad Range of Sump Pit Configurations
- Built with an Engineered Plastic Vortex Impeller to Allow Free Passage of 3/4" Spherical Solids to Prevent the Potential for Clogging
- Powder-Coated Epoxy Finish Provides Corrosion-Resistant and Extends Pump Life in Harsh Environments
- Stainless Steel Screws, Bolts, and Handle to Prevent Rust and Corrosion Even When Installed in an Elevator Sump Pump Application
- Comes Standard with a 1-1/2" Threaded Discharge and a 1-1/2" X 2" PVC Male Adapter so it Will Mate up to the Most Common Pipe Sizes
- 100% Factory Tested - Every Pump is Submerged in Water and Tested at the Factory to Ensure that it Performs as Expected when you Receive it.
- Comes with a 3-Year Limited Warranty Giving you Protection Over Your Investment and the Peace of Mind you Expect in a Quality Product
Specifications
Specifications
Zoeller 152-011 High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 4.3
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 38'
- MAXIMUM CAPACITY: 68 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Engineered Thermoplastic, Non-Clogging Vortex
- CORD LENGTH: 25' Type UL Listed
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model 152 High Head Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 150 High Head Effluent Pump Product Resources
Download Zoeller Model 150 High Head Effluent Pump Catalog Sheet FM3408
Download Zoeller Model 150 High Head Effluent Pump Technical Sheet FM2784
Download Zoeller Model 150 High Head Effluent Pump Installation Instructions- 3 Year Warranty FM2676
Download Zoeller Model 150 High Head Effluent Pump Parts List FM1950
