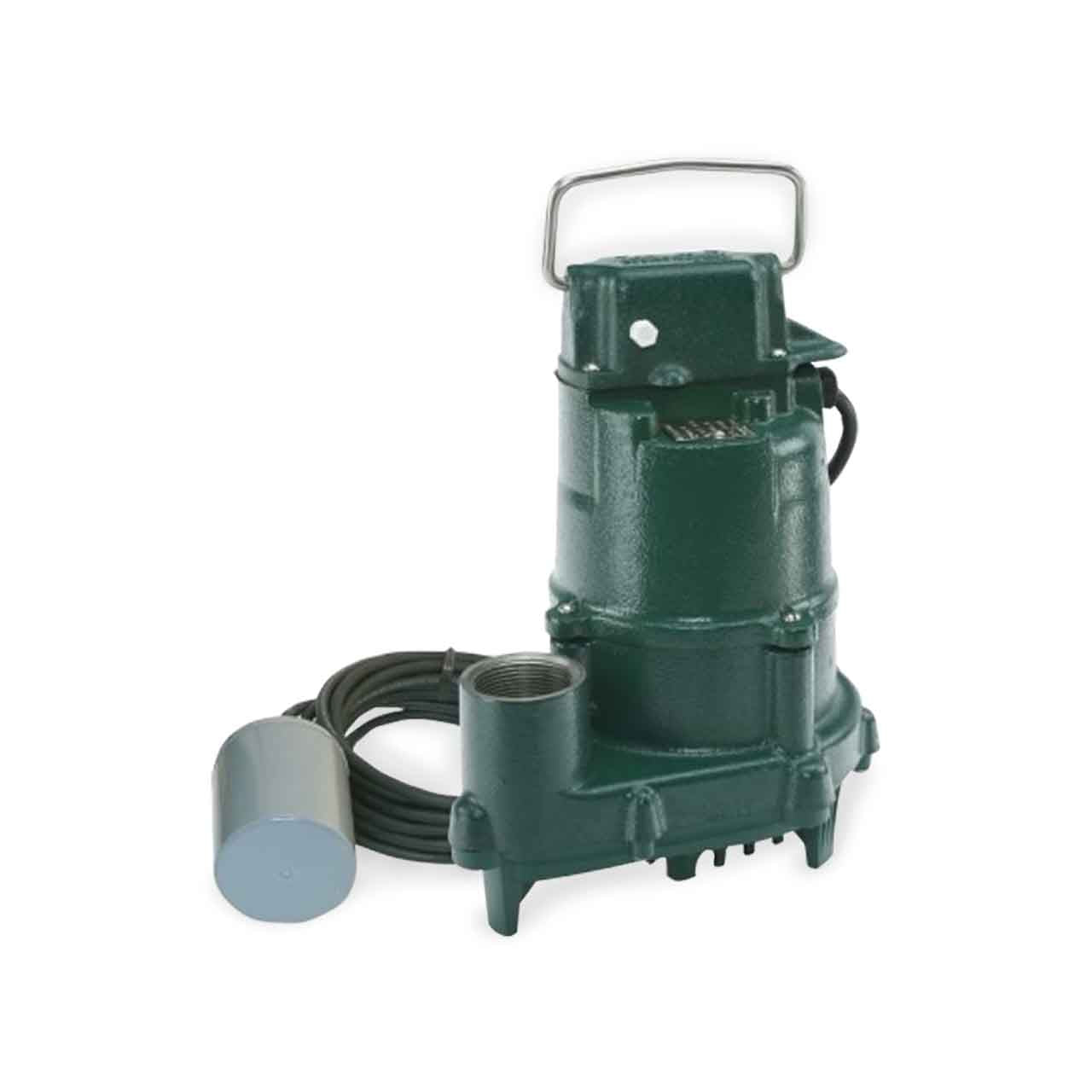

Zoeller 151-0005 Model BN151 High Head Effluent Pump 0.33 HP 115V 1PH 20' Cord Automatic
Zoeller 151-0005 Model BN151 High Head Effluent Pump 0.33 HP 115V 1PH 20' Cord Automatic
SKU : ZLR151-0005
In Stock Quantity:-1
:
Brand
:
Regular price
$381.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model 151 High Head Effluent Pump Description
Our Model BN151 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1/3 HP Model 151 is known for its dependability. The BN151 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 151’s switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 151 is able to withstand the most demanding applications.
Zoeller Model 151 High Head Effluent Pump Features and Benefits
- Oil Filled for Optimal Heat Dissipation: This Design Minimizes Concerns about the Pump Overheating or Breaking Down Due to Extreme Heat Generation During Extended-Use Applications
- Nonautomatic Pump with Piggyback Variable Level Float Switch which Allows you to Adjust the On/Off Level for Optimal Runtime
- Non-Clogging, Engineered Thermoplastic Vortex Impeller Design. The Vortex Impeller Allows Free Passage of Solids to Prevent Clogging
- The Single Piggyback Float Switch Turns a Nonautomatic Pump into an Automatic Pump and Also Allows you to Isolate the Pump from the Switch Making it Easier to Troubleshoot Issues in the Field.
- For Strength and Durability, this Pump Includes a Corrosion-Resistant, Powder-Coated Epoxy Finish, Cast Iron Construction and Stainless Steel Lifting Handles and Bolts
- Stainless Steel Screws, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump
- 100% Factory Tested: Our Factory-Tested Effluent Pumps Ensure Reliable Performance in Challenging Applications with Fewer Concerns About Mechanical Failures
- 3-Year Limited Warranty: This Model Comes with Warranty Coverage From Zoeller Pump Company, Giving You Extra Protection and More Peace of Mind
Specifications
Specifications
Zoeller 151-0005 High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.33 HP
- AMP DRAW (full load): 6.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 30'
- MAXIMUM CAPACITY: 50 GPM
- SWITCH TYPE: Variable Level Float Switch
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 1/2" Spherical Solid
- IMPELLER TYPE: Engineered Thermoplastic, Non-Clogging Vortex
- CORD LENGTH: 20' Power Cord and 20' Cord on VLFS
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model 151 High Head Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 150 High Head Effluent Pump Product Resources
Download Zoeller Model 150 High Head Effluent Pump Catalog Sheet FM3408
Download Zoeller Model 150 High Head Effluent Pump Technical Sheet FM2784
Download Zoeller Model 150 High Head Effluent Pump Installation Instructions- 3 Year Warranty FM2676
Download Zoeller Model 150 High Head Effluent Pump Parts List FM1950
