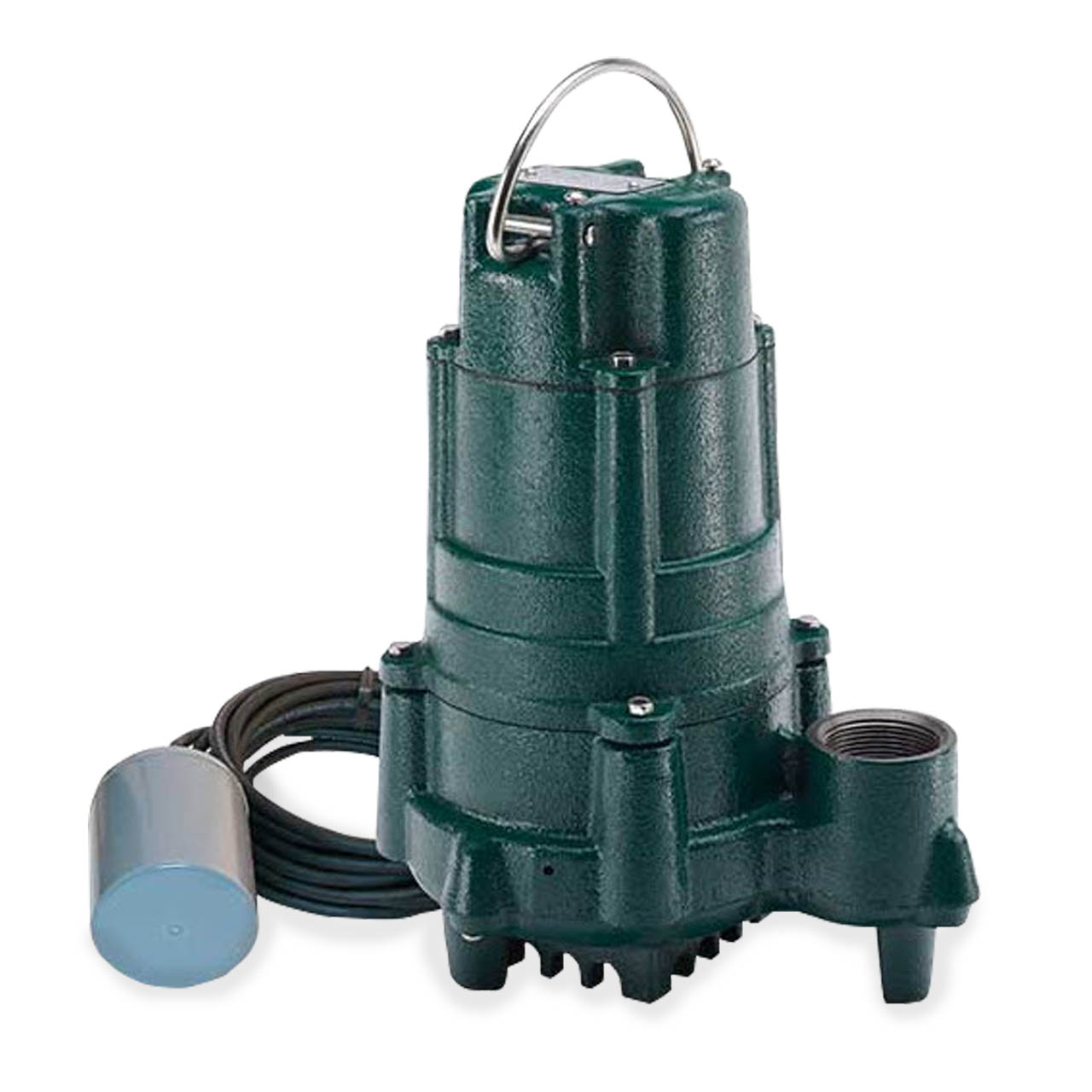

Zoeller 145-0011 Model BE145 Sump & Effluent Pump 0.75 HP 115V 1PH 20' Cord Automatic
Zoeller 145-0011 Model BE145 Sump & Effluent Pump 0.75 HP 115V 1PH 20' Cord Automatic
SKU : ZLR145-0011
In Stock Quantity:0
:
Brand
:
Regular price
$978.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model BE145 Sump & Effluent Pump Description
The "Flow-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.
Zoeller Model BE145 Sump & Effluent Pump Features and Benefits
- Durable Cast Iron Construction
- Features an Engineered Thermoplastic, Single Vane Impeller Design and Passes 3/4" (19mm) Spherical Solids
- Oil Filled and Hermetically Sealed, Automatic Reset Thermal Overload Protection
- Available in Both Single and Double Shaft Seal Designs
- Carbon/Ceramic Mechanical Shaft Seals
- Stainless Steel Bolts and Lifting Handle
- 1-1/2" NPT Vertical Discharge
- Operates at 130°F (54°C) in Effluent or Dewatering Applications
- BN and BE Models Include a Variable Level Float Switch and 1-1/2" x 2" PVC Adapter Fitting
- Corrosion-Resistant, Powder Coated Epoxy Finish
Specifications
Specifications
Zoeller 145-0011 Sump & Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.75 HP
- AMP DRAW (full load): 6.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 74'
- MAXIMUM CAPACITY: 61 GPM
- SWITCH TYPE: Variable Level Float Switch
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 3/4" Spherical Solid
- IMPELLER TYPE: Engineered Thermoplastic, Single Vane
- CORD LENGTH: 20' Power Cord and 20' Cord on VLFS
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model BE145 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 140 Product Resources
Download Zoeller Model 140 Brochure FM3158
Download Zoeller Model 140 Technical Sheet: Flow-Mate 140/4140,145/4145 FM2783
Download Zoeller Model 140 Installation Instructions FM0447
Download Zoeller Model 140, 4140 & 145, 4145 Parts List FM1426
