Zoeller 140-0006 Model BE140 Effluent Pump 1.0 HP 230V 1PH 20' Cord Automatic
Zoeller 140-0006 Model BE140 Effluent Pump 1.0 HP 230V 1PH 20' Cord Automatic
SKU : ZLR140-0006
In Stock Quantity:0
:
Brand
:
Regular price
$885.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

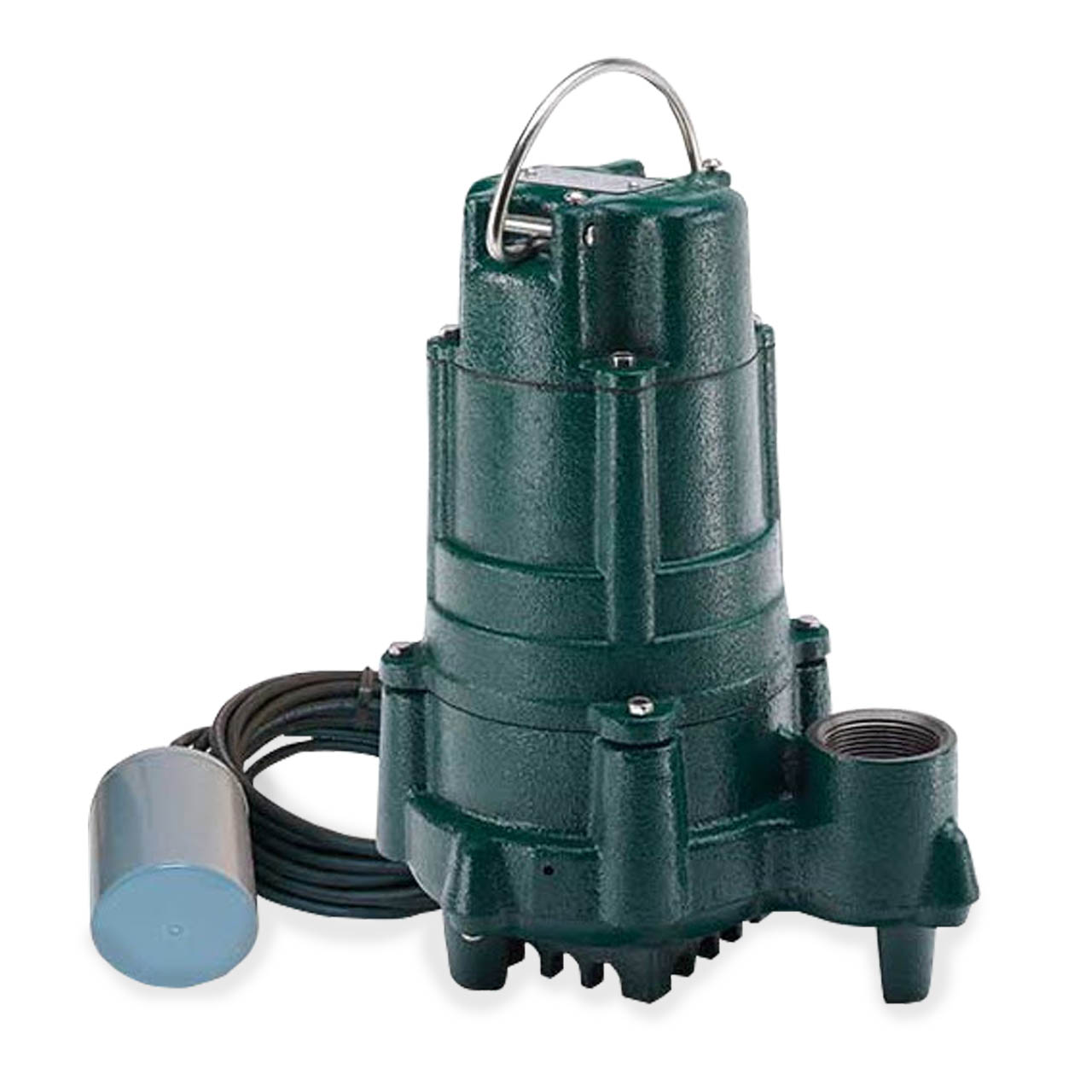

Zoeller Model 140 Effluent Pump Description
Our Model BE140 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1 HP Model 140 is known for its dependability. The BE140 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 140's switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump's identification tag, handle and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 140 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Zoeller Model 140 Effluent Pump Features and Benefits
- Oil-Filled Motor and Cast Iron Motor Housing for Optimal Heat Dissipation which Prevents the Pump from Overheating
- Nonautomatic Pump (Piggyback Variable Level Float Switch Available Separately)
- Corrosion Resistant Engineered Plastic Vortex Impeller to Allow Free Passage of 1/2" Spherical Solids which Prevents Clogging and Increases Reliability
- Powder-Coated Epoxy Finish Provides Corrosion-Resistance and Extends Life in Harsh Environments
- Stainless Steel Screws, Handle and Hardware to Prevent Rust and Corrosion Over the Life of the Pump
- 100% Factory Tested: Our Factory-Tested Effluent Pumps Ensure Reliable Performance in Challenging Applications with Fewer Concerns about Mechanical Failures
- 1-Year Limited Warranty: This Model Comes with Warranty Coverage from Zoeller Pump Company, Giving You Extra Protection and More Peace of Mind
Specifications
Specifications
Zoeller 140-0006 Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 6.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3450 RPM
- MAXIMUM HEAD: 50'
- MAXIMUM CAPACITY: 86 GPM
- SWITCH TYPE: Variable Level Float Switch
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 1/2" Spherical Solid
- IMPELLER TYPE: Engineered Thermoplastic, Non-Clogging Vortex
- CORD LENGTH: 20' Type UL Listed, Neoprene w/ Molded Plug Cap & Ground Wire
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model 140 Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 140 Effluent Pump Product Resources
Download Zoeller Model 140 Effluent Pump Brochure FM3158
Download Zoeller Model 140 Effluent Pump Technical Sheet: FM2783
Download Zoeller Model 140 Effluent Pump Installation Instructions FM0447
Download Zoeller Model 140 Effluent Pump Parts List FM1426
Download Zoeller Specifications Effluent Pump Duplex FM0530
Download Zoeller Specifications Effluent Pump Simplex FM0531
