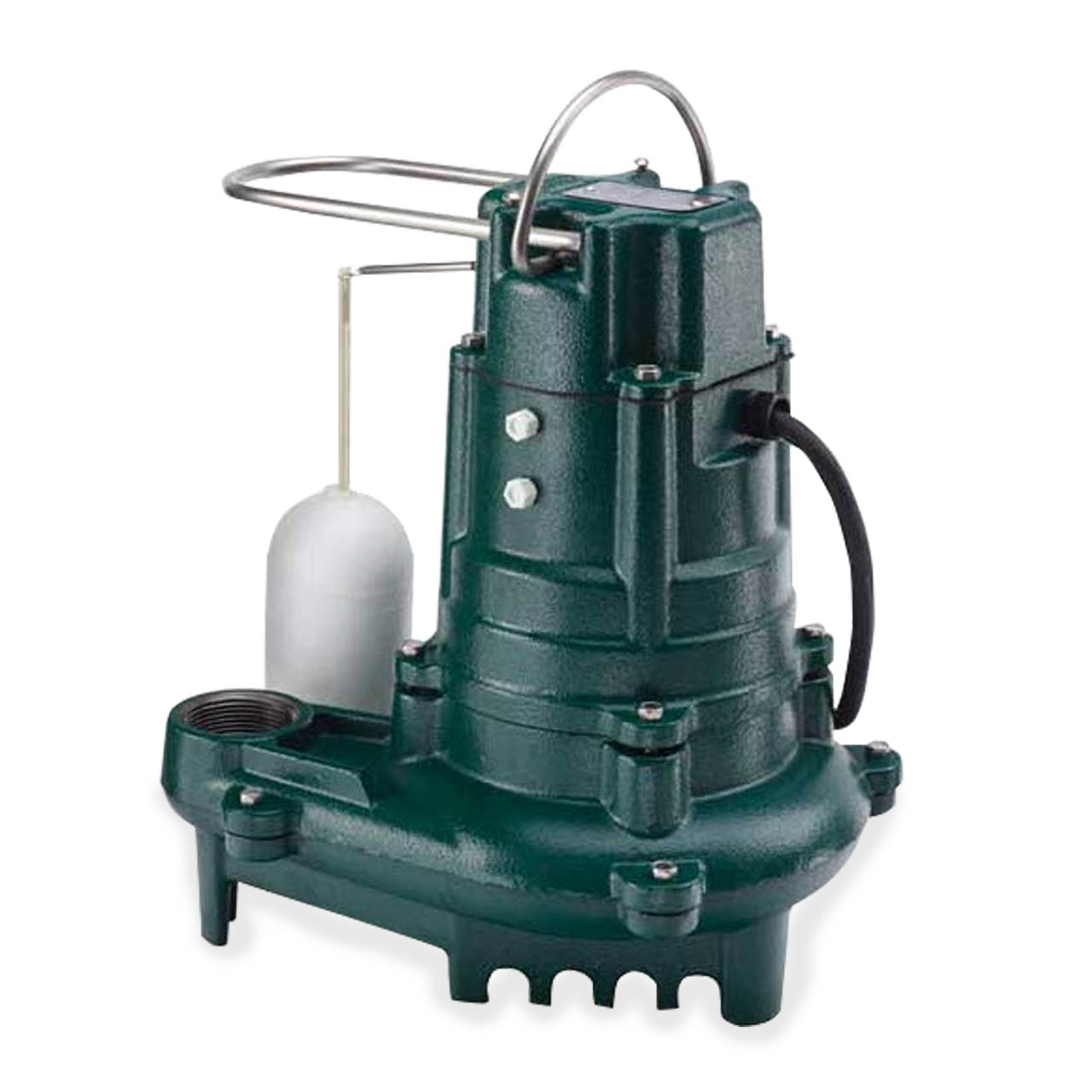

Zoeller 139-0005 Model M139 Bronze Sump & Effluent Pump 0.5 HP 115V 1PH 25' Cord Automatic
Zoeller 139-0005 Model M139 Bronze Sump & Effluent Pump 0.5 HP 115V 1PH 25' Cord Automatic
SKU : ZLR139-0005
In Stock Quantity:-1
:
Brand
:
Regular price
$4,097.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model M139 Sump & Effluent Pump Description
The Flow-Mate series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.
Zoeller Model M139 Sump & Effluent Pump Features and Benefits
- Castings - All Bronze
- Durable, Cast Iron Construction - Switch Case Motor and Pump Housing, Base and Impeller
- Float-Operated, 2-Pole Mechanical Switch
- No Sheet Metal Parts to Rust or Corrode
- Oil-Filled and Hermetically-Sealed, Automatic Reset Thermal Overload Protected Motor
- Stainless Steel Screws, Bolts, Guard, Handle, Arm and Seal Assembly
- Maximum Temperature for Effluent or Dewatering: 130°F (54°C)
- Passes 5/8" (16 mm) Spherical Solids
- No Screens to Clog
- 1-1/2” NPT Discharge (1-1/2" x 2" PVC Adapter Fitting Included with BN and BE Models)
- Variable Level Control Systems Available, Designed for Heavy-Duty Effluent Applications
Specifications
Specifications
Zoeller Model M139 Sump & Effluent Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 10.7
- MOTOR TYPE: Split Phase or 3 Phase
- RPM: 1750 RPM
- MAXIMUM HEAD: 26'
- MAXIMUM CAPACITY: 93 GPM
- SWITCH TYPE: Automatic
- SWITCH 'ON' LEVEL: 10" (25.4 cm)
- SWITCH 'OFF' LEVEL: 2-3/4" (7 cm)
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 5/8" Spherical Solid
- IMPELLER TYPE: Bronze, Non-Clogging Vortex
- CORD LENGTH: 25' Type UL Listed, 3-Wire Neoprene
- BODY CONSTRUCTION: Bronze
- MAXIMUM OPERATING TEMPERATURE: 130°F (54C)
Zoeller Model M139 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model M139 Product Resources
Download Zoeller Model 130 Catalog Sheet FM0411
Download Zoeller Technical Data Sheet FM2782
Download Zoeller Model 130 Installation Instructions FM0447
Download Zoeller Model 139 Parts List FM0434
Download Zoeller Specifications Effluent Duplex FM0530
