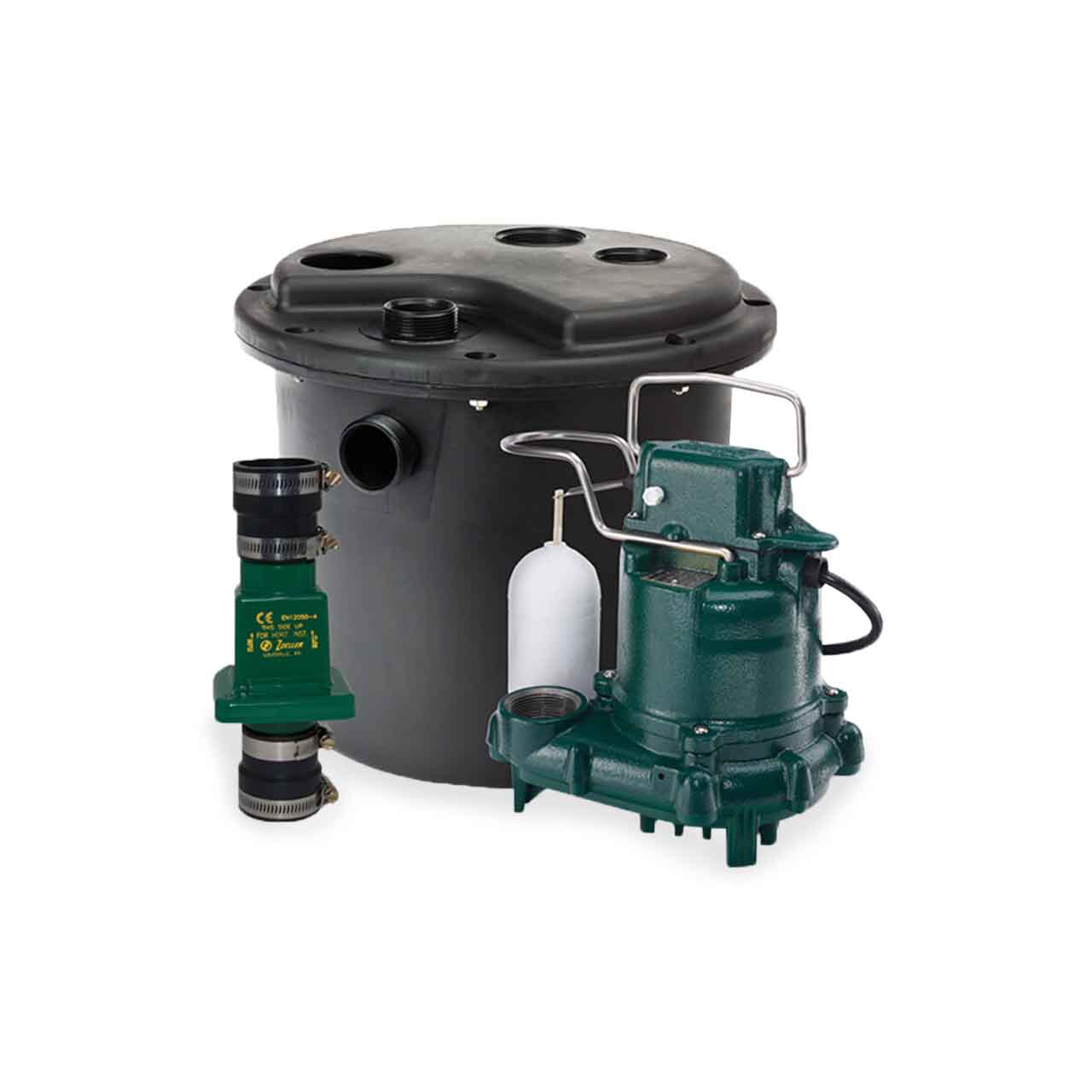

Zoeller 104-0005 Model 104 Preassembled M72 Drain Pump System with Polypropylene Basin & Lid
Zoeller 104-0005 Model 104 Preassembled M72 Drain Pump System with Polypropylene Basin & Lid
SKU : ZLR104-0005
In Stock Quantity:2
:
Brand
:
Regular price
$435.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Model 104 Basin Kit Description
Drain pump system removes water from areas where gravity flow is not available.
Zoeller Model 104 Basin Kit Features and Benefits
General
- Applications Include Laundry Tray Pump, Wet Bar Sink, Lavatory, Air Conditioning Condensate and Dehumidifier Water Removal.
- Can Also be Used in Conjunction With Dishwashers and Garbage Disposal Applications.
- No Inlet Filters or Screens to Clean
- Optional Top or Side Inlet
- Automatic Pumps with Tank Cord Seals
- All Hardware for Easy Assembly
- Polypropylene Basin and Lid
- Internal Discharge Pipe to Lid (trap supplied by others)
- Easy Installation, No Need to Dig a Sump
- Preassembled and Includes Automatic M72 Pump
-
DOES NOT INCLUDE CHECK VALVE
Model 72 Pump Features
- Passes Laundry Lint
- Stainless Steel Screws, Switch Arm and Lower Motor Housing
- 1½” NPT Discharge
- Temperature Rated 110°F (43°C)
Basin
- Polypropylene Construction
- Corrosion Resistant
- 2” NPT Vent
- 1½” NPT Discharge
- 1½” Compression Slip Fit for Top and Side Intake
- Threaded Connections for Easy Installation
- May be Installed with Internal Trap for Space Savings
- Temperature Rated 130°F (55°C)
Specifications
Specifications
Zoeller Model 104 Basin Kit Specifications
- HORSEPOWER: 0.3 HP
- VOLTAGE: 115 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3400 RPM
- AMPS: 3.1
- SOLIDS HANDLING: 1/2" Spherical Solid
- CORD LENGTH: 9'
- MAX HEAD: 19'
- MAX FLOW RATE: 43 GPM
- IMPELLER TYPE: Non-Clogging Vortex
Zoeller Model 104 Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Model 104 Basin Kit Product Resources
Download Zoeller Drain Pump Catalog FM2335
Download Zoeller Drain Pump Technical Sheet FM2801
Download Zoeller Drain Pump Installation Instructions FM2336
