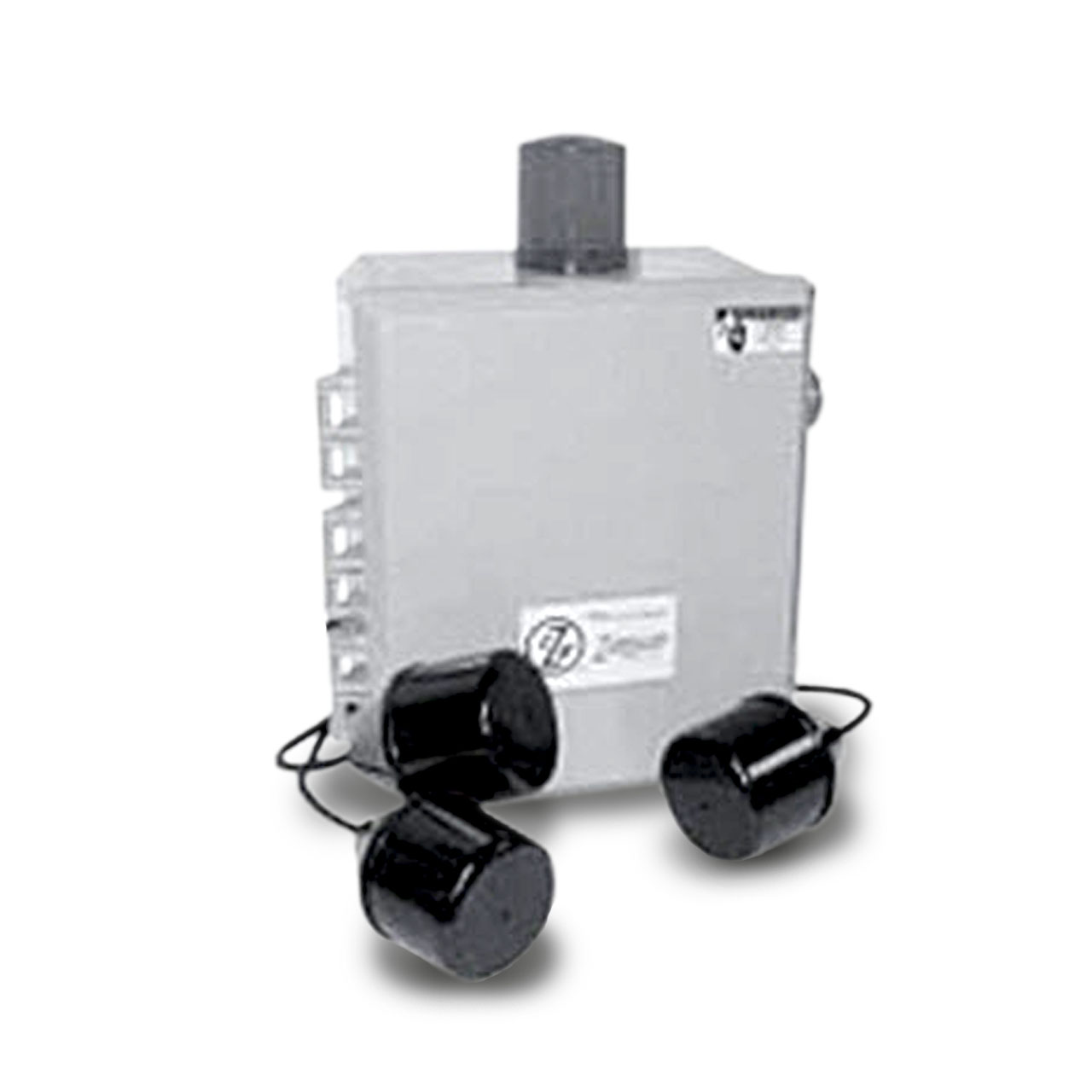

Zoeller 10-1652 Model 841 & 842 Duplex Control Panel Single Directional 200/230V 1PH
Zoeller 10-1652 Model 841 & 842 Duplex Control Panel Single Directional 200/230V 1PH
SKU : ZLR10-1652
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Zoeller Duplex Control Panel Description
The control panel can be housed in a NEMA 4X enclosure and be of a duplex design which controls two pumps in an alternating lead/lag cycle sequence from a 3 or 4-float system. For Models 841 & 842, Single Directional only. The panel contains the required starting, control, & alarm circuits. Rated motor starters and circuit breakers are required for each pump. The 115 volt control circuit will have short circuit protection. The panel will have pump run pilot light(s) and pump & alarm selector switches. The panel will be equipped with circuit(s) which automatically reverses the direction of the cutter blades. A seal leak indicator light is required as well as a thermal cut-out connection for 3 phase systems. A padlock hasp will be provided. High water conditions will be indicated by a visible light with polycarbonate cover. Numbered terminal strips are required. A wiring schematic and trouble shooting guide will be included with each panel. The panel will be UL listed and be labeled as such.
Zoeller Duplex Control Panel Features and Benefits
- Hand Off Auto Toggle Switch for Each Pump
- Green Pump Run Pilot Light for Each Pump
- Alarm Test and Silence Switches
- Red Pilot Light (NEMA 1 only) and Audible Alarm with 83 to 85 Decibel Rating for a High Water Condition
- Red Alarm Beacon Included with NEMA 4X Enclosure
- Auxiliary Dry Contact
- High Water Alarm
- On Single Phase – Circuit Breaker for Each Pump
- Magnetic Starter for Each Pump
- Alternating Mechanism
- Numbered Terminal Strip for Connecting Pumps and Variable Level Float Switches
- NEMA 1, General Purpose or NEMA 4X, Watertight Enclosures Available
- Integral Auxiliary Terminal Board Connections (dry contact) for Remote Alarm Devices
- 3 or 4 Variable Level Float Switch Control Operation
- Three 20’ Float Switches Included With Single Phase Panels
- 2 Year Warranty
- The Use of Off-the-Shelf Components Provide for Relatively Easy Field Maintenance and Repair
Specifications
Specifications
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Duplex Control Panel Product Resources
Download Zoeller 841/842 Series Catalog Sheet FM2190
Download Zoeller NEMA 4X Control Panels-Single Directional Catalog Sheet
