Zoeller 10-1097 Model 841 & 842 Simplex Control Panel Single Directional 200/230V 3PH
Zoeller 10-1097 Model 841 & 842 Simplex Control Panel Single Directional 200/230V 3PH
SKU : ZLR10-1097
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

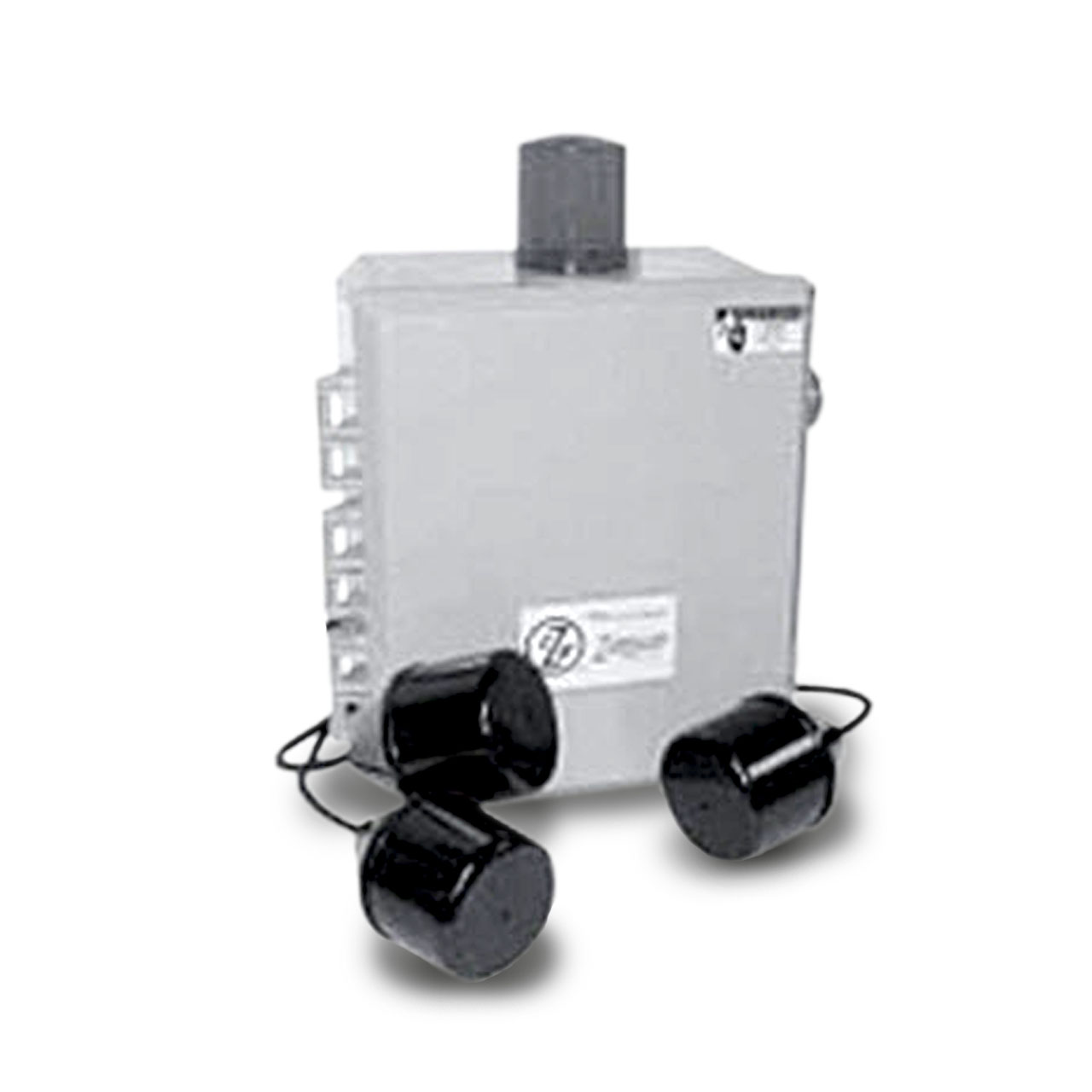

Zoeller Simplex Control Panel Description
The control panel can be housed in a NEMA 4X enclosure and be of a simplex design which controls a single pump from a 3-float system. For Models 841 & 842, Single Directional only. The panel contains the required starting, control, & alarm circuits. Rated motor starters and circuit breakers are required for each pump. The 115 volt control circuit will have short circuit protection. The panel will have pump run pilot light(s) and pump & alarm selector switches. The panel will be equipped with circuit(s) which automatically reverses the direction of the cutter blades. A seal leak indicator light is required as well as a thermal cut-out connection for 3 phase systems. A padlock hasp will be provided. High water conditions will be indicated by a visible light with polycarbonate cover. Numbered terminal strips are required. A wiring schematic and trouble shooting guide will be included with each panel. The panel will be UL listed and be labeled as such.
Zoeller Simplex Control Panel Features and Benefits
- 115-200-230 Volts
- NEMA 4X Watertight Enclosure With Lockable Latch
- Top Mounted Alarm Light
- Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating)
- Pump Run Indicator Light
- Horn Silence and Alarm Test Toggle Switches
- HOA Switch
- 2 Year Warranty
- Dry Auxiliary Contact (not available in plug-in panels)
Three Phase Simplex Control Panel Features:
- 200, 230, 460, 575 Volts
- Hand-Off-Toggle Switch
- Green Pump Run Light
- Alarm Test and Silence Switches
- Red Alarm Beacon and Audible Alarm for a High Water Condition (83 to 85 decibel rating)
- Motor Protection Switch with Overload Protection
- Magnetic Starter
- Numbered Terminal Strip for Connecting Pumps and Variable Level Float Switches
- Dry Auxiliary Contacts for Remote Alarm Devices
- Three Float Operation (FLOAT SWITCHES NOT INCLUDED)
Specifications
Specifications
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Zoeller Simplex Control Panel Product Resources
Download Zoeller 841/842 Series Catalog Sheet FM2190
Download Zoeller NEMA 4X Control Panels-Single Directional Catalog Sheet
