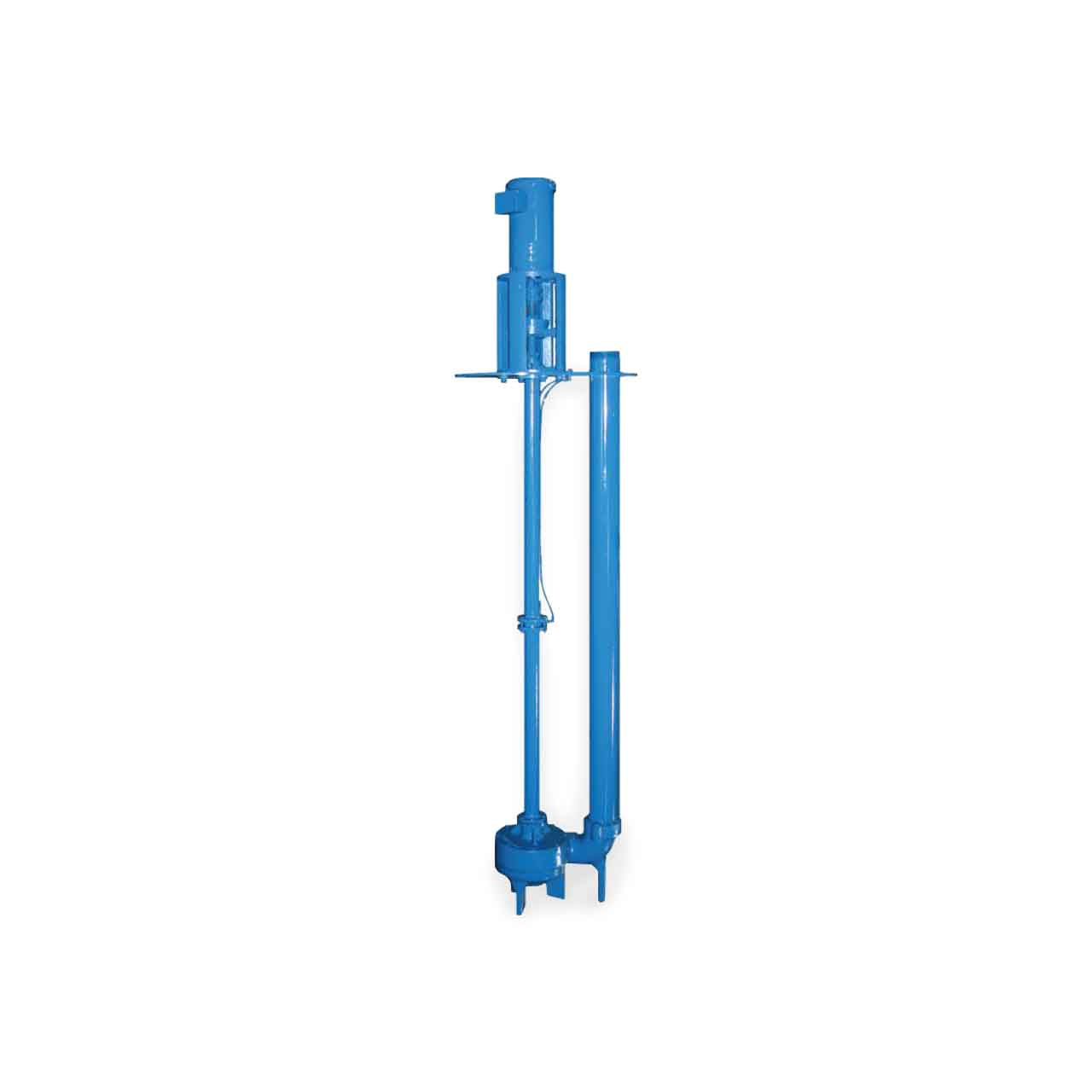

Weinman Type M-VS Vertical Submerged Non-Clog Sewage Ejector Pump Product Description

Weinman Type M-VS sewage ejection pumps are designed for industrial, commercial and municipal pumping of sewage, sludge and trash. The submerged sewage ejectors are built in a wide range of pump sizes for a variety of applications. Auxiliary equipment is offered to assure the right model for your particular installation.

Weinman Type M-VS Vertical Submerged Non-Clog Sewage Ejector PumpTypical Application

• Elevator Pits
• Basements
• Sump Drainage
• Flood Control
• Storm Water
• Industrial Process
• Condensation Control
• Power Plants
• General Dewatering Service
• Sewage

Weinman Type M-VS Vertical Submerged Non-Clog Sewage Ejector Pump Features

• Flexible Coupling: Woods Coupling is Standard. Using a Flexible Rubber Sleeve instead of Conventual Spider, it Absorbs Misalignment and Torsional Shock. Requires no Lubrication or Adjustment once Installed and Aligned. Adjusting Nut Allows Impeller Clearance to be Changed.
• One Piece Thrust Collar with Cap Transmits the Thrust Load from the Shaft to Bearing, Sealing out Dirt and Moisture.
• Grease Fittings and Lines Allow Bearings to be Lubricated from Above.
• Packing Gland Prevents Leakage of Gases or Liquid along Shaft. Grease Lubricated.
• Bottom Bearing Replaceable Bronze Grease Lubricated Bearing gives Adequate Support to Impeller at all Times. May be Converted to Optional "Graphitor" or Rubber "Cut less" without Special Bearing Housing.
• Shaft Sleeve Renewable Sleeve Eliminates Wear on Shaft...Reduces Maintenance Costs.
• Impeller Congenital Enclosed Non-Clog Type, with Repelling Vanes on Back Shroud to Prevent Packing of Solids Behind Impeller.
• Motor NEMA Type C Flange-Face Motor Mounts on Driver Pedestal without Adapter or Fittings.
• Float Switch or Mechanical Alternator Heavy Duty 2 Pole Switch or Mechanical Alternator is Mounted on Cast Iron Stand.
• Thrust Bearing Grease Lubricated Angular Contact-Type Ball Thrust Bearings Carries Both Axial and Radial Loads.
• Column and Shaft Lengths Standardized to Cover most Sump Depth Requirements.
• Perfect Alignment is Provided by Tenon Fit Between Column and Mating Parts.
• Column to Discharge Pipe Spacing is in Two Sizes and Allows for Standardization of Sizes and Shape of Basin Covers.
• Float Moveable Copper Float Slides on Non-Corrosive Float Rod with Adjustable Stops. Eliminates need for High Clearance over the Float Switch Stand.
• Extra Heavy-Duty Casing of Close-Grained Cast Iron for Long, Corrosive-Resistant Underwater Service.

See Resources for Links to the Specifications and Pump Curves.
