Discontinued

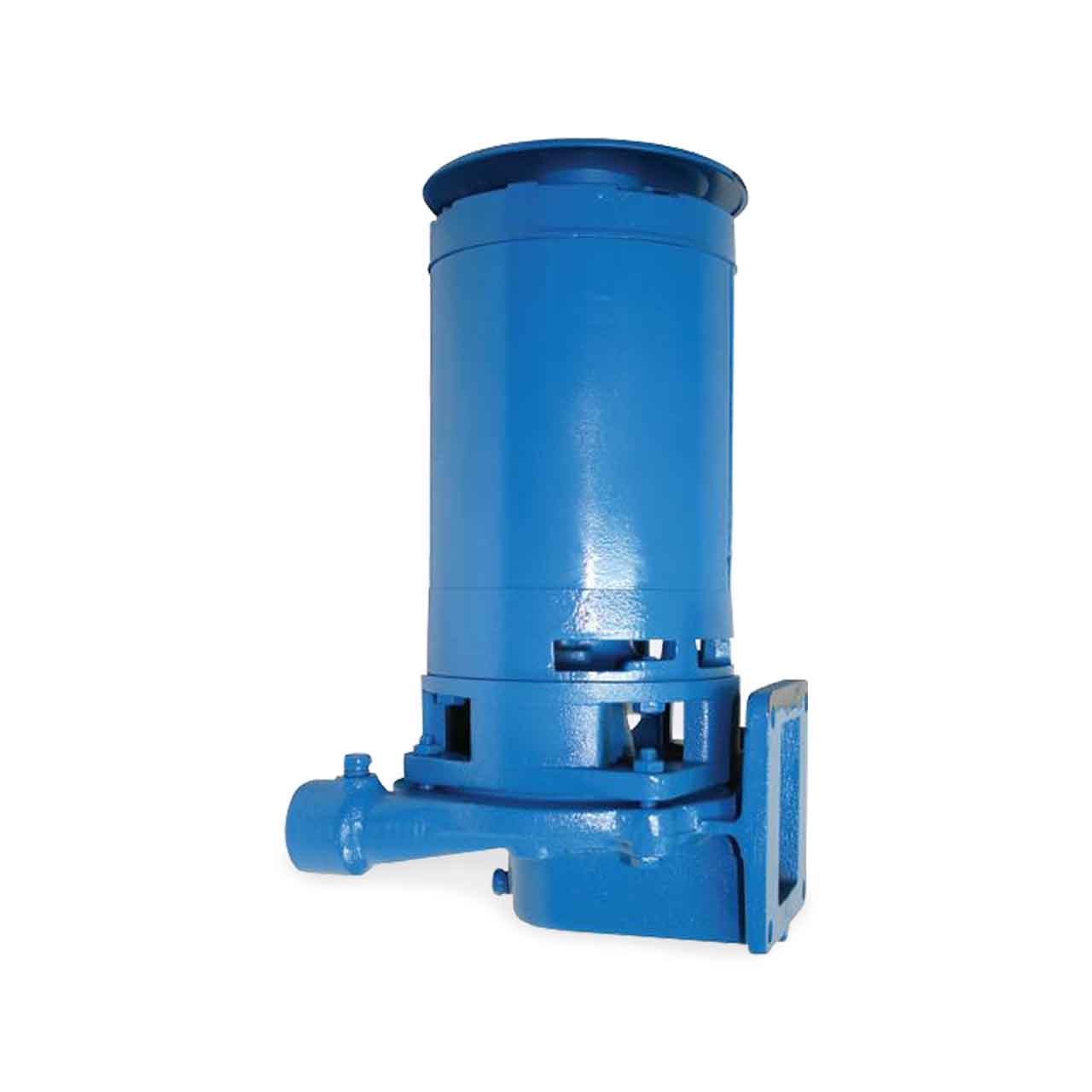

Weinman Condensate Return Systems Product Description

Weinman Condensate Return Units are designed for the automatic return of hot water condensation from radiators and heating coils/ the delivery of those fluids to low and high pressure boilers. Cast Iron or fabricated steel receivers available from 20-150 gallons.

Weinman Condensate Return Systems Typical Application

• Condensate Return Systems
• Boiler Feed

Weinman Condensate Return Systems Features

• Water Gauge
• Drip-Proof (ODP) NEMA Motors
• Top Pull-Out without Disturbing Piping
• Float Switch or Alternator Pre-Wired at Factory
• Heavy Duty Cast Iron or Steel Receiver in a Wide Variety of Sizes
• Compact Design for Small Floor Footprint

See Resources for Links to the Specifications and Pump Curves.

Call customer service for more details and pricing.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Weinman Condensate Return Systems Product Resources

Download Weinman Condensate Return Systems Brochure

Download Weinman Cast Iron Condensate Return Systems Assembly

Download Weinman Fabricated Steel Condensate Return Systems Assembly

Download Weinman Cast Iron Condensate Return Systems Dimensions

Download Weinman Fabricated Steel Condensate Return Systems Dimensions for 250Gal. and Smaller

Download Weinman Fabricated Steel Condensate Return Systems Dimensions for 300Gal and Larger

Download Weinman Condensate Return System Selection Curves, 3500RPM & 1750RPM

Download Weinman Model 4ACV, 3500RPM & 1750RPM Performance Curve

Download Weinman Model 4AEV, 3500RPM & 1750RPM Performance Curve

Download Weinman Model 6ACV, 3500RPM & 1750RPM Performance Curve

Download Weinman Model 6AFV, 1750RPM Performance Curve

Download Weinman Model 6ADV, 3500RPM & 1750RPM Performance Curve

Download Weinman Model 8ACV, 3500RPM & 1750RPM Performance Curve
