VIQUA 2-Log Adenovirus UV Filtration System Description

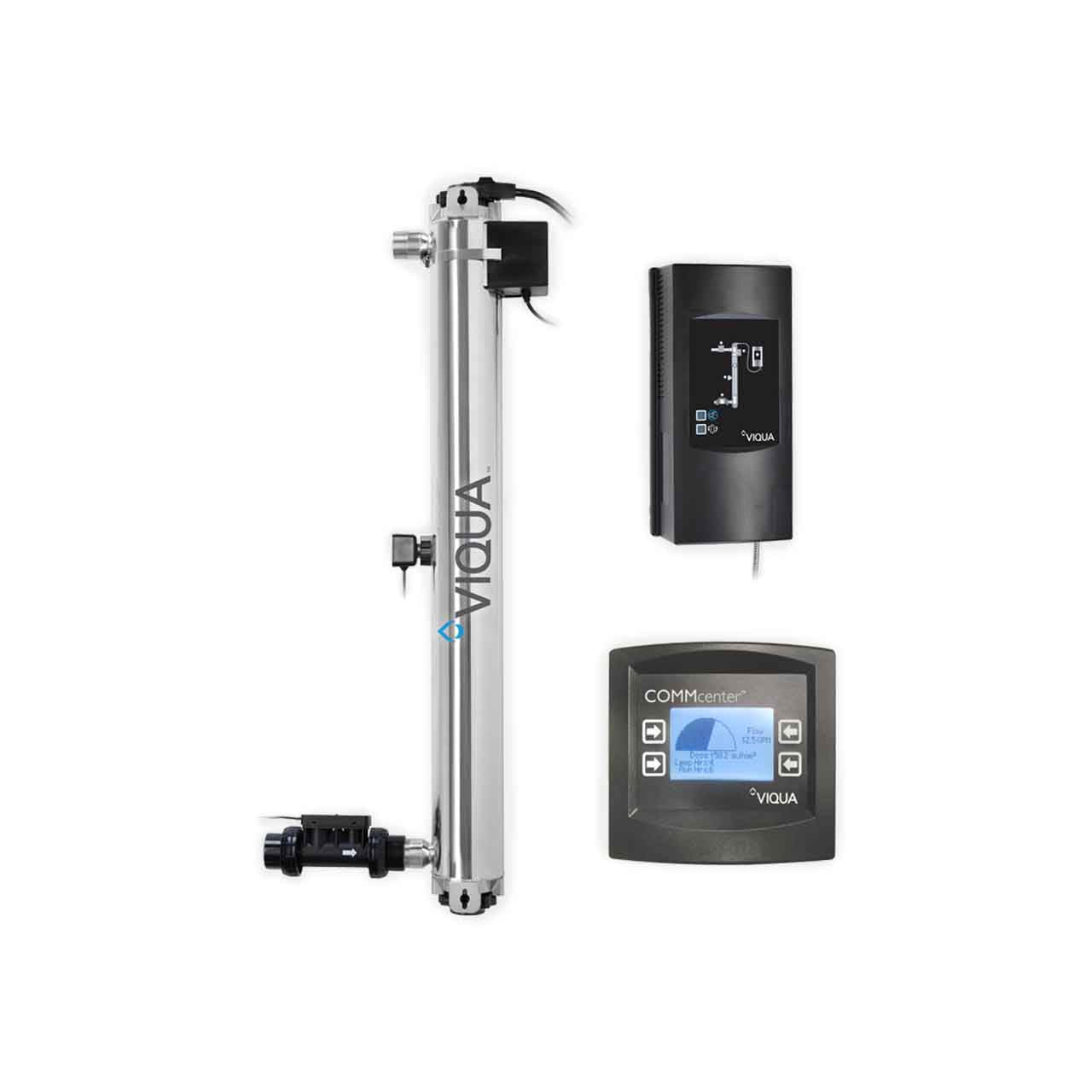

Introducing the PRO24-100 2-Log Adenovirus UV water disinfection system. UV makes complying with the Ground Water Rule and LT2 Regulations a lot easier.

The VIQUA PRO24-100 System provides safe drinking water for small public water systems (PWS), in accordance with state, provincial and federal regulations. As PWS gets smaller, the available capacity for testing, metering and monitoring becomes a challenge. The PRO24-100 is designed to measure and log UV dose and flow and with a four-pointed stepped validation, ensures safety and compliance at all times.

VIQUA 2-Log Adenovirus UV Filtration System Applications

• Churches
• Schools
• Rest Areas
• Bed & Breakfasts
• Community Centers
• Restaurants
• Camps
• Dairy, Swine and Poultry Farms

VIQUA 2-Log Adenovirus UV Filtration System Features & Benefits

• Validated: Fully Validated to the UVDGM Protocol for 2-Log Adenovirus Reduction
• Ease of Maintenance: High-Performance Amalgam UV Lamp, Reduces Maintenance Requirements by Lasting up to 2 Years Replacement
• Reliable: State of the Art UV Sensor Technology to give you Real-Time Performance Feedback, for Added Peace of Mind
• Powerful/Space Saving: Revolutionary Amalgam Lamp Provides 4x the Output of Standard Output Lamps, giving you Compact Single-Lamp Systems that are Half the Size of their Predecessors
• Convenient: Features Countdown Timer with Digital Display and Audible Lamp Change Reminder for Ease of Maintenance
• Reliable: Cool-Touch Fan Technology Helps Reduce the Temperature within the Chamber to Prevent Overheating
• Accessories:
• COMM center - Displays UV Dose, Alarm History, Lamp Hours and Other Performance Parameters
• Includes Dry Contact Connection for External Functionality
• Application: Perfect for Wide Range of Large Homes or Light Commercial Applications Including, Small Businesses, Hospitals, Dentist Offices, etc...
• Included Accessories are the Flow Meter, Flow Restrictor, UV Sensor and Cool Touch Fans
• VERTICAL INSTALLATION IS MANDATORY!

The PRO24-100 is validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Cryptosporidium, Giardia and Adenovirus.

VIQUA PRO24-100 UV Filtration System Specifications

• System: VIQUA PRO-24 2-Log Adenovirus UV Filtration System
• Application: POE (point-of-entry)
• Flow Rate: 24 GPM
• Inlet/Outlet Port Size: 1¼" MNPT x 1" FNPT Combo
• Electrical: 120V
• Power Consumption: 230W
• Lamp and Quartz Sleeve: 602850-103
• Lamp: 602856
• Sleeve: 602976
• Controller: 650709-014

VIQUA 2-Log Adenovirus UV Filtration System Curve
