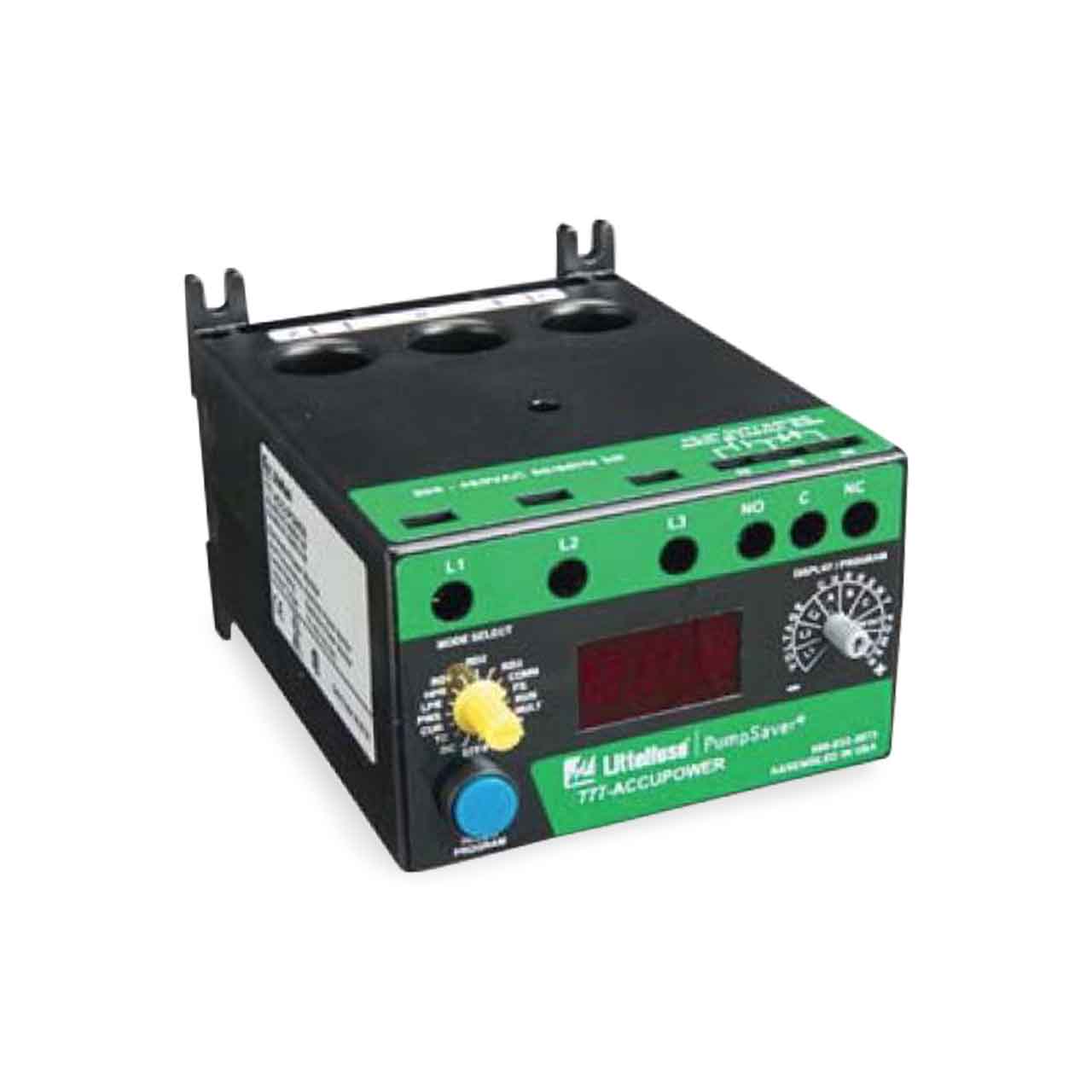

SymCom 777-AccuPower Pump Monitor Overload Relay 190-480V 3-Phase 2-800FLA output pwr.

SymCom 777-AccuPower Pump Monitor Overload Relay 190-480V 3-Phase 2-800FLA output pwr.

Usually ships within 1 week

SKU : MSR777ACCUPOWER

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
$929.82 USD
Shipping calculated at checkout.

Description

Littelfuse 777-AccuPower Pump Monitor Product Description

The 777-AccuPower is a fully-programmable 3-phase motor and pump protection relay. It allows motor hp rating, full load amps, efficiency and power factor to be entered and will accurately calculate motor output power. This is most useful with mag-drive pumps or process applications where the process power is desired over the utility power. Voltage, current and power measurements can be displayed as well as fault information and setpoints. The built-in display simplifies troubleshooting and allows the user to easily and precisely configure setpoints. The 777-AccuPower can be used with the optional COM 4-20 output module to give an analog signal proportional to output shaft power, the RS485MS-2W (for limited Modbus capabilities, and for use with the RM1000/RM2000) remote displays listed in the 777 accessories section.

Littelfuse 777-AccuPower Pump Monitor Typical Application

  • Conveyor Systems
  • HVAC Equipment
  • Saws and Grinders
  • Fan Motors
  • All Pumping Applications With Single-Phase Electric Motors

Littelfuse 777-AccuPower Pump Monitor Technical Details

  • Protects 3-Phase Motors From:
    • Low Power
    • High Power
    • Overload (UL Listed)
    • Jams
    • Single-Phasing
    • Current Unbalance
    • Rapid Cycling
    • Phase Reversal
    • Voltage Unbalance, High Voltage, Low Voltage and Ground Fault (class II) Can Be Enabled Over a Network.
  • Fully Programmable
  • Automatic Reset With Three Separate Restart Delay Timers, or Manual Reset
  • Tamper Guard
  • RS-485 Communications Port (Communications Module Sold Separately)
  • 3-digit LED Diagnostic Display
  • Remote Reset
  • Last Fault Memory
  • UL and cUL Listed
  • CE Compliant
  • CSA Approved
  • Surface or DIN Rail Mount
  • 5-year Warranty
  • Made in USA

Specifications

SymCom 777-AccuPower Pump Monitor Specifications

Line Voltage . . . . . . . . . . . . . . . . . . . . . 200-480VAC

Frequency . . . . . . . . . . . . . . . . . . . . 50/60Hz

Motor Full Load Amp Range . . . . . . . . . . . . . 2-800A (external CTs required over 90A)

TC-Overcurrent Trip Class . . . . . . . 5, 10, 15, 20, 30 (J prefix enables jam protection feature)

Output Contact Rating (SPDT-Form C)

  • Pilot Duty . . . . . . . . . . . . . . . .480VA @ 240VAC
  • General Purpose. . . . . . . . . . . . . . . . . 10A @ 240VAC

Ambient Temperature Rating

  • Operating. . . . . . . . . . . . . . . . . -20° to 70°C (-4° to 158°F)
  • Storage. . . . . . . .-40° to 80°C (-40° to 176°F)

Accuracy Measured Horsepower/Kilowatt

  • Typical . . . . . . . . . . . . . . . . . . . ±3%**
  • Voltage. . . . . . . . . . . . . . . . . . . . . . . ±1%
  • Current . . . . . . . . . . . . . . . . . ±3%(100 amps direct)
  • GF Current. . . . . . . . . . . ±15%
  • Timing . . . . . . . . . . . . . . . . 5% ±1 second

Repeatability

  • Voltage. . . . . . . . . . . . . . . . . . . . . . . . ±0.5% of nominal voltage
  • Current . . . . . . . . . . . . . . . . . . . . . . ±1% (100 amps direct)

Maximum Input Power . . . . . . . . . . . . . 10 W

Class of Protection . . . . . . . . . . . . . IP20, NEMA 1 (finger safe)

Relative Humidity . . . . . . . . . . . . . 10-95%, non-condensing per IEC 68-2-3

Terminal Torque . . . . . . . . . . . .7 in.-lbs.

Electorstatic Discharge (ESD) . . . . . . . . . IEC 61000-4-2, Level 3, 6kV contact, 8kV air

Radio Frequency Immunity (RFI), Conducted . . . . . . . . .IEC 61000-4-6, Level 3 10V/m

Radio Frequency Immunity (RFI), Radiated . . . . . . . . .IEC 61000-4-3, Level 3 10V/m

Fast Transient Burst . . . . . . . . .IEC 61000-4-4, Level 3, 3.5kV input power

Short Circuit Rating . . . . . . . . .100ka

Surge

  • IEC . . . . . . . . . 61000-4-5, Level 3, 2kV line-to-line; Level 4, 4kV line-to-ground
  • ANSI/IEEE. . . . . . .C62.41 Surge and Ring Wave Compliance to a level of 6kV line-to-line
  • Hi-Potential Test . . . . . . . . . . . . . . . . .Meets UL508 (2 x rated V +1000V for 1 minute)
  • Vibration . . . . . . . . . . . .IEC 68-2-6, 10-55Hz, 1mm peak-to-peak, 2 hours, 3 axis
  • Shock . . . . . . . . . IEC 68-2-27, 30g, 3 axis, 11ms duration, half-sine pulse

Safety Marks

  • UL . . . . . . . . . UL508, UL1053
  • CE. . . . . . .IEC 60947-1, IEC 60947-5-1
  • CSA . . . . . . . . . . C22.2

Weight . . . . . . . . . . . . . . . . . . . . . . . . 20.8 oz.

Mounting Method . . . . . . . . . . . . . . . .Surface mount (4 - #8 screws) or DIN rail mount

**On a well balanced system within recommended current range.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse 777-AccuPower Pump Monitor Resources


SymCom 777-AccuPower Product Specifications

Littelfuse 777-AccuPower Installation Bulletin

Littelfuse 777-AccuPower Engineering Specifications
