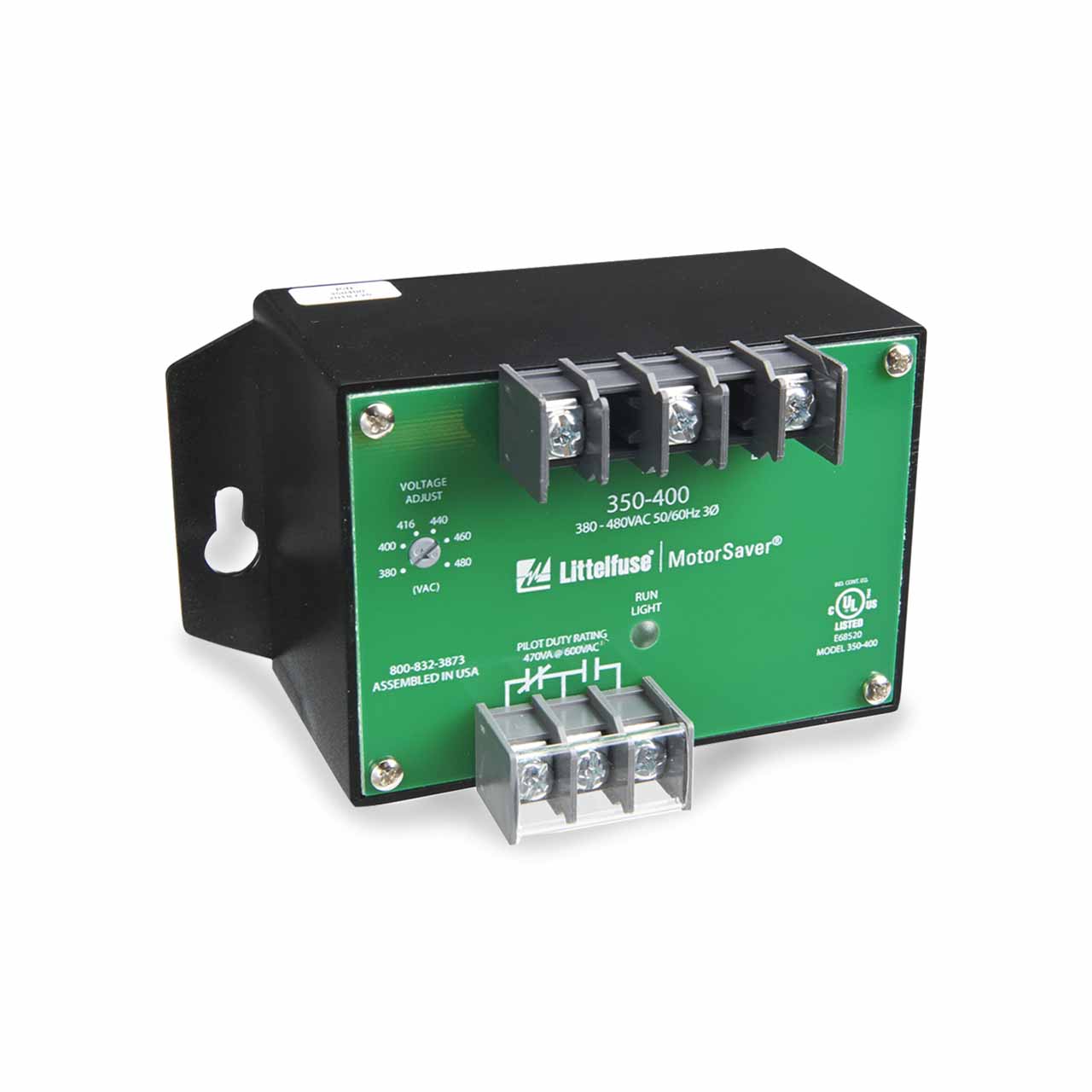

Littelfuse 350-400 Voltage Monitor Product Description
The 350 is a heavy-duty voltage monitor. This product should be used when high current relays or dual contacts are required, or 480V controls are used. Since the 350 uses heavy-duty relays, it comes in fixed voltage range models rather than a dual autoranging version like the Model 250.
The 350-200 has a 15A general purpose contact. The 350-400 provides a SPDT (Form C) relay rated to switch up to 600V, allowing the use of 480V controls, eliminating the need for a control power transformer to step the voltage down to 120-240V. Several DPDT (two Form C contacts) relay models are also available.
The 350 microcontroller-based family of products are low cost yet highly advanced solutions to heavy-duty problems. The 350 includes advanced single LED diagnostics. Five different light patterns distinguish faults and normal operating conditions. Other options such as high voltage trip and adjustable restart delay are available.
Littelfuse 350-400 Voltage Monitor Typical Applications
Fans
Compressors
HVAC
Heat Pumps
Well Pumps
Sump Pumps
Small Conveyor Motors
Oil Rigs
Littelfuse 350-400 Voltage Monitor Features
Protects Motor From:
Phase Loss (single phasing)
Phase Reversal
Low Voltage
Optional High Voltage
Voltage Unbalance
Phase Reversal
Optional 15A @ 240VAC High Current Relay can Switch Heavier Current
Loads.
Universal Range from 190-480 VAC 50/60 Hz Provides the Versatility
Needed to Handle Global Applications.
Bicolor LED Indicator Light is Green in Normal Conditions and Red
During Trip Conditions.
Microcontroller Based Provides Better Accuracy and Higher Reliability
than Analog Designs.
Transient Protected to Meet IEC 1000-4-5:1995 Standards and Stand up
Under Tougher Conditions.
DPDT Relay Provides Two 10A @ 240 VAC General Purpose Relays to Switch
Heavier Loads.
Will Detect Single Phase Condition Regardless of Regenerated Voltages.
DPDT Contacts
Adjustable Restart Delay
Diagnostic LED
UL Listed
CSA Approved
5-Year Warranty
Made in USA
Specifications
Littelfuse 350-400 Voltage Monitor Specifications
3-Phase Line Voltage . . . . . . . . . . . . 380 to 480 VAC
