This Product has been Discontinued, See Replacement VIQUA 650653 Pro20 Ultraviolet Water Purification System 20GPM 120V

Sterilight Platinum Description

The Sterilight Platinum "SPV" series carry the NSF 55, Class A certification. This family has a range of 5 flow rates available from 2.6 to 14.9 USGPM for both POU (point-of-use) & POE (point-of-entry) type applications. All models deliver a 40 mJ/cm ² UV dose at the system's alarm set-point. Each system comes equipped with an advanced electronic controller providing a universal power input (100-250V/50-60Hz) & visual display of system performance & lamp life. The Flow Pace™ sensor allows the system to operate with minimal power requirements & heat build-up.

Sterilight Platinum Features & Benefits

• Electropolished & Passivated
• 316L S.S. Reactor chamber material
• Communication Port
• Diagnostic Check
• Lamp Replacement Indicator
• Safety Interlock
• Dry Contacts
• Flow Restrictor
• Elapsed Time Meter
• Flow Pacing
• UV Intensity Monitor
• NSF/ANSI Standard 55 Class A Validation

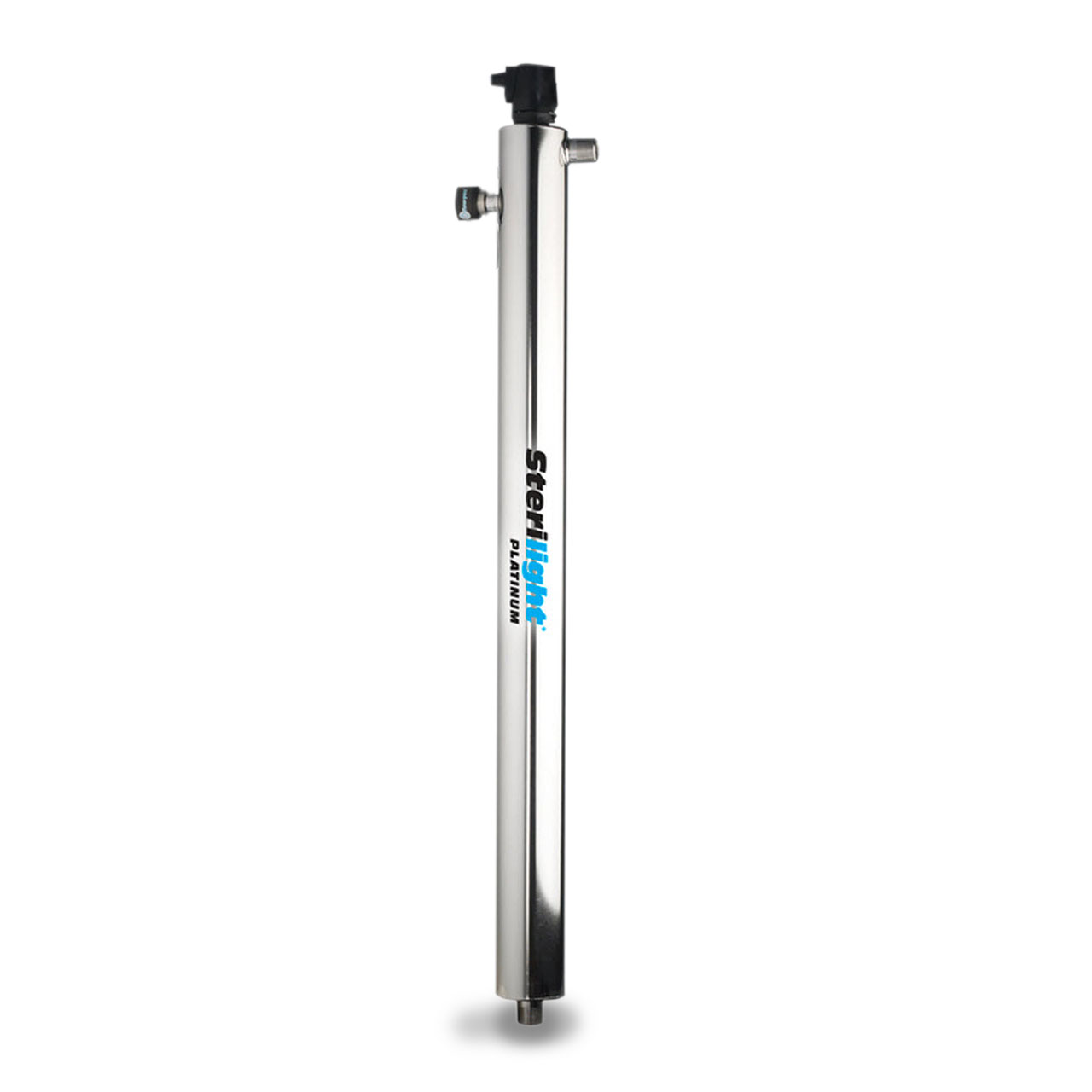

Sterilight Platinum SPV-950 Specifications

• Application: POE (point-of-entry)
• Flow Rate: 14.9 USGPM (56.4 lpm)
• Inlet/outlet port size: 1" MNPT
• Electrical: 100-250V NPT
• Validated: Yes-NSF 55 Class A
• Sterilume-HO UV Lamps: S950RL-HO
• Quartz Sleeves: QS-950
• Ballasts/Controllers: SPC-ICE-HO

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Sterilight Platinum Product Resources

Download Sterilight Platinum Brochure

Download Sterilight Platinum Owner's Manual
