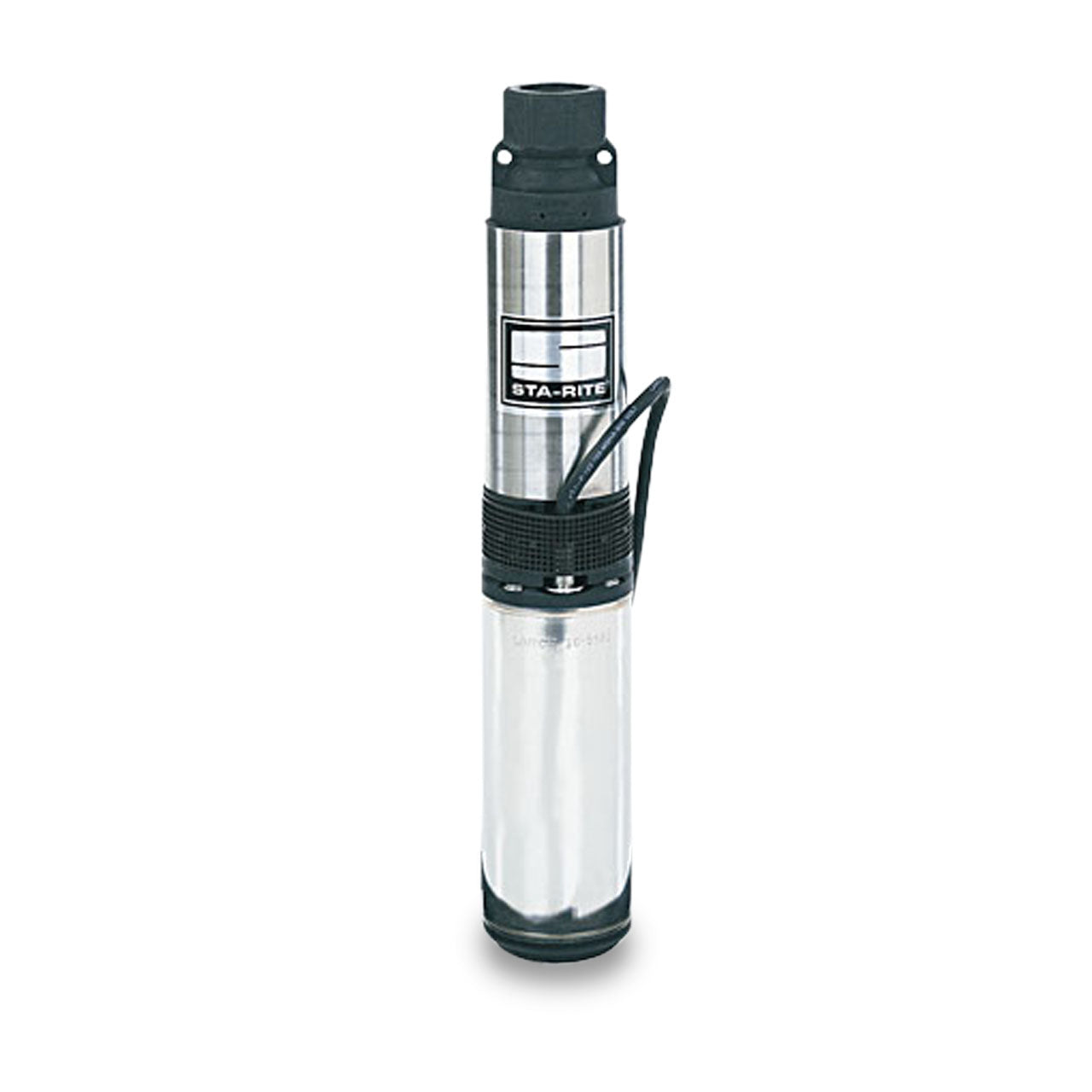

Sta-Rite STEP10 High Head Submersible Effluent Pump 10 GPM 0.5 HP 115V 1PH 10' Cord
Sta-Rite STEP10 High Head Submersible Effluent Pump 10 GPM 0.5 HP 115V 1PH 10' Cord
SKU : SRTSTEP10-02
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Not Available for Purchase - Sta-Rite
Sta-Rite ST.E.P Plus Series Description
The STEP Plus™ 4" submersible filtered effluent pumps in 10, 20, 30 and 50 GPM models offer dependable performance and value for high pressure filtered effluent applications. These STEP Plus pumps will handle "dry run" conditions. The 10,20,30 and 50 GPM are industry standard 3-3/4" in diameter.
Sta-Rite ST.E.P Plus Series Features
- Proven "Floating Impeller" Staging System - Incorporates 1st-in-Class Performance, Sand Handling and Thrust Management Staging System with the Industry Exclusive "Dry-Run" Design Element. Reinforced Engineered Composites and Stainless Steel, Offering High Resistance to Corrosion and Abrasion.
- Discharge - Tested-Tough, Fiberglass-Reinforced Thermoplastic, with Proven Internal Check Valve. Large Wrench Flats and Rope Hole.
- Shell - Stainless Steel Pump Shell Offers High Corrosion Resistance.
- Shaft - Hexagonal 3/8", 300-Grade Stainless Steel Pump Shaft; Offers Generous Impeller Drive Surfaces
- Shaft Bearing - Exclusive Self-Lubricating Nylatron Bearing Resists Wear Surface from Sand.
- Motor Bracket - Tested-Tough, Fiberglass-Reinforced Thermoplastic; Incorporates and Integral Suction Screen.
Specifications
Specifications
Sta-Rite STEP10 Plus Series Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 12.0
- MAXIMUM HEAD: 250'
- MAXIMUM CAPACITY: 17 GPM
- DISCHARGE PIP SIZE: 1-1/4" Fiberglass-Reinforced Thermoplastic
- MAXIMUM SOLIDS HANDLING SIZE: 1/8"
- IMPELLER TYPE: Engineered Composite
- CORD LENGTH: 10' Type 600 Volt "SOOW" or 300 Volt "SJOW"
- BODY CONSTRUCTION: Stainless Steel
Sta-Rite ST.E.P Plus Series Pump Curve
