THE STA-RITE P133 SERIES HAS BEEN DISCONTINUED BY THE MANUFACTURER. PLEASE CLICK ON THE LINK BELOW FOR THE RECOMMENDED REPLACEMENT

MYERS MCSP3 CLICK HERE

(similar pump but under a different brand)

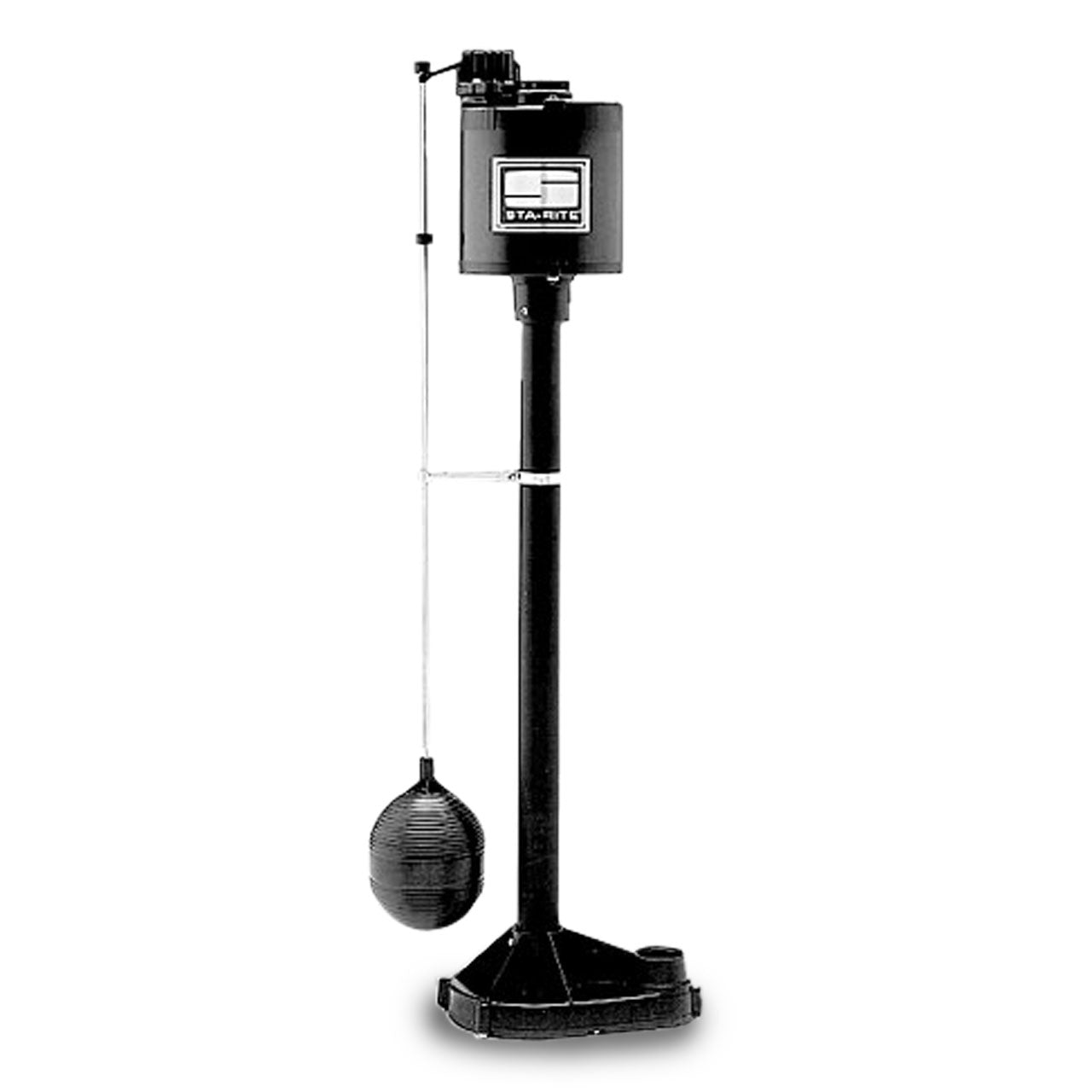

Sta-Rite P Series Description

The Sta-Rite P Series pedestal design is engineered for the easy installation and replacement of most other brands of pedestal pumps. The P133 Series has a thermoplastic base while the PC133 series has a cast iron base with stainless steel column.

Sta-Rite P Series Specifications

• BODY CONSTRUCTION: Base: High-impact corrosion resistant engineered resin or rugged cast iron (depending on model)
• HORSEPOWER: Available in 1/3 HP
• MAXIMUM HEAD: To 22'
• FLOW AT 10' LIFT: 40 GPM
• SWITCH TYPE: Vertical - adjustable
• SWITCH 'ON' LEVEL: 11.5"
• SWITCH 'OFF' LEVEL: 2.5"
• MOTOR: 1/3 HP, 1750 RPM, PSC with thermal overload - air cooled
• MINIMUM SUMP DIAMETER: 10"
• IMPELLER: Thermoplastic, open vein type
• DISCHARGE SIZE: 1-1/4" FNPT (P13316V), 1-1/2" FNPT (PC13316V)
• MAXIMUM SOLIDS HANDLING SIZE: 3/8"
• AMP DRAW: 3.5 full load amps
• POWER CORD: 6'
• VOLTAGE: 115 VOLT, 1PH, 60 Hz
• MAXIMUM LIQUID TEMPERATURE: 77 degrees F (25 degrees C)

Sta-Rite P Series Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Sta-Rite P Series Product Resources

Download Sta-Rite P Series Specification

Download Sta-Rite P Series Manual
