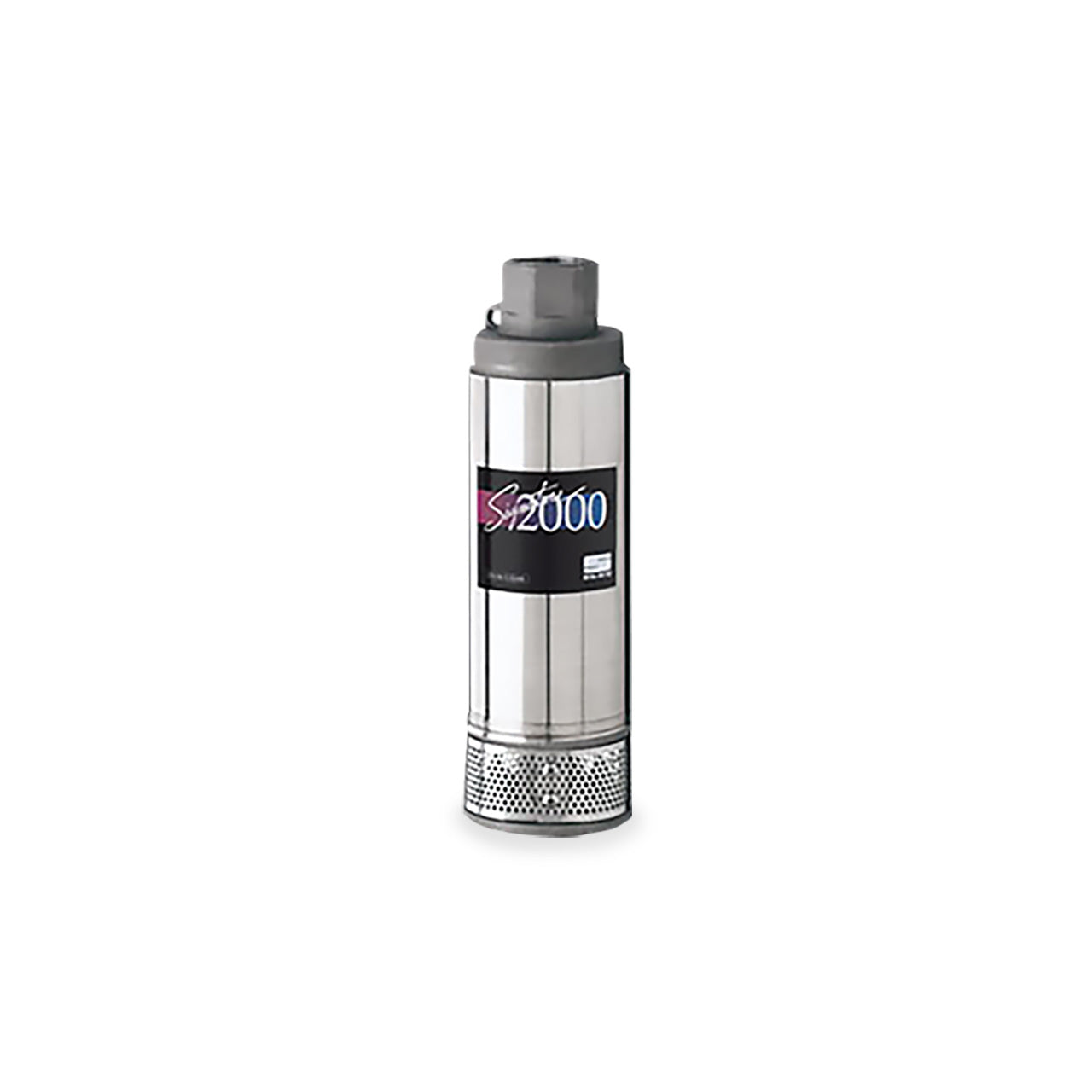

Sta-Rite L7P4EHL HS Series Submersible Pump End 7 GPM 1.0 HP
Sta-Rite L7P4EHL HS Series Submersible Pump End 7 GPM 1.0 HP
SKU : SRTL7P4EHL
In Stock Quantity:0
:
Brand
:
Regular price
$1,328.61 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Sta-Rite HS Series Submersible Pump End Description
Precision-Engineered, high-quality, rugged Signature 2000® Stainless Steel Series Pumps deliver efficient, dependable performance even in rough, aggressive water. Heads to 1,950 feet and capacities to 65 GPM. Built to deliver long-term, trouble-free service. Floating impeller design resists sand and reduces sand locking. These pumps feature the proven SignaSeal™ staging system.
Sta-Rite HS Series Submersible Pump End Applications
Water Systems... for residential, industrial, commercial, multiple housing and farm use.
Sta-Rite HS Series Submersible Pump End Features
- Proven Staging System: Our Proven SignaSeal Staging System Incorporates a Harder-Than-Sand Ceramic Wear Surface that when Incorporated with our Floating Impeller Design, Greatly Reduces Problems with Abrasives, Sand Lock-Up and Running Dry.
- Discharge: Corrosion-Resistant 300 Grade Stainless Steel for Durability in Aggressive Water. Large Octagon Wrench Area for Ease of Installation.
- Discharge Bearing: Self-Lubricating Nylatron Bearing Resists Wear from Sand.
- Intake: Corrosion-Resistant 300 Grade Stainless Steel for Durability in Aggressive Water.
- Shaft: Positive Drive from 7/16" Hexagonal Heavy-Duty 300 Grade Stainless Steel.
- Coupling: Stainless Steel Press Fit to Pump Shaft. Couples to all Standard NEMA Motors.
- Shell: Highest Grade, Heavy-Walled Corrosion-Resistant Stainless Steel. Threaded for Easy Servicing.
- Hardware: All Screws, Washers and Nuts are Corrosion-Resistant 300 Grade Stainless Steel.
- Check Valve: Durable Internal Spring-Loaded Check Valve.
- Cable Guard: Corrosion-Resistant Stainless Steel Guard Protects Motor Leads. Tapered Ends Prevent Pump from Catching on Well.
- Intake Screen: Corrosion-Proof.
- Pentek® XE Series™ Motor: 2 and 3 Wire NEMA Standard all Stainless Construction Water-Filled Motors.
Specifications
Specifications
Sta-Rite L7P4EHL HS Series Pump End Specifications
- DISCHARGE SIZE: 1.25” FNPT
- NOMINAL FLOW RATING: 7 GPM
- HORSEPOWER: 1.0 HP
- MAXIMUM CAPACITY: 12 GPM
- MAXIMUM HEAD: 610’
- STAGES: 18
- IMPELLER DESIGN: Floating Stack
- IMPELLER MATERIAL: Acetal
- BODY MATERIAL: Stainless Steel
Sta-Rite HS Series Submersible Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Sta-Rite HS Series Submersible Pump Product Resources
Download Sta-Rite HS Series Submersible Pump Catalog
