Sta-Rite HT750120T Submersible High Temperature Pump 0.5 HP 115V 1PH
Sta-Rite HT750120T Submersible High Temperature Pump 0.5 HP 115V 1PH
SKU : SRTHT750120T
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
THE STA-RITE HT750 SERIES HAS BEEN DISCONTINUED BY THE MANUFACTURER. PLEASE CLICK ON THE LINK BELOW FOR THE RECOMMENDED REPLACEMENT
MYERS S50HTPC1 CLICK HERE
(similar pump but under a different brand)

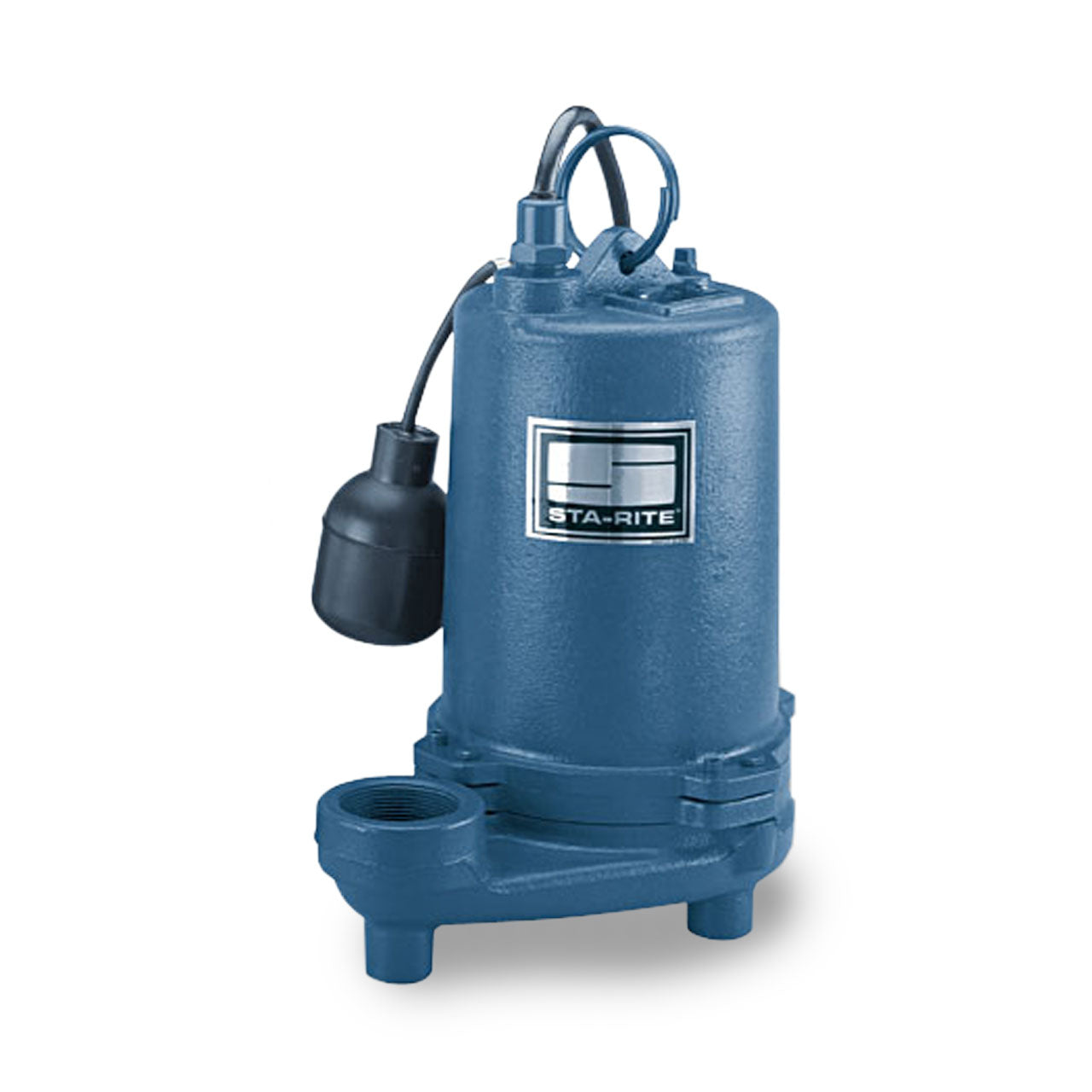

Sta-Rite HT7 Series Description
The HT7 Series pump is a rugged, submersible cast iron pump with a non-clog, semi-open impeller. It has solids handling capability to 3/4" and is designed to handle liquids to 200° F (93° C)
MODEL: PW217-280 CONTROL PANEL REQUIRED (SOLD SEPARATELY) - CLICK THIS LINK
Specifications
Specifications
Sta-Rite HT7 Series Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1/3 HP
- MAXIMUM HEAD: Up to 50'
- FLOW AT 10' LIFT: 100 GPM
- SWITCH TYPE: Teathered float switch included
- MOTOR: 1/2 HP, 3450 RPM, PSC with thermal overload
- SHAFT SEAL: Type 6A or equal, Bunea-N elastomers, silicon carbide sealing faces, stainless steel metal parts
- BEARINGS: Ball type, oil lubricated
- IMPELLER: Cast iron
- DISCHARGE SIZE: 2" FNPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- AMP DRAW: 12 full load amps
- POWER CORD: 20'
- VOLTAGE: 115 VOLT, 1PH, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 200 degrees F
Sta-Rite HT7 Series Pump Curve
