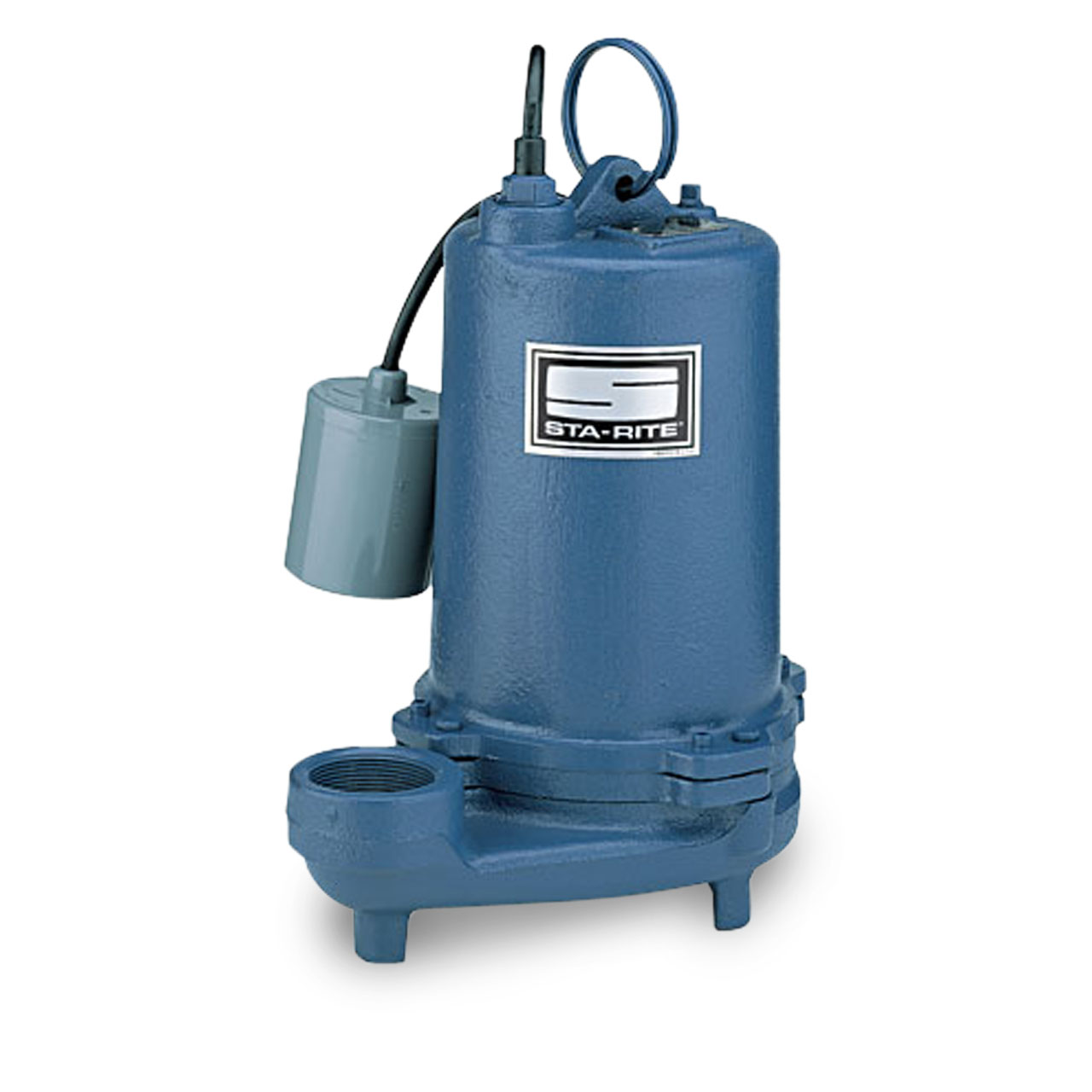

Sta-Rite EH7100220M Submersible Effluent Pump 1.0 HP 230V 1PH 20' Cord Manual
Sta-Rite EH7100220M Submersible Effluent Pump 1.0 HP 230V 1PH 20' Cord Manual
SKU : SRTEH7100220M
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
THE STA-RITE EH7100 SERIES HAS BEEN DISCONTINUED BY THE MANUFACTURER. PLEASE CLICK ON THE LINK BELOW FOR THE RECOMMENDED REPLACEMENT
MYERS P102 CLICK HERE
(same exact pump but under a different brand)
Sta-Rite EH Series Description
The Sta-Rite EH7 Series pump is best for high head effluent installations, the EH7 Series pump is a rugged, submersible cast iron pump with a non-clog, semi-open impeller, solids handling capability to 3/4", and head capabilities up to 90 feet.
Sta-Rite EH Series Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 1/2 and 1 HP
- MAXIMUM HEAD: 1/2 HP: 70', 1 HP: 90'
- FLOW AT 10' LIFT: 1 HP: 100 GPM
- SWITCH TYPE: Float not included with Manual pump models
- MOTOR: 1/2 or 1 HP, PSC with thermal overload protection
- SHAFT SEAL: Dual Type 6A or equal, Bunea-N elastomers, carbon andceramic sealing faces, stainless steel metal parts
- BEARINGS: Ball type, oil lubricated
- IMPELLER: Cast iron
- DISCHARGE SIZE: 2" FNPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- POWER CORD: 20'
- VOLTAGE: 115 V, 230 V 1PH, 208-230 V or 460 V 3 Phase, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 130 degrees F (55 degrees C)
Sta-Rite EH Series Pump Curve
Sta-Rite EH Series Product Resources
Specifications
Specifications
