SJE-Rhombus VS21-7.0-N1 VARIOspeed N1 Control Panel
SJE-Rhombus VS21-7.0-N1 VARIOspeed N1 Control Panel
SKU : SJEVS2170N1
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED SEE SUGGESTED REPLACEMENT: Endura Control Panels
SJE-Rhombus VARIOspeed® N1 Control Panel Description
The VARIOspeed® N1 Control Panel controls a three phase pump in constant pressure control applications.
The VARIOspeed® N1 control panel is designed to control a three phase pump in constant pressure control applications, including booster pump, deep well submersible pump and irrigation pump applications.
It features a variable frequency drive and display in a NEMA 1 enclosure. As flow and head conditions change in the pumping systems, the VFD is able to automatically control the pump speed and maintain a constant discharge pressure. The desired set pressure is entered on the display inside the control panel. The pressure transducer measures the pump discharge pressure.
Not for use with sewage pumps.
SJE-Rhombus VARIOspeed® N1 Control Panel Applications
- Submersible Deep Well Pumps
- Booster Pumps
- Irrigation Pumps
SJE-Rhombus VARIOspeed® N1 Control Panel Features
- VARIOspeed N1 Panel Components:
- NEMA 1 Enclosure for Indoor Use with Locking Latch
- Vents for VFD Cooling
- Variable Frequency Drive
- Display Features:
- 4 Line/20 Character Display
- Rotary/Push Button for Menu Navigation and Editing
- Left Arrow Button
- ESC Button
- Run Indicator LED
- Fault Indicator LED
- Off/Auto Selector Switch
- Features:
- Run Dry Protection
- High Pressure Protection
- System Fault Log
- Entire Control System (panel and sensor) is UL Listed to Meet and/or Exceed Industry Safety Standards
- Dual Safety Certification for the United States and Canada
- Standard Package Includes a 0-200 PSI Pressure Transducer
- Five-Year Limited Warranty on Control Panel
- One-Year Limited Warranty on Transducer
Specifications
Specifications
SJE-Rhombus VS21-7.0-N1 Specifications
- VOLTAGE: 240V
- HORSEPOWER: 1.5 HP
- OUTPUT AMPS: 7.0
- CONTROL:
- PID Control
- Adjustable Electronic Overload
- Auto Start on Pressure Drop (adjustable)
- Auto Stop on Low Hz (No-Flow - Sleep Mode)
- Pressure Transducer: 0-200 PSI (included) 1/4" NPT Male, NEMA 4X Rated with 20 ft Cable
- Environmental:
- Operating Temperature: 14ºF to 104ºF (-10ºC to 40ºC)
- Storage Temperature: -4ºF to 131ºF (-20ºC to 55ºC)
- Altitude: Maximum of 3280 ft (1000m) Above Sea Level

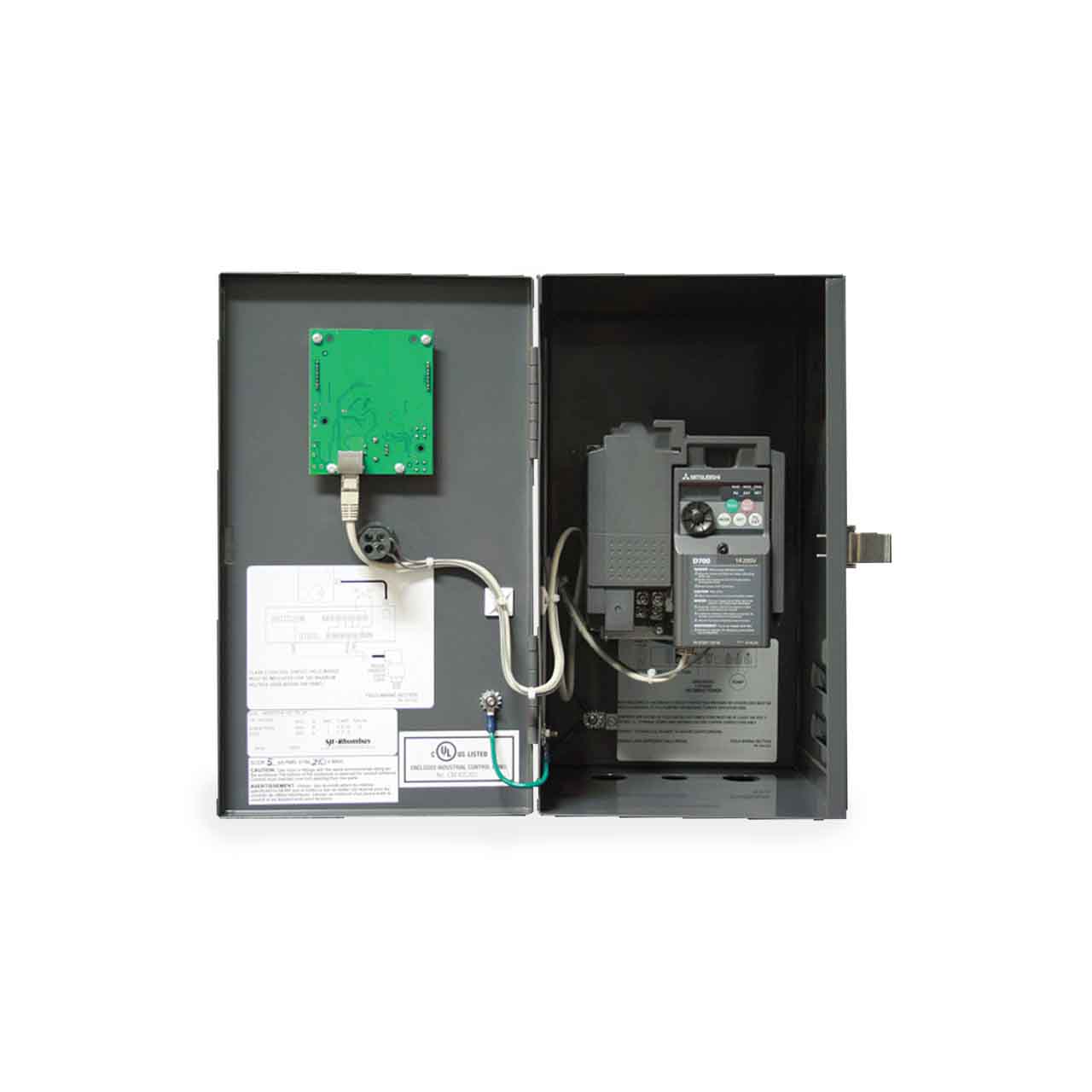

SJE-Rhombus Variable Frequency Drive Controller in NEMA 1 Enclosure Components
- ENCLOSURE (up to 5 HP): Measures 14x8x8 Inches Steel NEMA 1 for Indoor Use with Locking Latch
ENCLOSURE (above 5 HP): Measures 18x10x10 Inches Steel NEMA 1 for Indoor Use with Locking Latch.
NOTE: Voltage and amp range selected may change component layout in enclosure. - VENTS: for VFD Cooling.
- VARIABLE FREQUENCY DRIVE
- VFD DISPLAY:
- 4 Line / 20 Character Display
- Rotary/Push Button for Menu Navigation and Editing
- Left Arrow Button
- ESC Button
- Run Indicator LED
- Fault Indicator LED
- Off/Auto Selector Switch
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus VARIOspeed® N1 Control Panel Product Resources
SJE-Rhombus VARIOspeed N1 Control Panel Catalog Page
