SJE-Rhombus Ultra Nator Alternating Pump Control 120V

SJE-Rhombus Ultra Nator Alternating Pump Control 120V

Usually ships within 4 days

SKU : CP-ULT10

In Stock Quantity:0

:
Brand : SJE Rhombus
Shipping calculated at checkout.

Description

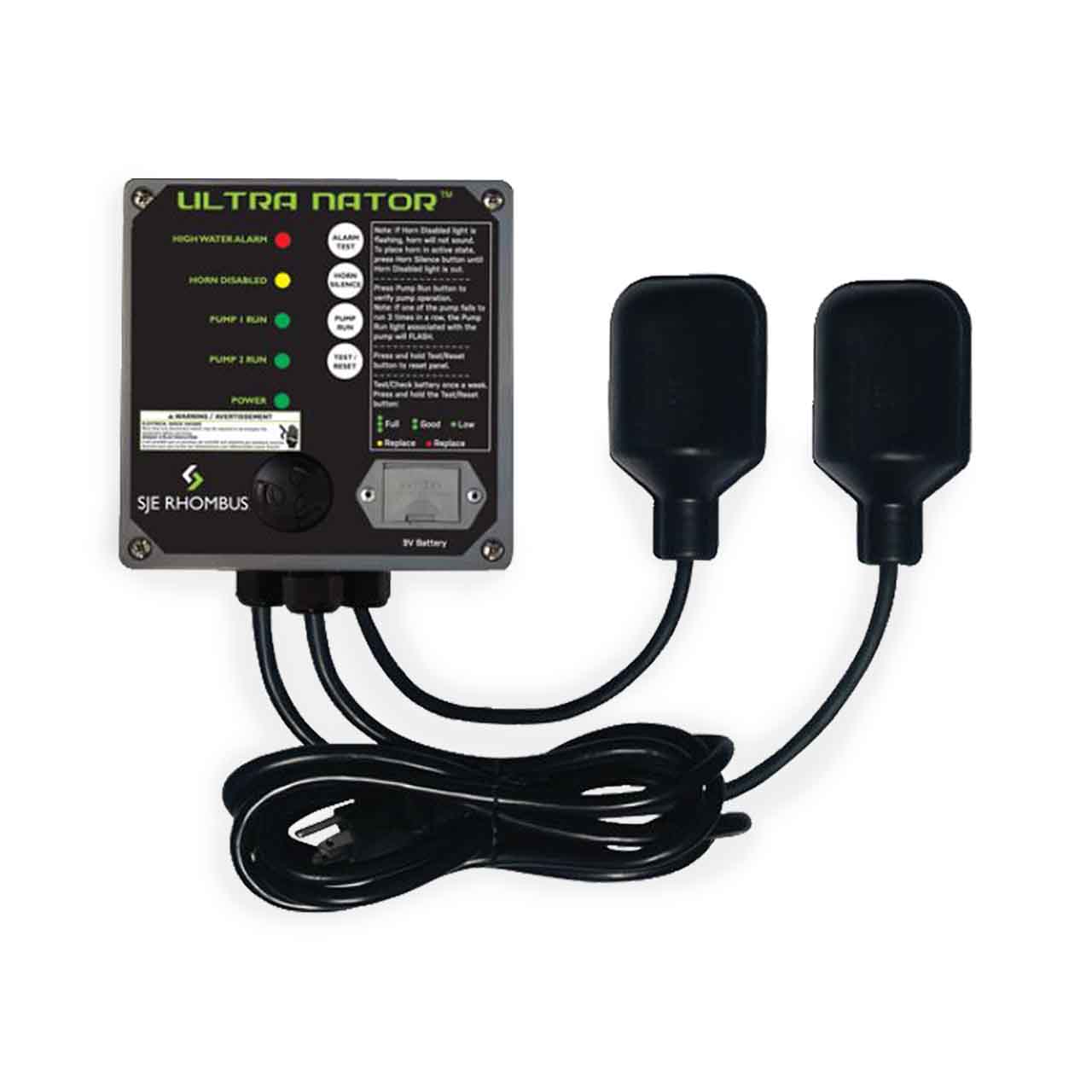

Ultra Nator™ System

Designed to control two 120V single phase pumps using two receptacles for easy pump connections in indoor duplex pump applications. No wiring needed.

The plug and play design features a factory-installed 10' power cord, floats and pump receptacles (no field wiring required to quickly connect two sump pumps).

The new battery back-up alarm system maintains the alarm function if primary power is lost; you can quickly test the battery condition with the battery test function. The new pump failure indicator alerts you to potential pump problems, such as non-operating pumps, problems with outflow plumbing, or if the water inflow is greater than pumping capacity. The reference chart on the panel front helps the operator diagnose problems quickly.

In normal operation, the pump will alternate based on the pump switch level. If an alarm condition occurs (top float activates), the alarm light and horn turn on. The pump in use will turn off and the other pump will turn on. Pumping will continue until the pump switch deactivates (bottom float).

NOTE: The Ultra Nator™ will only run one pump at a time.

Specifications

SJE-Rhombus Ultra Nator™ Alternating Plug-In Pump Control Panel Specifications

  • ENCLOSURE: 6 x 6 x 4 inches NEMA 1 Thermoplastic for Indoor Use
  • VOLTAGE: 120 VAC
  • OUTPUT CONTACT RATING: 4 Amp
  • RECEPTACLES: 120 VAC NEMA Type 5-15
  • ALARM HORN: 95 Decibels at 2 Feet (0.61 meters)
  • MAXIMUM CURRENT: 15 Amps

SJE-Rhombus Ultra Nator™ Alternating Plug-In Pump Control Panel Features

  • NEMA 1 Rated for Indoor Use
  • 120AC Voltage - Primary: 120 VAC, 60Hz; Secondary: 9 VDC
  • If Primary Power Fails, the Alarm System Continues to Work Due to Battery Back-Up Feature, Battery Backup Power - 9VDC (battery not included) (Battery backup will not run pumps)
  • Pump Failure Indicator to Alert of Potential Pump Problems
  • Red LED High Water Indicator
  • Amber LED Horn Disables Indicator
  • Green LED Pump Run Indicators (pump 1, pump 2)
  • Green LED Power on Indicator
  • Audible and Visual High Water Alarm.
  • Entire System is UL and cUL Listed to Meet and/or Exceed Industry Safety Standards.
  • Alarm Test Press Button Switch
  • Pump Run Press Button Switch
  • Horn Silence Press Button Switch
  • Test-Reset Press Button Switch
  • Auxiliary Contacts (normally open and normally closed).
  • Five-Year Limited Warranty



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

SJE-Rhombus Ultra Nator Alternating Plug-In Pump Control Panel Resources


SJE-Rhombus Ultra Nator control panel - Single Phase Alternating Catalog Page

SJE-Rhombus Ultra Nator control panel - Single Phase Alternating Features

SJE-Rhombus Ultra Nator control panel - Single Phase Alternating Installation Instructions
