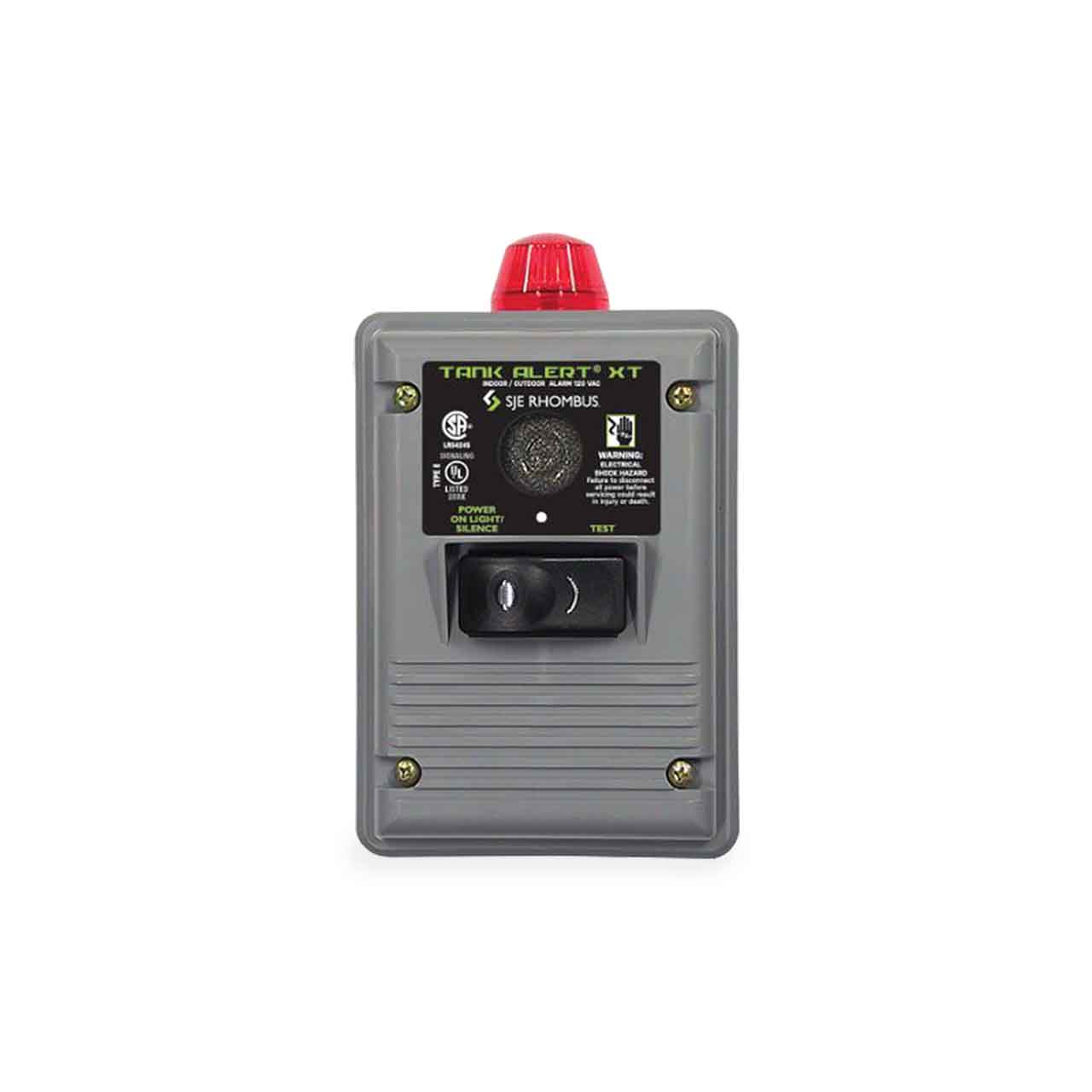

SJE-Rhombus TAXT-01X Tank Alert XT 120V No Float
SJE-Rhombus TAXT-01X Tank Alert XT 120V No Float
SKU : SJE1005141
In Stock Quantity:2
:
Brand
:
Regular price
$211.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus Tank Alert XT Alarm System Description
Versatile, Indoor or Outdoor Liquid Level Alarm System
Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.
The Tank Alert® XT indoor/outdoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.
If any alarm condition occurs, the horn sounds and red alarm beacon activates. The horn can be turned off, but the alarm beacon remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.
SJE-Rhombus Tank Alert XT Alarm System Typical Application
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage
- Agricultural
- Other Non-Potable Water Applications
SJE-Rhombus Tank Alert XT Alarm System Features
- Enclosure Meets Type 3R Water-Tight Standards
- Automatic Alarm Reset, Horn Silence, Switch and Alarm Test Switch
- Alarm Horn Sounds at 85 Decibels at 10 Feet (3 meters)
- Alarm System (when installed on separate circuit) Operates Even if Pump Circuit Fails
- UL Listed
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Tank Alert XT Alarm System Specifications
- VOLTAGE: 120 VAC, 50/60 Hz
- ALARM ENCLOSURE: 6.5 x 4.5 x 3 inches (16.51 x 11.43 x 7.62 cm), Indoor-Outdoor, Weatherproof, Thermoplastic, Meets Type 3R Water-Tight Standard.
- ALARM HORN: 85 Decibels at 10 feet (3 meters), Meets Type 3R Water-Tight Standard as Installed by Factory.
- ALARM BEACON: UL Listed, Type 4X Beacon Assembly.
- TEST/SILENCE SWITCH: Certified to IP66 and IP68 Standards.
- AUXILIARY ALARM CONTACTS (OPTIONAL): 120 VAC, 5 Amps Max, 50/60 Hz
- PRE-MOUNTED TERMINAL BLOCK (OPTIONAL): 20 Amps, 120/230 VAC
- POWER CORD: (optional) 6 foot (1.8 meters) Cord with 120 VAC Plug.
- FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp.
- CABLE: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74 Inch Diameter x 4.83 Inch Long (7cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C).
- MAXIMUM WATER DEPTH: 30 feet (9 meters), 13 psi
- ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert XT Alarm System Product Resources
SJE-Rhombus Tank Alert XT Alarm System Catalog Page
SJE-Rhombus Tank Alert XT Alarm System Features & Benefits
SJE-Rhombus Tank Alert XT Alarm System Installation Instructions
SJE-Rhombus Tank Alert XT Alarm System Terminal Block Wiring Instructions
SJE-Rhombus Tank Alert XT Alarm System Auxiliary Contacts Wiring Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
