SJE-Rhombus Tank Alert TA AB DUO-01X Alarm System (120 VAC - no float switch)
SJE-Rhombus Tank Alert TA AB DUO-01X Alarm System (120 VAC - no float switch)
SKU : SJE1052956
In Stock Quantity:0
:
Brand
:
Regular price
$179.29 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus Tank Alert AB DUO Alarm System Description
The Tank Alert® AB DUO (Auto reset, Battery backup, DUO alarm inputs) indoor alarm system monitors two liquid level conditions in one easy-to-install alarm for lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, filter and other waste applications.

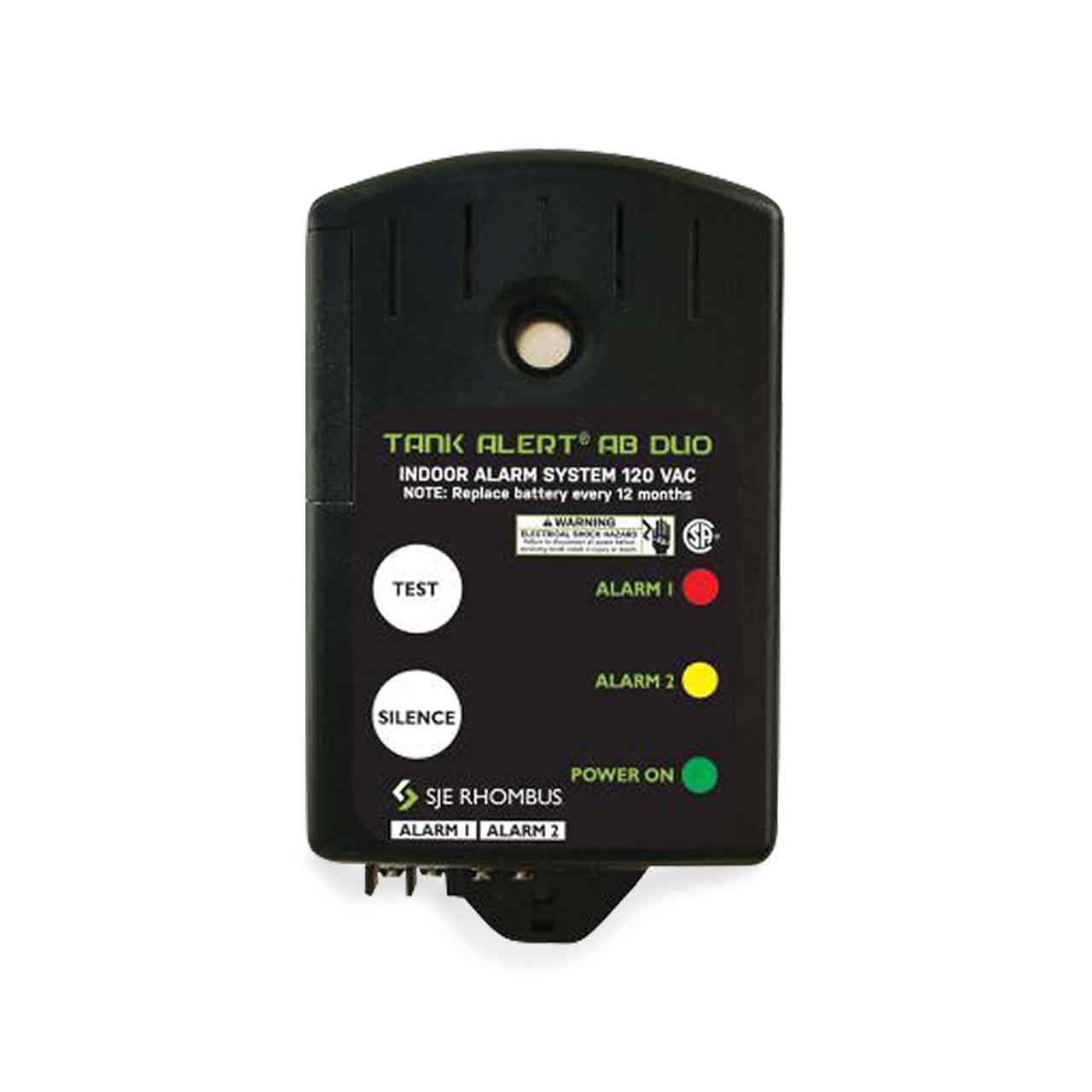

The sleek design of the alarm features a user friendly touch pad with colored LED indicators for easy visual detection. The alarm horn and red LED indicator activate for a high level alarm condition. The alarm horn and yellow LED indicator activate for alarm 2. The green LED indicates 120V primary power to the alarm. Once the condition is cleared, the alarm automatically resets.
SJE-Rhombus Tank Alert AB DUO Alarm System Typical Application
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage
- Agricultural
- Other Non-Potable Water Applications
SJE-Rhombus Tank Alert AB DUO Alarm System Features
- NEMA 1 Enclosure, Designed for Ease of Installation, Rated for Indoor Use
- Automatic Alarm Reset
- Red "Alarm 1" Light, Yellow "Alarm 2" Light and Green "Power On" Light, Alarm "Test" Switch and Horn "Silence" Switch.
- Alarm Horn Sounds at 87 Decibels at 10 Feet (3 meters)
- Can be Used With any Switching Mechanism Rated to Include 1 Amp, 9 VDC Load
- If Primary Power Fails, the Alarm System Continues to Work Due to Battery Backup Feature. (Battery not included)
- Switching Mechanism Operates on Low Voltage and is Isolated from the Power Line to Reduce the Possibility of Shock
- Low Battery Chirp
- Easy Access Battery Compartment
- External Terminal Block for Easy Float Switch Installation
- UL Listed
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus TA AB DUO-01H AB Duo Alarm System Specifications
- VOLTAGE FOR 120V MODEL:
- Primary: 120 VAC, 60 Hz, 2.4 Watts Max. (alarm condition)
- Secondary: 9 VDC
- BATTERY BACKUP POWER: 9 VDC
- ALARM ENCLOSURE: 6 x 4 x 2.25 inches (15.24 x 10.16 x 5.71 cm), NEMA 1 Plastic
- ALARM HORN: 87 Decibels at 10 feet (3 meters)
- POWER CORD: 6 feet (1.8 meters)
- FLOAT SWITCH CONNECTION TERMINAL: For Float Switch Connection Only. Do Not Apply Power ( Voltage across terminals is 8-9 VDC)
- FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp
- Cable: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- Float: 2.74 inches Diameter x 4.83 inches Long (7.0 x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Water Up to 140°F (60°C).
- AUXILIARY ALARM CONTACTS (Optional):
- Voltage: 120 VAC
- Current: 0.5 Amps Maximum
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert AB Duo Alarm System Product Resources
SJE-Rhombus Tank Alert AB Duo Alarm System Catalog Page
SJE-Rhombus Tank Alert AB Duo Alarm System Features & Benefits
SJE-Rhombus Tank Alert AB Duo Installation Instructions
SJE-Rhombus Tank Alert AB Duo Alarm System Auxiliary Contacts Wiring Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
