SJE-Rhombus Tank Alert I Alarm System 120 VAC w/15’ SJE SignalMaster High Level
SJE-Rhombus Tank Alert I Alarm System 120 VAC w/15’ SJE SignalMaster High Level
SKU : SJE1007457
In Stock Quantity:2
:
Brand
:
Regular price
$198.57 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

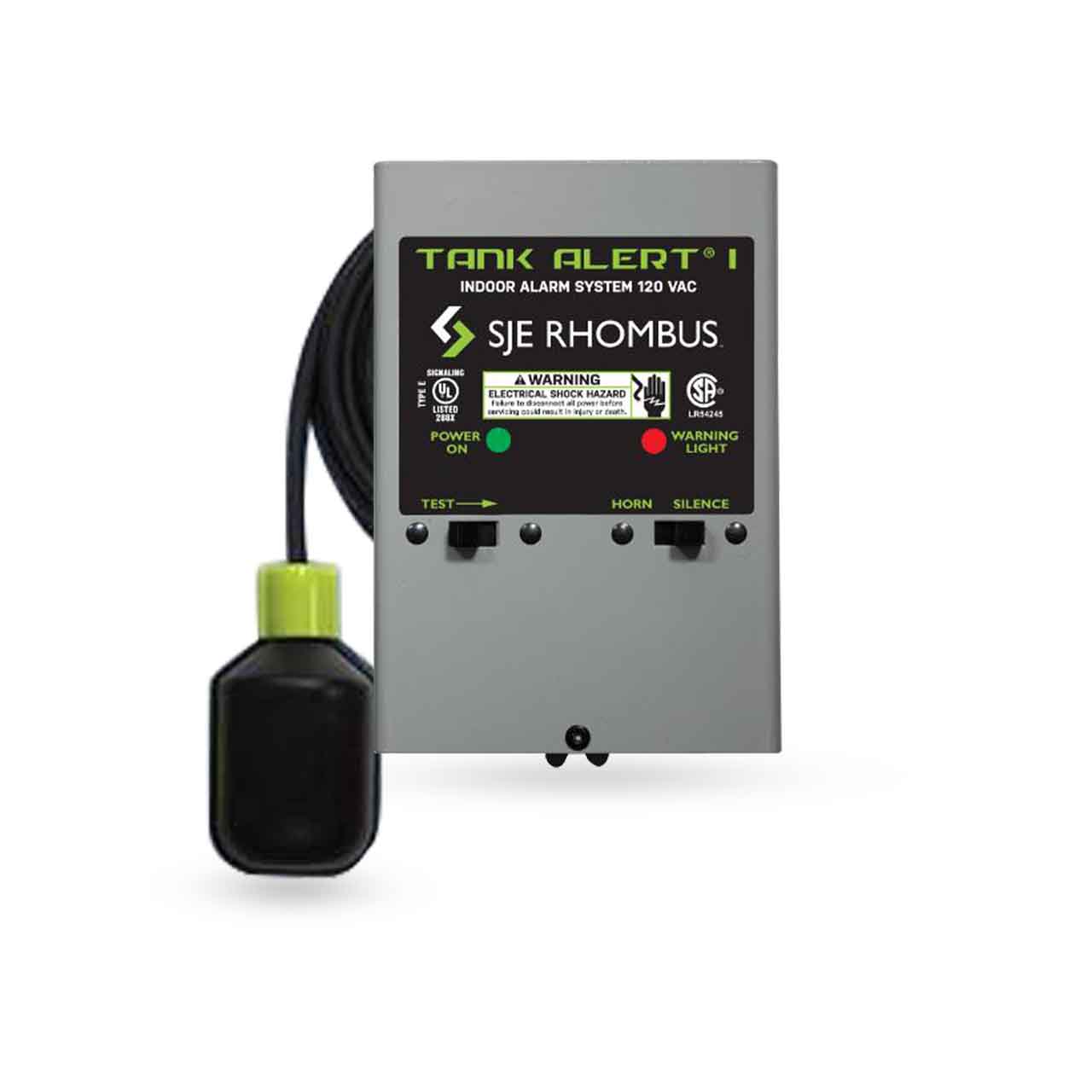

SJE-Rhombus Tank Alert I Alarm System Description
This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other water applications.
The Tank Alert® I alarm system can serve as a high and low level alarm depending on the float switch model used.
The alarm horn sounds when potentially threatening liquid level condition occurs. The horn can be silenced, but the warning light remains on until the condition is remedied. A green "power on" light indicates power to the alarm panel.
SJE-Rhombus Tank Alert I Alarm System Typical Application
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage
- Agricultural
- Other Non-Potable Water Applications
SJE-Rhombus Tank Alert I Alarm System Features
- NEMA 1 Enclosure, Designed for Ease of Installation, Rated for Indoor Use
- Red "Alarm" Light, Green "Power On" Light, Alarm "Test" Switch and Horn "Silence" Switch
- Alarm Horn Sounds at 86 Decibels at 10 Feet (3 meters)
- Can be Used With Any UL Listed / Recognized Switching Mechanism Rated to Include 1 Amp, 12 VAC Load
- Alarm System (when installed on separate circuit) Operates Even if the Pump Circuit Fails
- Switching Mechanism Operates on Low Voltage and is Isolated From the Power Line to Reduce the Possibility of Shock.
- UL Listed, CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Tank Alert I Alarm System Specifications
- VOLTAGE FOR 120 VAC MODELS:
- PRIMARY: 120 VAC, 50/60 Hz, 5 Watts Max, (alarm condition)
- SECONDARY: 12 VAC
- ALARM ENCLOSURE: 6x4x2.5 inches (15.24x10.16x6.35 cm), NEMA 1 Metal
- ALARM HORN: 86 Decibels at 10 Feet (3 meters)
- POWER CORD: 6 feet (1.8 meters)
- FLOAT SWITCH CONNECTION TERMINAL: For Float Switch Connection Only. Do not Apply Power. Voltage across Terminals is 12 VAC.
- FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp.
- CABLE: 15 feet (4.57 meter), Flexible 18 Guage, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74 inch Diameter x 4.83 inch Long (7 cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI
- ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert I Alarm System Product Resources
SJE-Rhombus Tank Alert I Alarm System Catalog Page
SJE-Rhombus Tank Alert I Alarm System Features & Benefits
SJE-Rhombus Tank Alert I Alarm System Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
