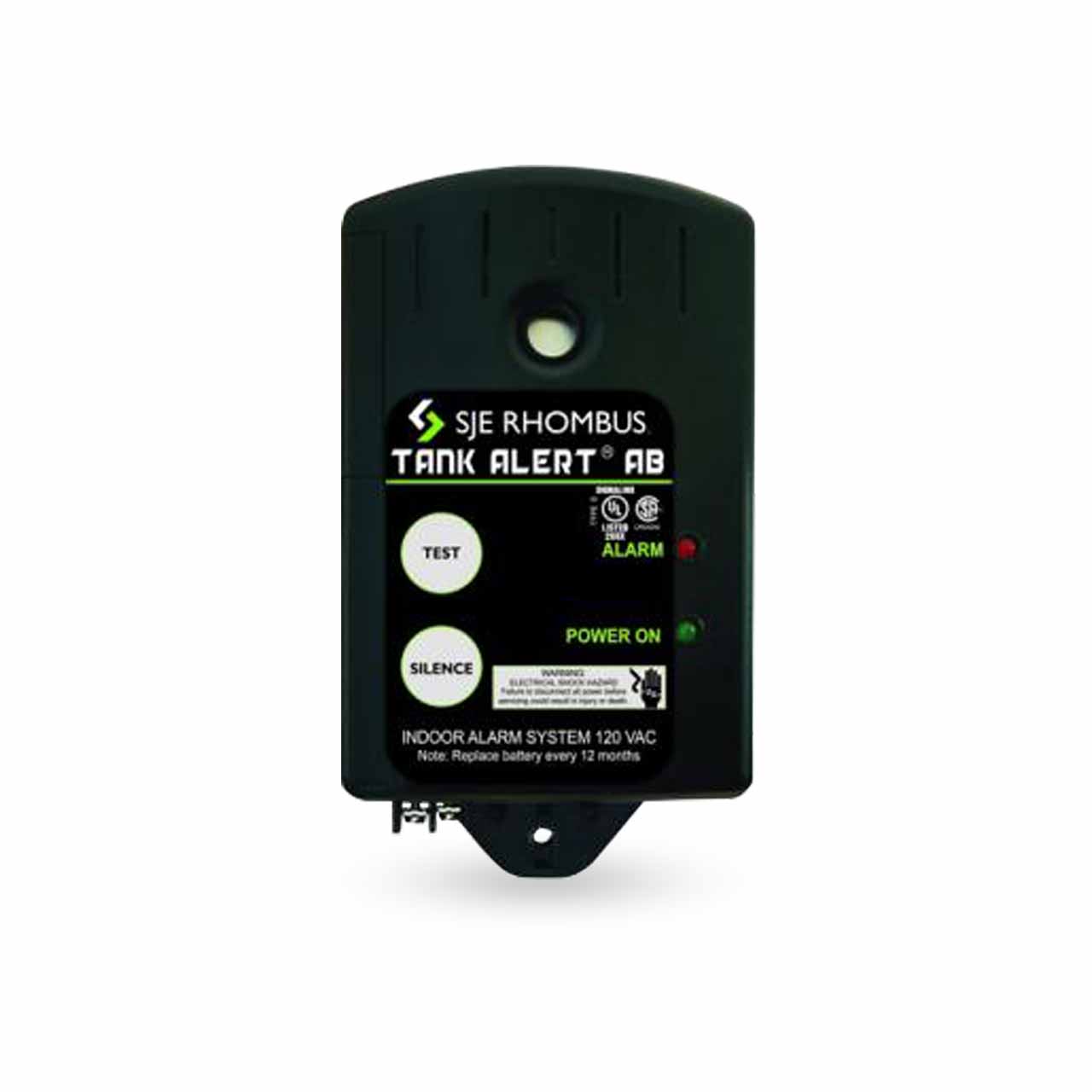

SJE-Rhombus Tank Alert AB Alarm System Description
This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other water applications.
The Tank Alert® AB alarm system can serve as a high or low level alarm depending on the float switch model used.
The alarm horn sounds when a potentially threatening liquid level condition occurs. The horn can be silenced, but the alarm light remains on until the condition is remedied. Once the condition is cleared, the alarm will automatically reset.
A green "Power On" light indicates 120 VAC primary power to the alarm. Low battery chirp feature indicates when battery should be replaced.
SJE-Rhombus Tank Alert AB Alarm System Typical Application
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage
- Agricultural
- Other Non-Potable Water Applications
SJE-Rhombus Tank Alert AB Alarm System Technical Details
- NEMA 1 Enclosure, Designed for Ease of Installation, Rated for Indoor Use
- Automatic Alarm Reset
- Red "Alarm" Light and Green "Power On" Light, Alarm "Test" Switch and Horn "Silence" Switch.
- Alarm Horn Sounds at 87 Decibels at 10 Feet (3 meters)
- Can be Used With any UL Listed / Recognized Switching Mechanism Rated to Include 1 Amp, 9 VDC Load
- If Primary Power Fails, the Alarm System Continues to Work Due to Battery Backup Feature. (Battery not included)
- Switching Mechanism Operates on Low Voltage and is Isolated from the Power Line to Reduce the Possibility of Shock.
- Low Battery Chirp
- Easy Access Battery Compartment
- External Terminal Block for Easy Float Switch Installation
- UL Listed
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Tank Alert AB Alarm System Specifications
- VOLTAGE FOR 120V MODEL:
- PRIMARY: 120 VAC, 60 Hz, 2.4 Watts Max. (alarm condition)
- SECONDARY: 9 VDC
- BATTERY BACKUP POWER: 9 VDC
- ALARM ENCLOSURE: 6 x 4 x 2.25 inches (15.24 x 10.16 x 5.71 cm), NEMA 1 Plastic
- ALARM HORN: 87 Decibels at 10 feet (3 meters)
- POWER CORD: 6 feet (1.8 meters)
- FLOAT SWITCH CONNECTION TERMINAL: For Float Switch Connection Only. Do Not Apply Power ( Voltage across terminals is 8-9 VDC)
- FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp
- CABLE: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74 inches Diameter x 4.83 inches Long (7.0 x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Water Up to 140°F (60°C).
- AUXILIARY ALARM CONTACTS (Optional):
- NOTE: Units with Auxiliary Alarm Contacts are CSA Certified Only
- VOLTAGE: 120 VAC
- CURRENT: 5 Amps Maximum N/O; 3 Amps Maximum N/C
