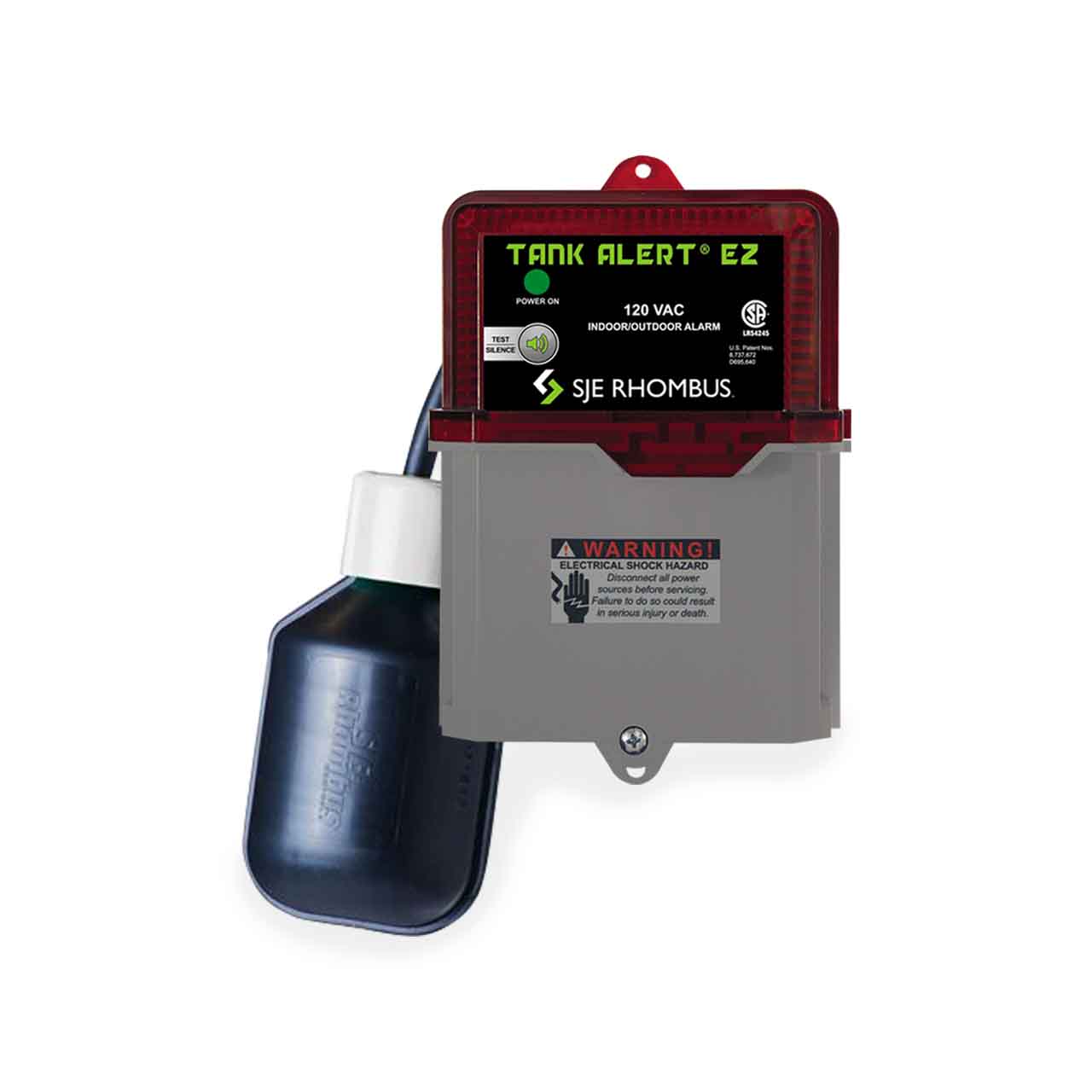

SJE-Rhombus TAEZ-01LB Tank Alert EZ 120V w/ 15' SJE SignalMaster Float Low Level & Terminal Block
SJE-Rhombus TAEZ-01LB Tank Alert EZ 120V w/ 15' SJE SignalMaster Float Low Level & Terminal Block
SKU : SJE1038035
In Stock Quantity:0
:
Brand
:
Regular price
$247.73 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus Tank Alert® EZ Alarm System Description
Innovative, Indoor or Outdoor Liquid Level Alarm System
Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.
The patented Tank Alert® EZ alarm is all about making installatios easier! This indoor/outdoor alarm offers significant improvements over other alarms currently available for lift pumps chambers, sump pump basins, holding tanks, sewage, agricultural and other waste applications.
The Tank Alert® EZ easy-to-install alarm features an innovative, sleek 2-color molded enclosure which integrated the LED red translucent beacon; the upper half illuminates and horn sounds when an alarm condition occurs. Once the condition is cleared, the alarm automatically resets. The NEW Tank Alert® EZ DUO models feature a red LED for alarm 1 and amber LED for alarm 2.
The Tank Alert® EZ alarm features external mounting tabs for quick, easy installation. The removable cover allows greater access for easier field wiring. Standard features include an alarm test/silence switch, green power on indicator and auxiliary contact for remote devices
SJE-Rhombus Tank Alert® EZ Alarm System Typical Application
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage
- Agricultural
SJE-Rhombus Tank Alert® EZ Alarm System Features
- 2-Color Molded Enclosure Offers a Distinct Look; Upper Translucent Half Illuminates in Alarm Condition. DUO Models Feature a Red LED for Alarm 1 and Amber LED for Alarm 2.
- Removable Lower Cover Provides Greater Access for Easier Field Wiring While the Internal Circuitry Remains Protected.
- Interlocking Enclosure Features Unique Sound Chamber to Amplify the Horn, While Helping Prevent Moisture from Entering.
- External Mounting Tabs for Easy Installation.
- Enclosure Meets Type 3R Water-Tight Standards.
- Enclosure has Indicator Marks on Bottom for Easy Placement of Cord Entry Locations.
- Automatic Alarm Reset, Horn Silence Switch, and Alarm Test Switch.
- Alarm Horn Sounds at 82 Decibels at 10 feet (3 meters)
- Alarm System (when installed on separate circuit) Operates Even if Pump Circuit Fails.
- Green Power on Indicator.
- Includes Auxiliary Alarm Contacts for Easy Attachment of Remote Devices.
- Complete Package Includes Standard SJE SignalMaster Control Switch with 15 feet of Cable (other lengths available) and Mounting Clamp.
- CSA Certified.
- Five-Year Limited Warranty.
Specifications
Specifications
SJE-Rhombus Tank Alert EZ Alarm System Specifications
- VOLTAGE 120 VAC Model:
- PRIMARY: 120 VAC, 50/60 Hz, 3.8 Watts Max. (alarm condition)
- SECONDARY: 9 VDC
- VOLTAGE 240 VAC Model: (not available for DUO models)
- PRIMARY: 240 VAC, 50/60 Hz, 3.8 Watts Max. (alarm condition)
- SECONDARY: 9 VDC
- ALARM ENCLOSURE: 6.7 x 5.3 x 2.5 Inch (17.02 x 13.46 x 6.35 cm), Indoor-Outdoor, Weatherproof, Thermoplastic, Meets Type 3R Water-Tight Standard.
- ALARM HORN: 82 Decibels at 10 Feet (3 meters)
- AUXILIARY ALARM CONTACTS: 240 VAC / 30 VDC, 1.5 Amps Max., 50/60 Hz (circuit not supervised)
- PRE-MOUNTED TERMINAL BLOCK (OPTIONAL): 20 Amps, 120/240 VAC.
- POWER CORD (OPTIONAL-120V MODEL ONLY): 16 Foot(1.8 meter) Cord with 120 VAC Plug
- FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp
- CABLE: 15 Feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74" Diameter x 4.83" Long (7 cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI
- ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert EZ Alarm System Product Resources
SJE-Rhombus Tank Alert EZ Alarm System Catalog Page
SJE-Rhombus Tank Alert EZ Alarm System Features Page
SJE-Rhombus Tank Alert EZ Alarm System Installation Instructions
SJE-Rhombus Tank Alert EZ Alarm System Terminal Block Instructions (optional)
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
