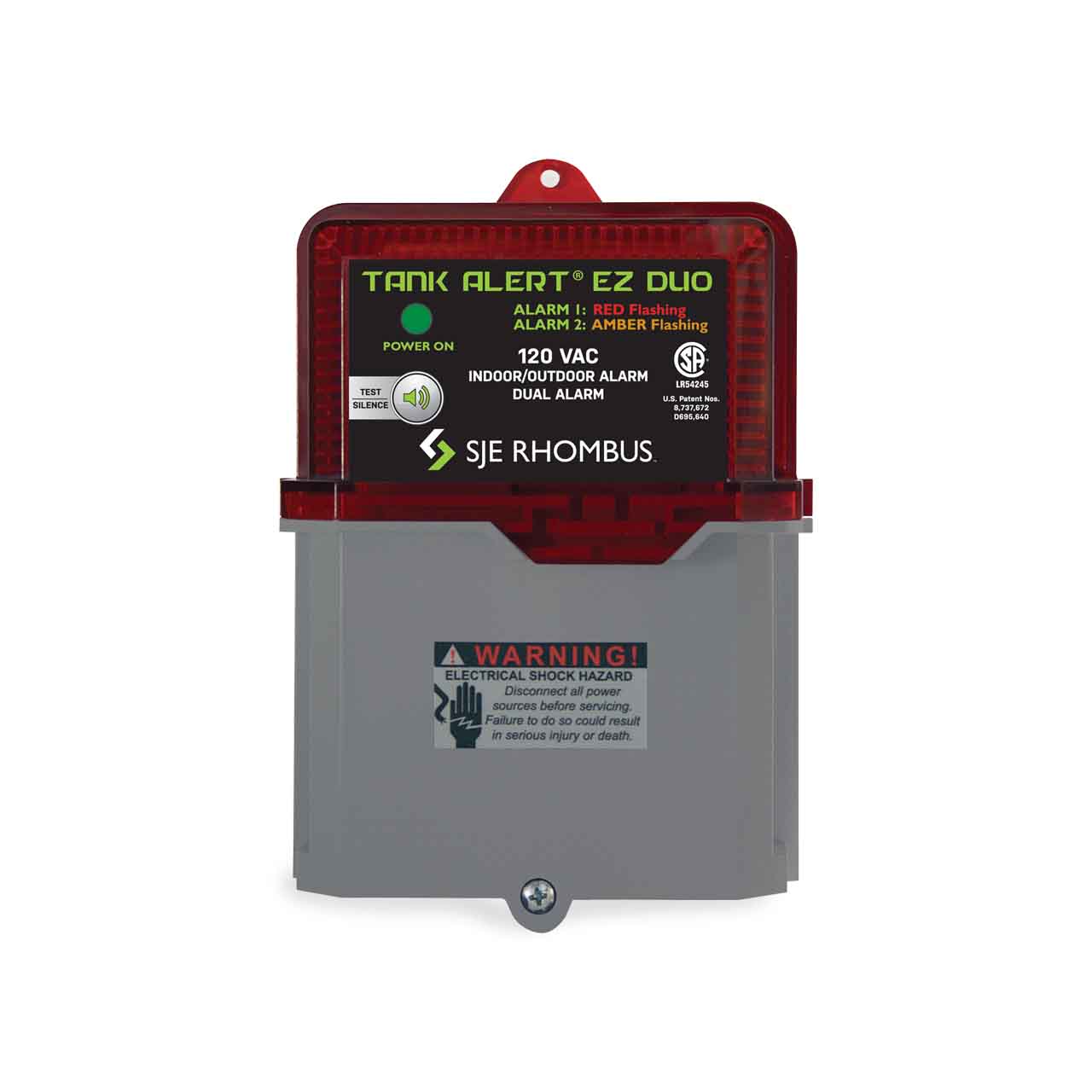

SJE-Rhombus Tank Alert® EZ DUO Alarm System Description
Innovative, Indoor or Outdoor Liquid Level Dual Alarm System
The Tank Alert® EZ DUO alarm system monitors two separate liquid levels or other contact closure in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other water applications.
The Tank Alert® EZ DUO indoor/outdoor alarm can serve as a high or low level alarm depending on the float switch model used. This easy to install alarm features an innovative, sleek 2-color molded enclosure which integrates the red LED translucent beacon.
The alarm sounds and the upper housing half illuminates when a potentially threatening liquid level condition occurs. The audible alarm can be silenced by pressing the Test/Silence button, but the alarm light will remain on until the condition is remedied. Once the condition is cleared, the alarm will automatically reset. A green “Power On” light indicates power to the alarm panel.
SJE-Rhombus Tank Alert® EZ DUO Alarm System Typical Application
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage
- Agricultural
SJE-Rhombus Tank Alert® EZ DUO Alarm System Features
- 2-Color Molded Enclosure Offers a Distinct Look; Upper Translucent Half Illuminates in Alarm Condition.
- Red LED for Alarm 1 and Amber LED for Alarm 2
- Removable Lower Cover Provides Greater Access for Easier Field Wiring While the Internal Circuitry Remains Protected.
- Interlocking Enclosure Features Unique Sound Chamber to Amplify the Horn, While Helping Prevent Moisture from Entering.
- External Mounting Tabs for Easy Installation.
- Enclosure Meets Type 3R Water-Tight Standards.
- Enclosure has Indicator Marks on Bottom for Easy Placement of Cord Entry Locations.
- Automatic Alarm Reset, Horn Silence Switch, and Alarm Test Switch.
- Alarm Horn Sounds at 82 Decibels at 10 feet (3 meters)
- Alarm System (when installed on separate circuit) Operates Even if Pump Circuit Fails.
- Green Power on Indicator.
- Includes Auxiliary Alarm Contacts for Easy Attachment of Remote Devices.
- CSA Certified.
- Five-Year Limited Warranty.
Specifications
Specifications
SJE-Rhombus Tank Alert EZ DUO Alarm System Specifications
- VOLTAGE 120 VAC Model:
- PRIMARY: 120 VAC, 50/60 Hz, 3.8 Watts Max. (alarm condition)
- SECONDARY: 9 VDC
- ALARM ENCLOSURE: 6.7 x 5.3 x 2.5 Inch (17.02 x 13.46 x 6.35 cm), Indoor-Outdoor, Weatherproof, Thermoplastic, Meets Type 3R Water-Tight Standard.
- ALARM HORN: 82 Decibels at 10 Feet (3 meters)
- AUXILIARY ALARM CONTACTS: 240 VAC / 30 VDC, 1.5 Amps Max., 50/60 Hz (circuit not supervised)
- FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp
- CABLE: 15 Feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74" Diameter x 4.83" Long (7 cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI
- ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert EZ DUO Alarm System Product Resources
SJE-Rhombus Tank Alert EZ DUO Alarm System Catalog Page
SJE-Rhombus Tank Alert EZ DUO Alarm System Installation Instructions
