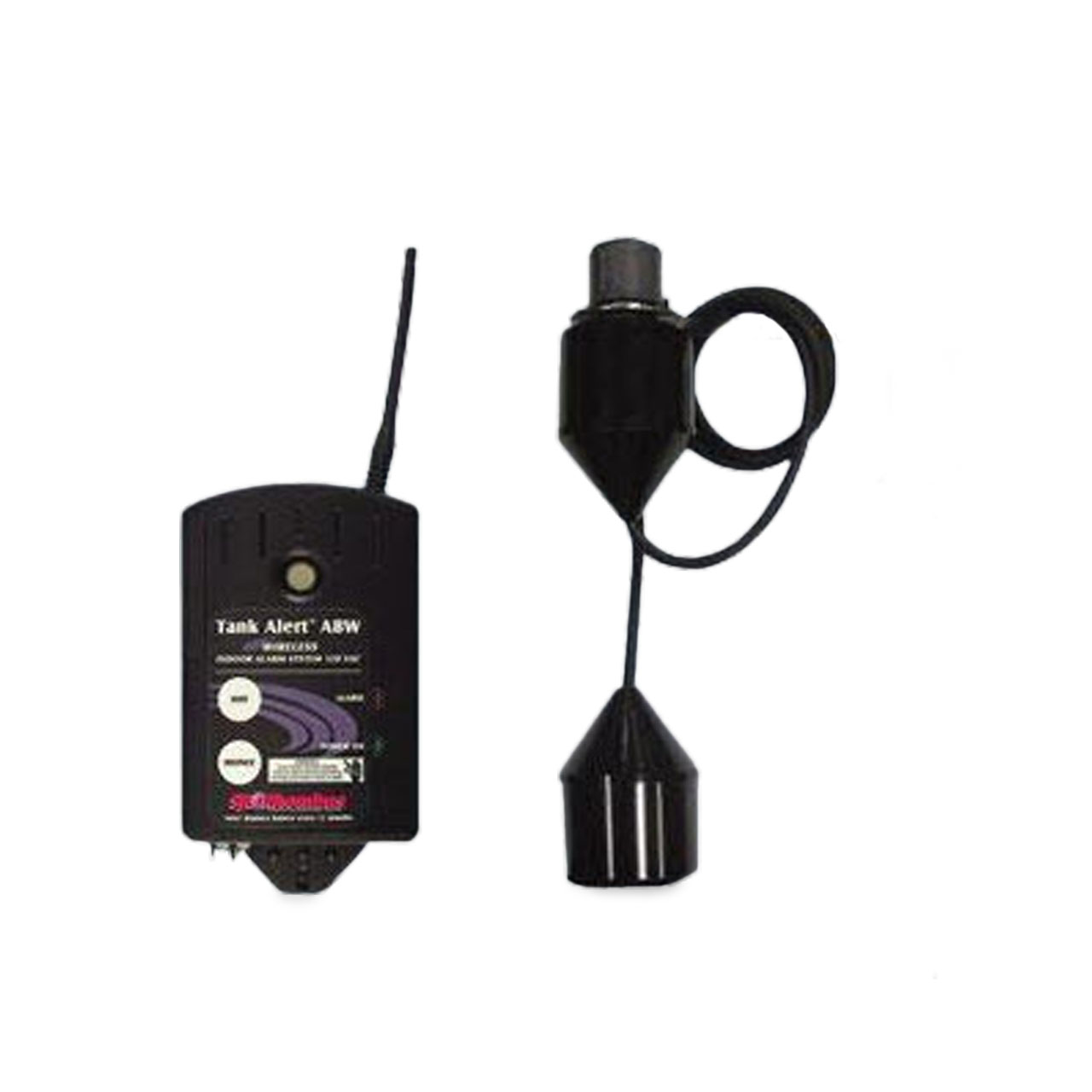

SJE-Rhombus TA ABW-01H Tank Alert ABW 120V w/10' Sensor Float Internal Weight N.O.
SJE-Rhombus TA ABW-01H Tank Alert ABW 120V w/10' Sensor Float Internal Weight N.O.
SKU : SJE1016316
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Tank Alert® ABW Indoor Wireless Alarm
The Tank Alert® ABW (auto reset, battery backup, wireless) indoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, effluent filters and other water applications. It features a battery operated wirless transmitter that is placed in the tank up to 150 ft. away from the alarm.
When the high water alarm float switch activates, the transmitter sends a signal and sounds the indoor alarm, warning of a potentially threatening level condition. The horn can be silenced, but the alarm light remains on until the condition is remedied. Once the condition is cleared, the alarm will automatically reset.
SJE-Rhombus Tank Alert ABW Alarm System Typical Application
- Lift pump chambers
- Sump pump basing
- Holding tanks
- Sewage
- Agricultural
- Other non-potable water applications
Specifications
Specifications
SJE-Rhombus Tank Alert ABW Alarm System Technical Details
- NEMA 1 enclosure for indoor use 6 x 4 x 2.25 inches (15.24 x 10.16 x 5.71 cm)
- Automatic alarm reset
- Red alarm light, green power on light, alarm test switch and horn silence switch
- 6 ft. (1.8 meter) power cord
- Alarm horn sounds at 87 decibels at 10 feet (3 meters)
- If primary power fails, the alarm system continues to operate on the battery backup
- Low battery chirp indicates when battery needs to be replaced (battery not included)
- External terminal block for easy installation of float switch
- Loss of signal alarm - after 24 hours without a signal, the red LED will begin flashing; after 7 days without a signal, the alarm will sound
- Switch mechanism operated on low voltage and is isolated from the power line to reduce the possibility of shock
- 120 VAC, 60 Hz, 2.4 watts max. (alarm condition)
- BATTERY BACKUP POWER: 9 VDC
- FLOAT SWITCH CONNECTION TERMINAL (Optional): For float switch connection only. Do not apply power. (Voltage across terminals is 8-9 VDC)
- FCC ID #: SCP TAABW01
- This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert ABW Alarm System Product Resources
SJE-Rhombus Tank Alert ABW Catalog Page
SJE-Rhombus Tank Alert ABW Installation Instructions
SJE-Rhombus Tank Alert ABW Features
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
