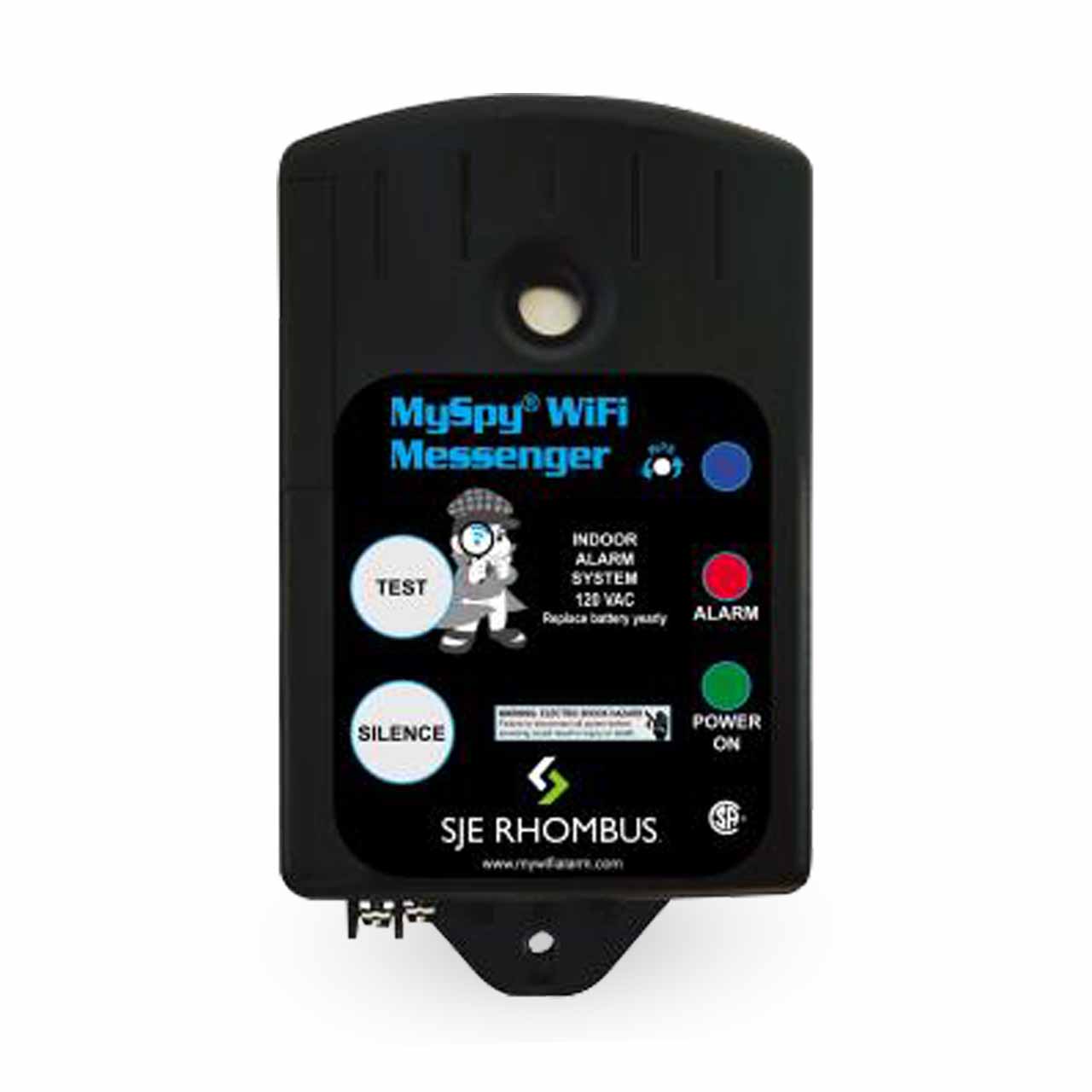

SJE-Rhombus MySpy™ WiFi Messenger Alarm System Features

• NEMA 1 Enclosure Rated for Indoor Use.
• Automatic Alarm Reset.
• Red "Alarm" Light, Green "Power On" Light, Blue "Network Status" Light, Alarm "Test" Switch, Horn "Silence" Switch, and WiFi Protected Setup (WPS) Connection Button.
• WiFi Connectivity for Remote Alarm Reporting
  • WiFi Protected Setup (WPS) Push-Button Connect Feature for Simplified Connection.
  • Manual WiFi Setup Done Through Ethernet Connection.
• Ethernet Connectivity for Remote Alarm Reporting - for Cabled Connection to Router or Modem (cable not included).
• Notifies the User Via Text and/or Email Notifications of the Following Conditions: Alarm, Power Lost, Power Restored, Low Battery, and Alarm Offline.
  NOTE: Installation of an Uninterruptible Power Supply (UPS) on internet modem and wireless router is recommended. The internet connection must be maintained to receive notifications
• Notifies up to 4 Contacts (2 text and 2 email contacts)
• Alarm Horn Sounds at 87 Decibels at 10 Feet (3 meters).
• Can be Used with any Switching Mechanism Rated to Include 1 Amp, 9 VDC Load.
• If Primary Power Fails, the Alarm System Continues to Work Locally Due to Battery Backup Feature. (battery not included.)
  NOTE: A Power Lost notification will be sent when entering battery backup mode, but other email and text notifications will not be sent in this mode.
• Complete Package Includes Standard SJE SignalMaster® Control Switch with 15 feet (4.57 meters) of Cable and Mounting Clamp.
• Switching Mechanism Operates on Low Voltage and is Isolated from the Power Line to Reduce the Possibility of Shock.
• Auxiliary Alarm Contacts for Easy Attachment of Remote Devices.
• Low Battery Chirp.
• Easy Access Battery Compartment.
• External Terminal Block for Easy Float Switch Installation.
• CSA Certified.
• Five-Year Limited Warranty.

SJE-Rhombus MySpy™ WiFi Messenger Alarm System Specifications

• VOLTAGE FOR 120 VAC MODEL: Primary: 120 VAC, 60 Hz, 2.4 Watts Max. (alarm condition) Secondary: 9 VDC
• BATTERY BACKUP POWER: 9 VDC
• ALARM HORN: 87 Decibels at 10 Feet
• AUXILIARY ALARM CONTACTS:
  • Voltage: 120 VAC
  • Current: 0.5 Amps Maximum N/O and 0.5 Amps Maximum N/C
• POWER CORD: 6 Foot (1.8 meter)
• FLOAT SWITCH CONNECTION TERMINAL: For Float Switch Connection Only. Do not Apply Power. (Voltage across terminals is 8-9 VDC).
• FLOAT SWITCH: SJE SignalMaster® Control switch with Mounting Clamp
  • Cable: 15 Feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water Resistant (CPE)
  • Float: 2.74 Inch Diameter x 4.83 Inch Long (7.0 cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Water up to 140°F
• WIFI:Connect using Push-Button WIFI Protected Setup (WPS) or Manually by Using Ethernet Connection (ethernet cable not provided). WPA2 Security Required on Wireless Router
• ETHERNET: Requires an Ethernet Connection (ethernet cable not provided).

NOTE: Cellular WiFi Hotspots are not Recommended for use with this WiFi Alarm, as Intermittent or Unreliable Notification Service can Result.
