Single Phase Simplex Sewage Grinder Motor Contactor Control

The Model SGS Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.

The Model SGS (Sewage Grinder System) control panel provides a reliable means of controlling one 120/208/240V single phase pump of 2HP or less requiring external starting components for water and wastewater applications.

SJE-Rhombus Model SGS - Single Phase Simplex Motor Contactor Control Panel Features

• Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) enclosure
• Red alarm beacon provides 360^o visual check of alarm condition (NEMA 1 style uses a door mounted indicator in lieu of a beacon)
• Alarm horn provides audio warning of alarm condition (NEMA 1 style uses an internally mounted buzzer in lieu of a horn)
• External alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition has been cleared
• Horn silence relay
• IEC motor contactor controls pump by switching electrical lines
• Hand/Off/Automatic (HOA) switch for manual pump control
• Green pump run indicator light
• Alarm and control fuses/indicators
• Float switch terminal block
• Pump connection terminal block
• Overload relay (optional) provides pump overload protection
• Ground lug
• Circuit breaker (optional) provides pump disconnect and branch circuit protection
• Run capacitor*
• Start relay*
• Start capacitor*
• *Start/Run components supplied for certain pump models. Please call to verify your pump model. Model SGS control panels cannot be returned.
• UL/cUL Listed
• Five-Year Limited Warranty

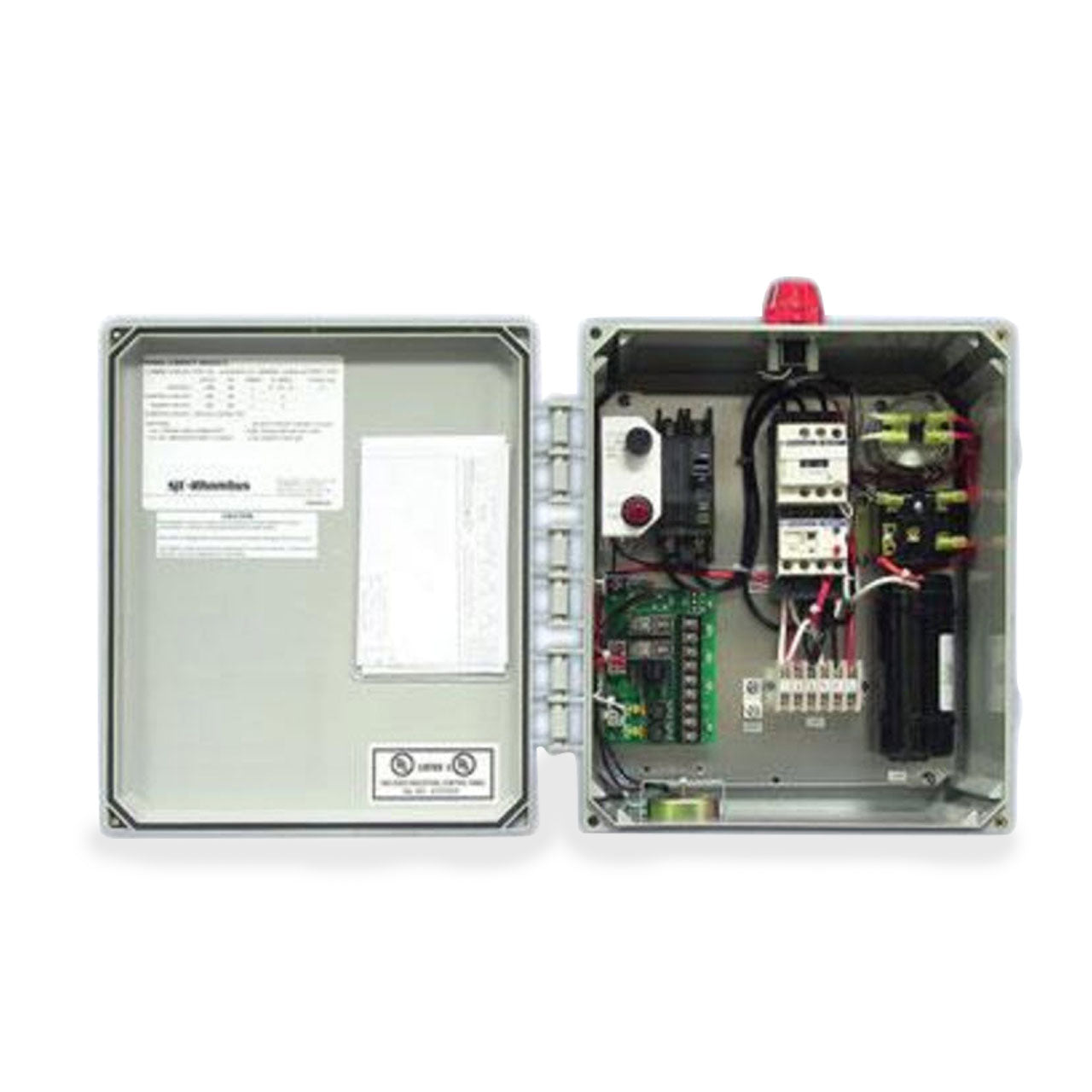

SJE-Rhombus Model SGS - Single Phase Simplex Grinder Motor Contactor Control Panel Components

1. Enclosure measures 12 x 10 x 6 inches. Choice of NEMA1 or NEMA4X. *Options selected may increase enclosure size and change component layout.
2. IEC Motor Contactor controls pump by switching electrical lines
3. HOA Switch for manual pump control.
4. Green Pump Run Indicator Light (mounted on circuit board)
5. Float Switch Terminal Block (mounted on circuit board)
6. Alarm and Control Fuses (mounted on circuit board)
7. Alarm and Control Power Indicators (mounted on circuit board)
8. Pump Connection Terminal Block
9. Ground Lug
10. Overload Relay (optional) provides pump overload protection.
11. Circuit Breaker (optional) provides pump disconnect and branch circuit protection
12. *Run Capacitor
13. *Start Relay
14. *Start Capacitor
15. Red Alarm Beacon provides 360° visual check of alarm condition. NOTE: NEMA 1 style utilizes a door mounted indicator in lieu of a beacon.
16. Alarm Horn provides audio warning of alarm condition (83 to 85 decibel rating). NOTE: NEMA 1 style utilizes an internally mounted buzzer in lieu of horn.
17. Exterior Alarm Test/Normal/Silence Switch allows horn and light to be tested and horn to be silenced in an alarm condition. Alarm automatically resets once alarm condition is cleared.
18. Horn Silence Relay (mounted on circuit board).

*Start/Run components supplied for certain pump models, please call to verify your pump model.

NOTE: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
