SJE-Rhombus Model IFS Single Phase Duplex Capacitor (Start/Run) Panel Description

Demand Dose, Float or C-.

The IFS duplex capacitor (start/run) control panel utilizes and innovative circuit board design to control two alternating 120/208/240V single phase pumps in water and sewage applications. IFS panels feature an easy-to-use touch pad or inner door for programming and system monitoring. The alternating action equalizes pump wear. In addition, this system provides override control should either pump fail. The panel configuration can be easily converted in the field to either a timed dose or demand dose. Available with the EZconnex® float system.

The panel can utilize the C-Level™ sensor for continuous level monitoring. It senses the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).

SJE-Rhombus Model IFS Single Phase Duplex Capacitor (Start/Run) Panel Features

Touch Pad Features:
• Level Status Indicators Illuminate when Floats or Set Points are Activated. Alarm will Activate if a Float Operates Out of Sequence.
• HOA (Hand/Off/Automatic) Buttons Control Pump Mode with Indication. Hand Mode Defaults to Automatic when Stop Level or Redundant Off Level is Reached.
• Pump Run Indicators will Illuminate when Pumps are Called to Run.
• Lead/Lag Selector Toggles Pump Operation (alternate 1-2 and 2-1).
• LED Display Shows System Information Including: Level in Inches or Centimeters (C-Level™ only), Mode, Pumps Elapsed Time (hh;mm), Events (cycles), Alarm Counter, Float Error Count, Timed Dose Override Counter (timed dose only) and ON/OFF Times (timed dose only)
• NEXT Push Button Toggles Display.
• UP and SET Push Buttons Set Pump ON/OFF Times (timed dose only) and Activation Levels (C-Level™ only).
Panel Components:
• Enclosure Base Measures 18x16x8 inches. NEMA 4X Fiberglass. NOTE: Options, Voltage and Amp Range Selected may Change Enclosure Size and Component Layout.
• Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
• Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
• Overload Relays (optional) Provide Pump Overload Protection.
• IEC Motor Contactors Control Pumps by Switching Electrical Lines.
• Circuit Breakers (optional) Provide Pump Disconnect and Branch Circuit Protection.
• Float and Control/Alarm Incoming Power Terminal Block.
• Control Power Indicator/Fuse Indicator Light Illuminates if Control Power is Present in Panel. Alarm Activates if Control Fuse is Blown.
• Alarm Power Indicator/Fuse Indicator Light Illuminates if Alarm Power is Present in Panel.
• Large Pump/Incoming Power Terminal Block.
• Terminal Block Float and Control/Alarm Incoming Power Wiring Label.
• Cap Kits
• Ground Lugs

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover

Panel Features:
• Entire Control System is UL Listed to Meet and/or Exceed Industry Safety Standards
• Dual Safety Certification for the United States and Canada
• Standard Package Includes Three 20′ Control Switches
• Available with EZconnex® Float System
• Complete with Step-by-Step Installation Instructions
• UL/cUL Listed
• Five-Year Limited Warranty on Panel. This Express Warranty does not Apply to the Motor Start Kit Components. SJE Rhombus will warranty motor start kit components supplied by SJE Rhombus for one year. SJE Rhombus makes no warranties of any type with respect to motor start kits supplied by a customer.
• Two-Year Limited Warranty on C-Level™ Sensor

SJE-Rhombus Model IFS Single Phase Duplex Capacitor (Start/Run) Panel Specifications

Touch Pad Features:
1. Level Status Indicators Illuminate when Floats or Set Points are Activated. Alarm will Activate if a Float Operates out of Sequence.
2. HOA (Hand-Off-Automatic) Buttons Control Pump Mode with Indication. Hand Mode Defaults to Automatic when Stop Level or Redundant Off Level is Reached.
3. Pump Run Indicators will Illuminate when Pumps are Called to Run.
4. Lead/Lag Selector Toggles Pump Operation (alternate 1-2 and 2-1).
5. LED Display Shows System Information Including: Level in Inches or Centimeters (C-Level ™ only), Mode, Pumps Elapsed Time (hh:mm), Events (cycles), Alarm Counter, Float Error Count, Timed Dose Override Counter (timed dose only), and ON/OFF Times (timed dose only).
6. NEXT Push Button Toggles Display.
7. UP and SET Push Buttons Set Pump ON/OFF Times (timed dose only) and Activation Levels (C-Level™ only).

Panel Components:

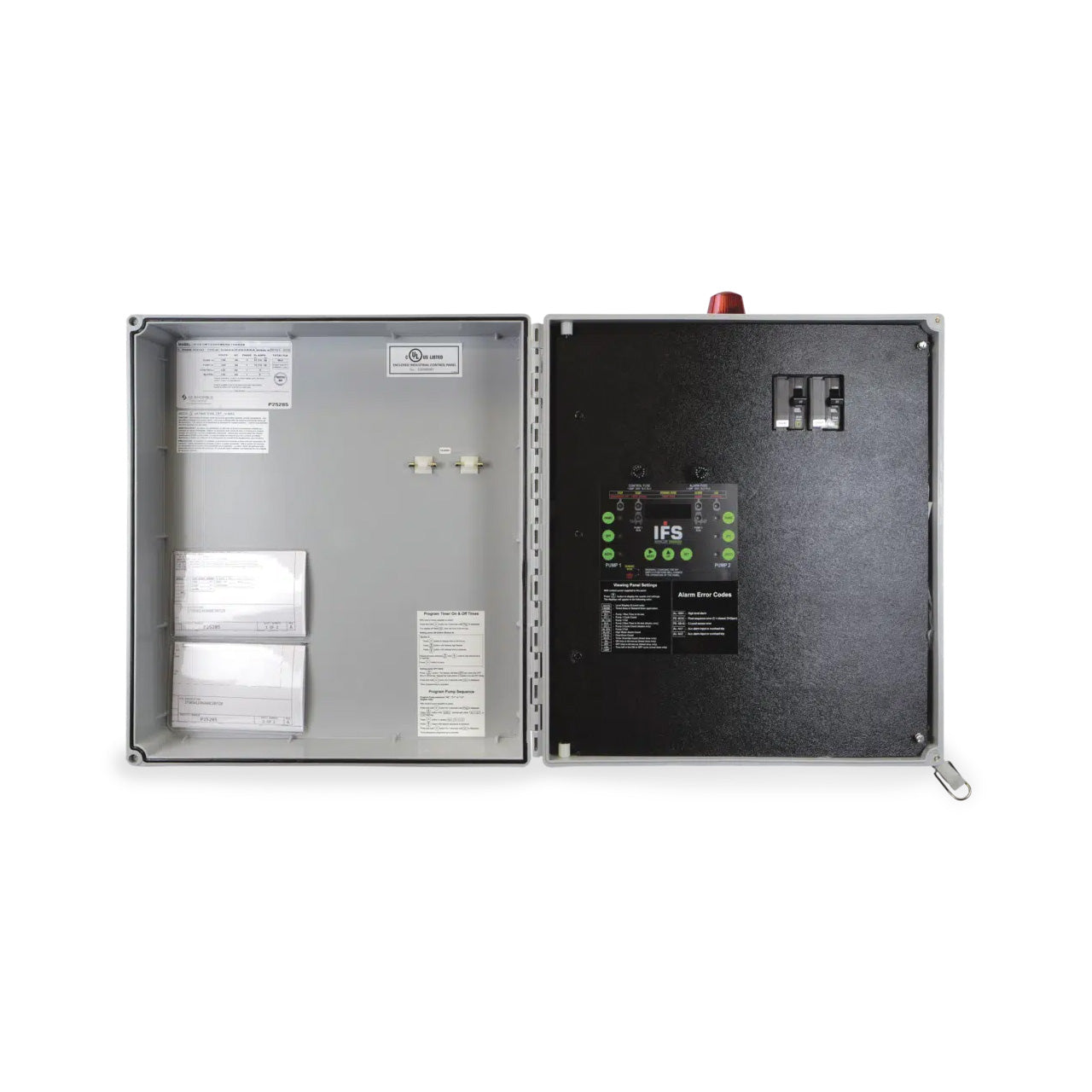

1. Enclosure Base Measures 18 X 16 X 8 inches. NEMA4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use).
2. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
3. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared. (Not Shown)
4. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).(Not Shown)
5. Overload Relays (optional) Provides Pump Overload Protection.(Not Shown)
6. IEC Motor Contactors Controls Pump by Switching Electrical Lines.
7. Circuit Breakers (optional) Provides Pump Disconnect and Branch Circuit Protection
8. Float and Control/Alarm Incoming Terminal Block
9. Control Power Indicator/Fuse Light Illuminates if Control Power is Present in Panel. Alarm Will Activate if Control Fuse is Blown.
10. Alarm Power Indicator/Fuse Light Illuminates if Alarm Power is Present in Panel.
11. Large Pump/Incoming Power Terminal Block
12. Terminal Block Float and Control/Alarm Incoming Power Wiring Label
13. Cap Kits
14. Ground Lug

NOTE:Options, Voltage, and Amp Rangel Selected May Change Enclosure Size and Component Layout.

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.
