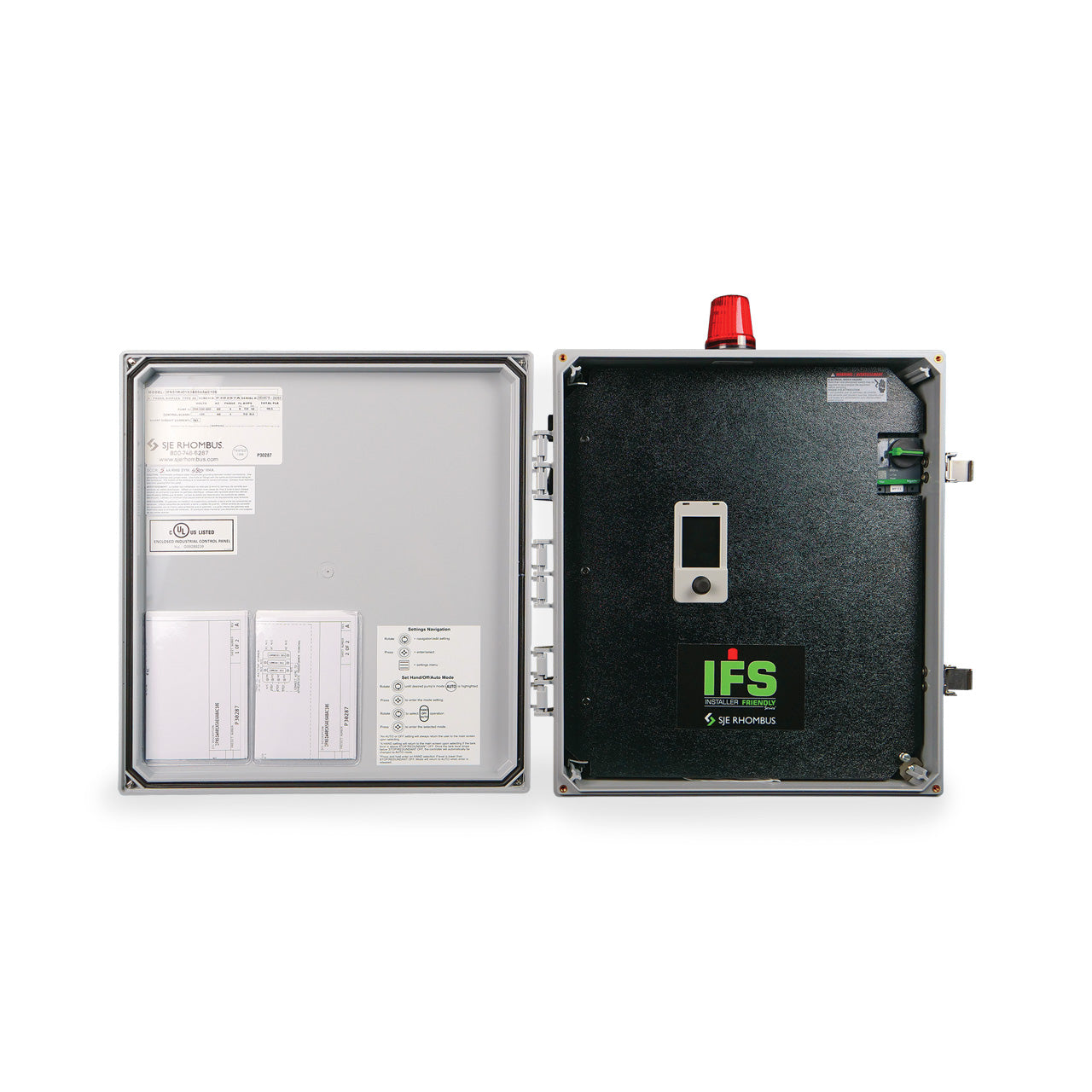

INSTALLER FRIENDLY SERIES® - IFS Three Phase Simplex Panel Description

Installer Friendly Series® control panels utilize circuit board technology for advanced pump control and system monitoring.

The Installer Friendly Series® Three Phase Simplex Demand/TD control panel is designed to control one 208/240/480V three phase pump in water and sewage installations.

The IFS panel features a simple, easy-to-use color LCD interface located on the inner door for programming and system monitoring. The panel configuration can be easily converted in the field to either a timed dose or demand dose through the LCD interface.

The panel can easily be changed in the field to utilize floats, Sub-X™ LT Transmitter or the C-Level™ Sensor for continuous monitoring. The Sub-X™ LT Transmitter and the C-Level™ Sensor sense the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the LCD interface.

SJE-Rhombus Model IFS Three Phase Simplex Panel Features

LCD Interface Features:
• Full Color Graphics and Menu Navigation Encoder for Easy Setup
• Touch Safe Housing
• Pump Hand/Off/Auto Control Selectable via Menu Navigation
• Sub-X™ LT Transmitter, C-Level™ Sensor or Float Operation Selectable
• Demand or Timed Dose Operation Selectable via Menu Navigation
• Tank Level Indication and Setpoint Monitoring At-A-Glance
• Lead pump is Easily Identified by a Graphic Ring Around the Current Lead Pump Regardless of Control Mode (timed dose or demand)
• Displays Remaining Time in Timed Dose Mode
• RJ45 Communication Connector
• Flashing Function for Alarm Beacon and Horn (configurable)
• Manual Alarm Reset (configurable)
• Thermal Cutout and Seal Failure Module (optional)
• UL/cUL Listed
• Warranty
• Five-Year Limited Warranty on Panel
• Two-Year Limited Warranty on C-Level™ Sensor and Sub-X™ LT Transmitter

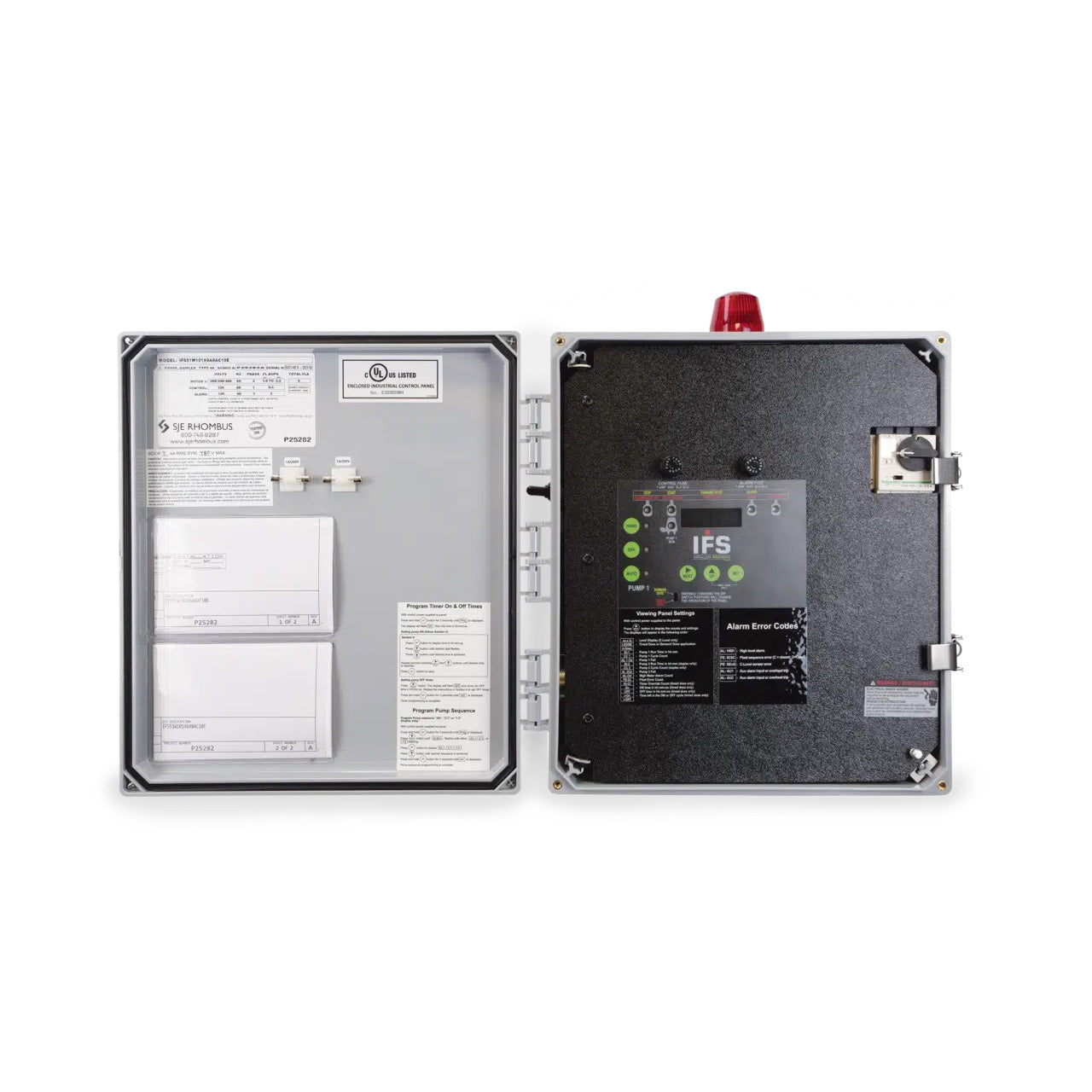

SJE-Rhombus Model IFS Three Phase Simplex Panel Components

Panel Components

1. Enclosure Base Measures 14 x 12 x 6 inches (35.56 x 30.48 x 15.24 cm); NEMA 4X (ultraviolet stabilized thermoplastic
2. Red Beacon Provides 360° Visual Check of Alarm Condition.
3. Motor Protective Switches Provide Adjustable Overload, Branch Circuit Protection and Pump Disconnect
4. IEC Motor Contactor Controls Pump by Switching Electrical Lines.
5. Multi-Tap Transformer (208/240/480 VAC primary) Provides 120 VAC Control Alarm Voltage or 600 VAC Primary Transformer
6. Sub-X™ LT Transmitter, C-Level™ Sensor and Float Commection Terminal Blocks
7. Controller Features:
   1. Incoming Control/Alarm Power Terminal Blocks
   2. Control/Alarm Power/System Status Green LED Indicators Illuminate if Control/Alarm Power is Present and Controller is Operating*
   3. Controller Status Green LED Indicators for: Power/Active, Float Input Status, Pump Run, C-Level Active*
   4. Normally Open Auxiliary Alarm Contacts Included as Standard
   5. Control Power On/Off Switch
   6. Green LED Pump Run Indicators Illuminate when Pump is Called to Run*
   7. Control Panel Able to Operate if LCD Interface Fails or is Disconnected
   8. Touch Safe Housing
8. Modbus Port (RJ45) for Future Expansion - eg. Remote Monitoring, Valve Control, In-Site®, Logging, ect.
9. Option 5AE - Thermal Cutout/Heat Sensor & Seal Failure Module
10. Large Incoming Power Connection Terminal Block
11. Alarm Horn Provides Audible Warning of Alarm Condition (Not Shown)
12. Exterior Alarm Test/Silence Push Button Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared (Not shown)

* In Fault Condition, LED Indicators will be Red

NOTE: Options, Voltage, and Amp Range Selected May Change Enclosure Size and Component Layout.

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.

LED Interface Features:

• Full Color Graphics and Menu Navigation ENcoder for Easy Setup
• Touch Safe Housing
• Pump Hand/Off/Auto Control Selectable via Menu Navigation
• Sub-X™ LT Transmitter, C-Level™ Sensor or Float Operation Selectable
• Demand or Timed Dose Operation Selectable via Menu Navigation
• Tank Level Indication and Setpoing Monitoring At-A-Glance
• Lead Pump is Easily Idenified by a Graphic Ring Around the Current Lead Pump Regardless of Control Mode (timed dose or demand)
• Displays Remaining Time in Timed Dose Mode
• RJ45 Communication Connector
• Flashing Function for Alarm Beacon and Horn (configurable)
• Manual Alarm Reset (configurable)
• Thermal Cutout and Seal Failure Module (optional)
