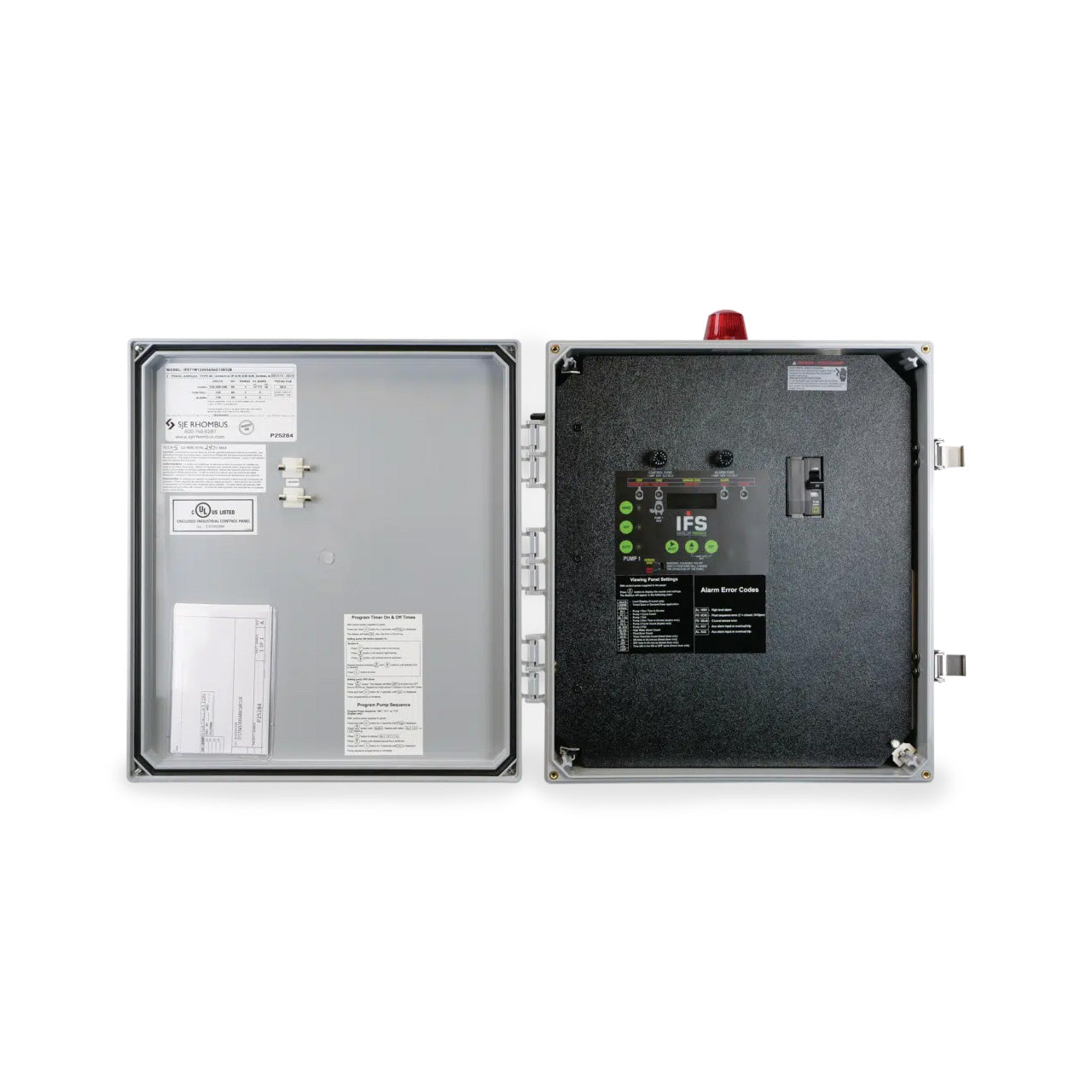

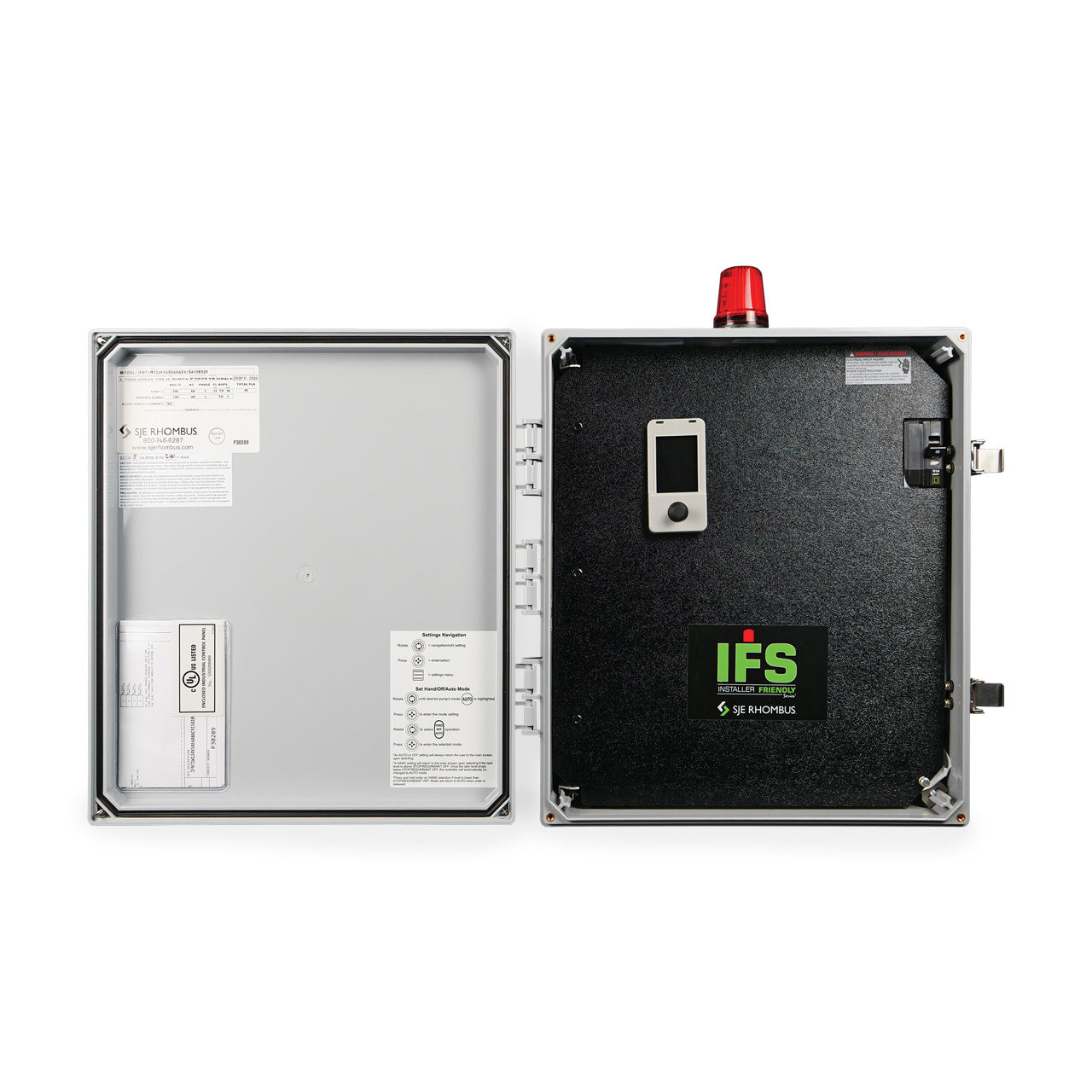

INSTALLER FRIENDLY SERIES® - IFS Simplex Capacitor (Start/Run) Panel Description

Single phase, simplex demand dose or timed dose, float or C-Level™ controlled system for pump control and system monitoring.

The IFS single phase simplex capacitor (start/run) control panel is designed to control one 120/208/240 VAC single phase pump in water and sewage applications. The IFS single phase simplex capacitor (start/run) control panel features an easy-to-use color LCD interface located on the inner door for programming and system monitoring. The panel configuration can be easily converted in the field to either a timed dose or demand dose through the LCD interface.

The panel can easily be changed in the field to utilize floats, Sub-X™ LT Transmitter or the C-Level™ Sensor for continuous monitoring. The Sub-X™ LT Transmitter and the C-Level™ Sensor sense the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the LCD interface.

SJE-Rhombus Model IFS Single Phase Simplex Capacitor (Start/Run) Panel Features

LCD Interface Features:

• Full Color Graphics and Menu Navigation Encoder for Easy Setup
• Touch Safe Housing
• Pump Hand/Off/Auto Control Selectable via Menu Navigation
• Sub-X™ LT Transmitter, C-Level™ Sensor of Float Operation Selectable
• Demand or Timed Dose Operation Selectable via Menu Navigation
• Tank Level Indication and Setpoint Monitoring At-A-Glance
• Lead Pump is Easily Identified by a Graphic Ring Around the Current Lead Pump Regardless of Control Mode (timed dose or demand)
• Displays Remaining Time in Timed Dose Mode
• RJ45 Communication Connector
• Flashing Function for Alarm Beacon and Horn (configurable)
• Manual Alarm Reset (configurable)
• Thermal Cutout and Seal Failure Module (optional)
• UL/cUL Listed
• Warranty
• Five-Year Limited Warranty on Panel. This Express Warranty does not Apply to the Motor Start Kit Components. SJE Rhombus will Warranty Motor Start Kit Components Supplied by SJE Rhombus for One Year. SJE Rhombus Makes no warranties of any Type with Respect to Motor Start Kits Supplied by a Customer
• Two-Year Limited Warranty on C-Level™ Sensor and Sub-X™ LT Transmitter

SJE-Rhombus Model IFS Single Phase Simplex Capacitor (Start/Run) Panel Specifications

LCD Interface Features:

• Full Color Graphics and Menu Navigation Encoder for Easy Setup
• Touch Safe Housing
• Pump Hand/Off/Auto Control Selectable via Menu Navigation
• Sub-X™ LT Transmitter, C-Level™ Sensor or Float Operation Selectable
• Demand or Timed Dose Operation Selectable via Menu Navigation
• Tank Level Indication and Setpoint Monitoring At-A-Glance
• Lead Pump is Easily Identified by a Graphic Ring Around the Current Lead Pump Regardless of Control Mode (timed dose or demand)
• Displays Remaining Time in Timed Dose Mode
• RJ45 Communication Connector
• Flashing Function for Alarm Beacon and Horn (configurable)
• Manual Alarm Reset (configurable)
• Thermal Cutout and Seal Failure Module (optional)

Panel Components:

1. Enclosure Base Measures 16 x 14 x 6 inches (40.64 x 35.56 x 15.24 cm); NEMA4X (ultraviolet stabilized thermoplastic)
2. Red LED Beacon Provides 360° Visual Check of Alarm Condition
3. Circuit Breaker Provides Pump Power Disconnect and Branch Circuit Protection Included as Standard on all Panels
4. Option 9_A - Adjustable Overload Relay
5. Sub-X™ LT Transmitter, C-Level™ Sensor and Float Connection Terminal Blocks
6. Controller Features:
   1. Incoming Control/Alarm Power Terminal Blocks
   2. Control/Alarm Power/System Status Green LED Indicators Illuminate if Control/Alarm Power is Present and Controller is Operating*
   3. Controller Status Green LED Indicators for: Power/Active, Float Input Status, Pump Run, C-Level Active*
   4. Normally Open Auxiliary Alarm Contacts Included as Standard
   5. Control Power On/Off Switch
   6. Green LED Pump Run Indicators Illuminate when Pump is Called to Run
   7. Control Panel Able to Operate if LCD Interface Fails or is Disconnected
   8. Touch Safe Housing
7. Modbus Port (RJ45) for Future Expansion -eg. Remote Monitoring, Valve Control, In-Site®, Logging, ect.
8. Option 5AE - Thermal Cutout/Heat Sensor & Seal Failure Module
9. Large Incoming Power Connection Terminal Block
10. Alarm Horn Provides Audible Warning of Alarm Condition (Not shown)
11. Exterior Alarm Test/Silence Push Button Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Reset Once Alarm Condition is Cleared (Not shown)

* In Fault Condition, LED Indicators will be Red

NOTE: Options, Voltage and Amp Range Selected May Change Enclosure Size and Component Layout

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.
