IFS In-Site Single Phase Duplex Control Panel Description

Demand Dose or Timed Dose, Float or C-Level™ Sensor Controlled System for Pump Control, System Monitoring, Event Logging and Reporting

The IFS In-Site® Duplex control panel is designed to control two alternating 120/208/240V single phase pumps in water and sewage installations. The IFS panel features a simple, easy-to-use touch pad on the inner door for programming and system monitoring. The panel configuration can be easily converted to demand dose or timed dose in the field.

The IFS In-Site® panel monitors and records system events including pump run times, pump cycles, alarm conditions, power outages, service calls and more. Plug the flash drive (included) into the USB port located on the inner door of the IFS In-Site® control panel to download system events. The pre-loaded software on the flash drive formulates system data for you, creating reports quickly in an easy-to-read format so system conditions can be easily identified and corrected. In addition, the IFS In-Site® panel logs any changes made to the system settings which helps protect service providers, and tracks service calls made to the panel.

The optional C-Level™ sensor is a pressure transducer that senses the liquid level in the tank and sends a signal to the IFS panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 sensor operating range is 3-99.5 inches (7.6-252.7 cm).

SJE-Rhombus Model IFS Single Phase Duplex Panel Features

Touch Pad Features:
• Level Status Indicators
• HOA (Hand/Off/Automatic) Buttons
• Pump Run Indicators
• LED Display Shows System Information (see below)
• Next Push Button
• Up and Set Push Buttons
LED Display Features
• Mode
• Pump Elapsed Time (hh:mm)
• Events (cycles)
• Alarm Counter
• Float Error Count
• Timed Dose Override Counter (TD only)
• ON/OFF Times (TD only)
• Sequence ON/OFF Times (TD only)
• Level in Inches or Centimeters (C-Level™ sensor only)
Panel Features:
• NEMA 4X Enclosure
• Red Alarm Beacon Provides 360o Visual Check of Alarm Condition
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Alarm Horn Provides Audio Warning of Alarm Condition
• Circuit Breakers (optional) Provides Pump Disconnect and Branch Circuit Protection.
• Power Relay Controls Pump by Switching Electrical Lines; Definite Purpose Contactor used When Pump FLA is Above 15.
• Float Connection Terminal Block
• Incoming Control/Alarm Terminal Block
• Control Power Indicator/Fuse
• Alarm Power Indicator/Fuse
• Ground Lugs
• Incoming Pump Power Connections
• RF Filter
• Power Supply
• USB Port
• Manual Report Switch
• Five-Year Limited Warranty on Panel
• One-Year Limited Warranty on C-Level™ Sensor
• UL/cUL Listed

SJE-Rhombus Model IFS Single Phase Duplex Panel Components

Touch Pad Features:
1. Level Status Indicators Illuminate when Floats or Set Points are Activated; Alarm will Activate if a Float Operates out of Sequence.
2. HOA (Hand-Off-Automatic) Buttons Control Pump Mode with Indication; Hand Mode Defaults to Automatic when Stop Level or Redundant Off Level is Reached.
3. Pump Run Indicator Illuminates when Pump is Called to Run.
4. LED Display for System Information Including: Level in Inches or Centimeters (C-Level™ only), Mode, Pump Elapsed Time (hh;mm), Events (cycles), Alarm Counter, Float Error Count, Timed Dose Override Counter (timed dose only), and ON/OFF Times (timed dose only).
5. NEXT Push Button Toggles Display.
6. UP and SET Push Buttons Used to Set Pump ON/OFF Times (timed dose only), Pump Operation (alternate 1-2 and 2-1), Date and Hour, Activation Levels (C-Level™ only)

Panel Components:

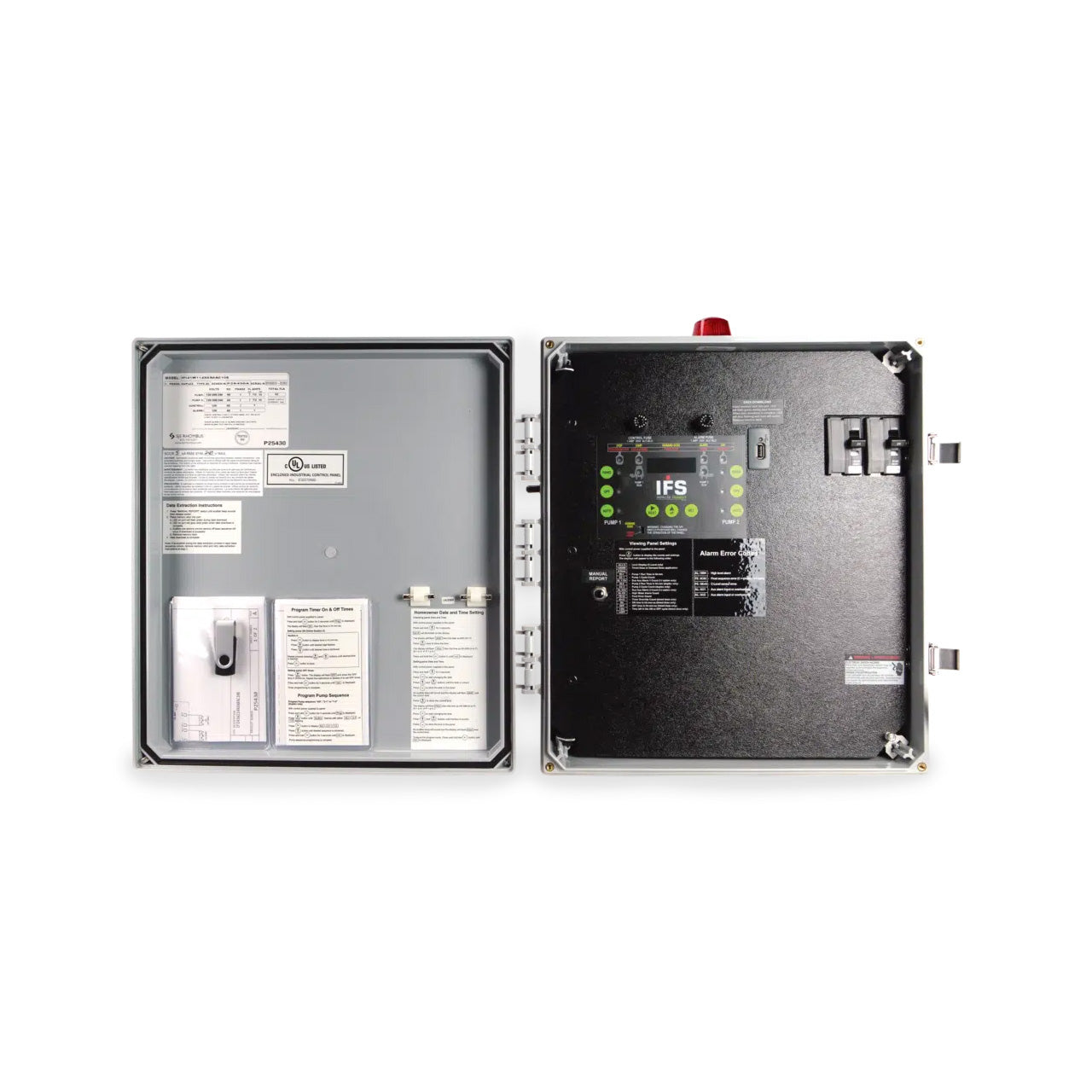

1. Enclosure Base Measures 16 x 14 x 6 inches. NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use).
2. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
3. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
4. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
5. Circuit Breakers (optional) Provide Pump Disconnect and Branch Circuit Protection.
6. Power Relays Controls Pump by Switching Electrical Lines; Definite Purpose Contactors Used When Pump Full Load Amps are Above 15
7. Float Connection Terminal Block
8. Incoming Control / Alarm Power & Pump Terminal Block
9. Control Power Indicator/Fuse Indicator Light Illuminates if Control Power is Present in Panel. Alarm will Activate if Control Fuse is Blown.
10. Alarm Power Indicator/Fuse Indicator Light Illuminates if Alarm Power is Present in Panel. Alarm Activates if Control Fuse is Blown (Not Shown)
11. Ground Lugs
12. Incoming Pump Power Connections
13. RF Filter
14. Power Supply
15. Control Fuse
16. Alarm Fuse
17. USB Port for Flash Drive to Download Time-Stamped System Events
18. Manual Report Switch Date and Time Stamps Service Calls

NOTE: Options, Voltage, and Amp Range Selected May Change Enclosure Size and Component Layout
NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.
