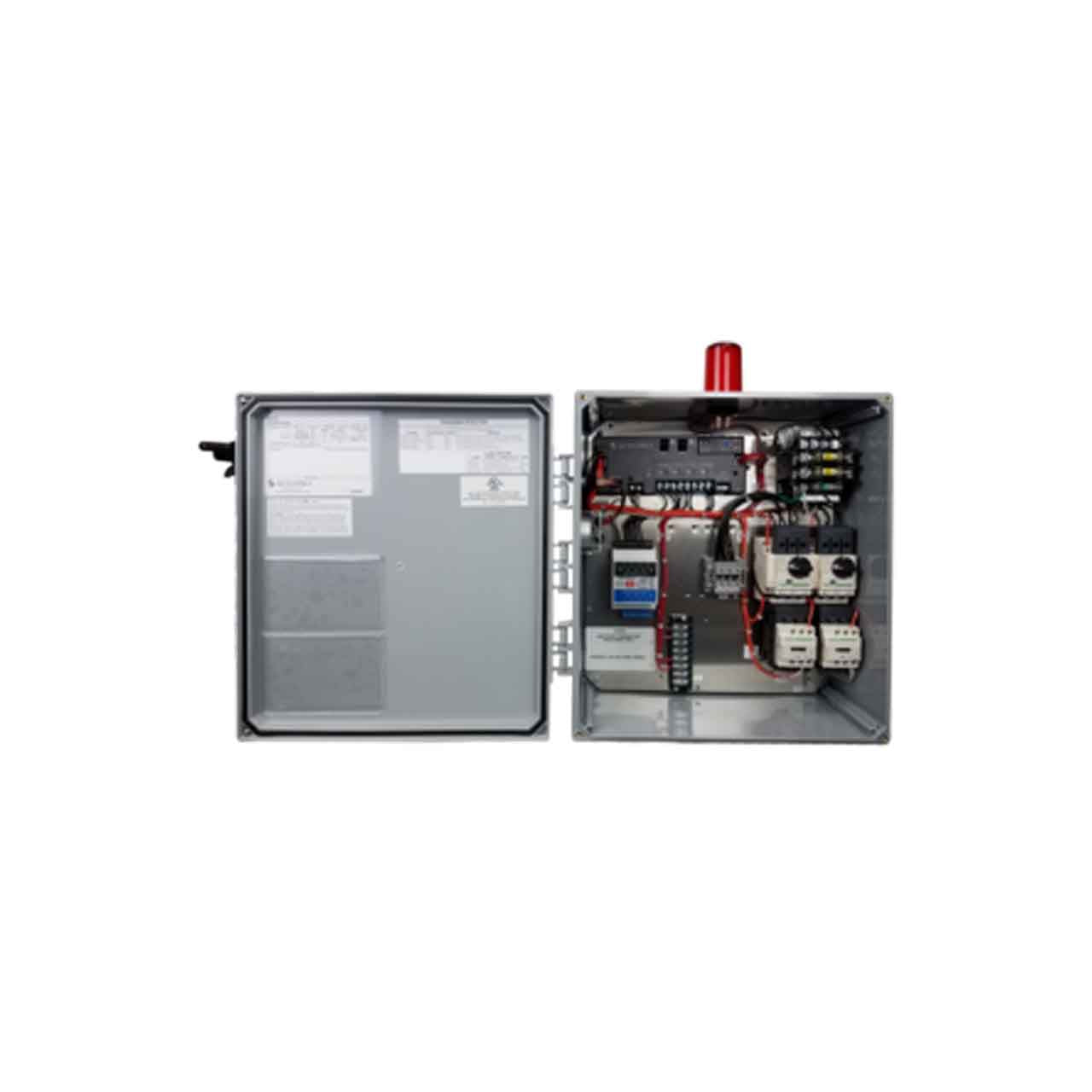

SJE-Rhombus Model 324 - Three Phase Duplex Pump Control Panel Description

Three Phase, Duplex Alternating Pump Control with Intrinsically Safe Circuits

The Model 324 control panel is designed to control two 208/240/480 VAC three phase pumps for applications requiring intrinsically safe float circuits. The controller is provided with a pump selector switch that can be set to alternate the pumps to equalize wear or to call either pump to activate first with the other pump to activate in lag condition. If an alarm occurs, the alarm activates the audible-visual system. The alarm conditions include: high water, float out-of-sequence, pump fail-to-run, seal failure (optional). Common applications include pump chambers, lift stations, or other installations classified as hazardous locations requiring intrinsically safe circuits.

SJE-Rhombus Model 324 - Three Phase Duplex Pump Control Panel Features

• NEMA 4X Enclosure for Indoor/Outdoor Use
• Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
• Alarm Horn Provides Audio Warning of Alarm Condition
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Horn Silence Relay
• Intrinsically Safe Module Limits the Amount of Energy to Switches Preventing Ignition of Flammable Gases
• Intrinsically Safe Partition Isolates Intrinsically Safe Wiring
• Motor Protective Switches Provide Adjustable Overload, Branch Circuit Protection and Pump Disconnect
• Hand/Off/Auto (HOA) Switches for Manual Pump Control
• Multi-Tap Transformer (208/230/480 VAC Primary) Provides 120V Control/Alarm Voltage
• Alternating Circuit Board (U.S. patent 5,909,532) Provides Pump Control and Alternation
• Green Pump Run Indicator Lights
• Control On/Off Switch
• Alarm and Control Fuses/Indicators
• Input Power Terminal Block
• Ground Lugs
• UL/cUL Listed
• Industrial Control Panel is UL Listed Relating to Hazardous Locations with Intrinsically Safe Circuit Extensions
• Five-Year Limited Warranty
• MODEL 324 Control Panels Cannot Be Returned

SJE-Rhombus Model 324 - Three Phase Duplex Pump Control Panel Specifications

PANEL COMPONENTS:
1. Enclosure Measures 16 x 14 x 6 inches. NEMA 4X (Ultraviolet Stabilized Thermoplastic w/ Removable Mounting Feet for Outdoor or Indoor Use).
2. Intrinsically Safe Module Limits the Amount of Energy to Switches Preventing Ignition of Flammable Gases.
3. Motor Protective Switches Provide Adjustable Overload, Branch Circuit Protection and Pump Disconnect.
4. IEC Motor Contactors Control Pumps by Switching Electrical Lines.
5. Multi-Tap Transformer (208/240/480 VAC Primary or 600 VAC Primary Transformer) Provides 120V Control/Alarm Voltage.
6. Duplex Controller Provides Pump Control, Alternation and Alarm.
   1. HOA Switches for Manual Control Hand/Off/Automatic
   2. Control Power ON/OFF Switch
   3. Power ON Green LED Indicators
   4. Float Status Red LED Indicators
   5. Float Push-to-Test Buttons
   6. Pump Selector Switch: Alt, 1-Lead 2-Lag, 2-Lead, 1 Lag
   7. Auxiliary Alarm Contacts Form-C
   8. Terminal Block; Incoming Power
   9. Terminal Block; Float Switches
   10. Option: Adjustable Seal Failure Circuits and Red LED Indicators (must select option 5E when ordering)
7. Ground Lugs
8. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
9. Alarm Horn Provides Audible Alarm Warning (83 to 85 decibel rating).
10. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.

Model 324 Control Panels Cannot be Returned

NOTE: Other Options Available. Options Selected May Increase Enclosure Size and Change Component Layout.

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel.
