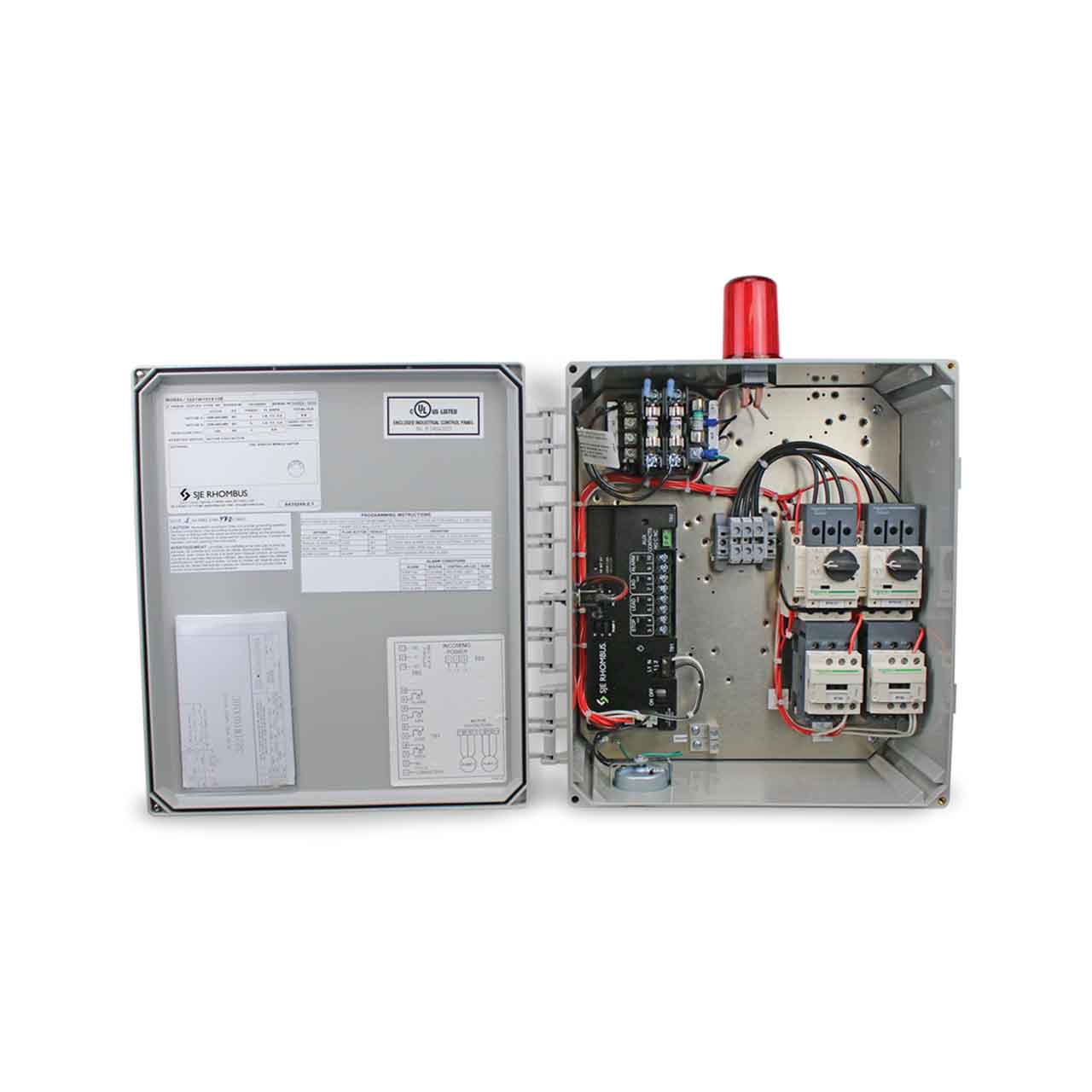

SJE-Rhombus Model 322 - Three Phase Duplex Alternating Pump Control Panel Description

Three Phase, Duplex Alternating Pump Control with Override

The Model 322 control panel is designed to control two 208/240/480V three phase pumps in water and sewage installations. The controller is provided with a pump selector switch that can be set to alternate the pumps to equalize wear or to call either pump to activate first with the other pump to activate in lag condition. If an alarm occurs, the alarm activates the audible-visual system. The alarm conditions include: high water, float out-of-sequence, pump fail-to-run, seal failure (optional). Common applications include lift stations, pump chambers and irrigation systems.

SJE-Rhombus Model 322 - Three Phase Duplex Alternating Pump Control Panel Features

Panel Features:
• NEMA 4X Enclosure for Indoor/Outdoor Use
• Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
• Alarm Horn Provides Audio Warning of Alarm Condition
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Horn Silence Relay
• IEC Motor Contactors Control Pumps by Switching Electrical Lines
• Multi-tap transformer (208/240/480 VAC primary) Provides 120V Control Voltage
• Motor Protective Switches Provide Adjustable Overload, Branch Circuit Protection and Pump Disconnect
• Alternating Circuit Board (U.S. patent 5,909,532) Provides Pump Control and Alternation
• Hand/Off/Auto (HOA) Switches for Manual Pump Control
• Control On/Off switch
• Green Pump Run Indicator Lights
• Alarm and Control Fuses/Indicators
• Float Switch Terminal Block
• Input Power Terminal Block
• Ground Lugs
• UL/cUL Listed
• Five-Year Limited Warranty

SJE-Rhombus Model 322 - Three Phase Duplex Alternating Pump Control w/Override Specifications

PANEL COMPONENTS:
1. NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use) (measures 14 x 12 x 6 inches.)
2. IEC Motor Contactors Control Pumps by Switching Electrical Lines.
3. Multi-Tap Transformer (208/240/480 VAC Primary Transformer) Provides 120V Control/Alarm Voltage.
4. Motor Protective Switches Provide Adjustable Overload, Branch Circuit Protection and Pump Disconnect.
5. Duplex Controller Provides Pump Control, Alternation and Alarm.
   1. HOA Switches for Manual Control Hand/Off/Automatic
   2. Control Power ON/OFF Switch
   3. Power ON Green LED Indicators
   4. Float Status Red LED Indicators
   5. Float Push-to-Test Buttons
   6. Pump Selector Switch: Alt, 1-Lead 2-Lag, 2-Lead, 1 Lag
   7. Auxiliary Alarm Contacts Form-C
   8. Terminal Block; Incoming Power
   9. Terminal Block; Float Switches
   10. Option: Adjustable Seal Failure Circuits and Red LED Indicators (must select option 5E when ordering)
6. Ground Lugs
7. Red Alarm Beacon Provides 360° Visual Check of Alarm Condition.
8. Alarm Horn Provides Audible Alarm Warning (83 to 85 decibel rating).
9. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.

NOTE: Options May Increase Enclosure Size and/or Change Enclosure Features/Component Layout.

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel.
