SJE-Rhombus Model 124 - Single Phase Duplex Pump Control Panel Description

Single Phase, Duplex Alternating Pump Control with Intrinsically Safe Circuits

The Model 124 control panel is designed to control two 120/208/240 VAC single phase pumps for applications requiring intrinsically safe float circuits. The controller is provided with a pump selector switch that can be set to alternate the pumps to equalize wear or to call either pump to activate first with the other pump to activate in lag condition. If an alarm occurs, the alarm activates the audible-visual system. The alarm conditions include: high water, float out-of-sequence, pump fail-to-run, seal failure (optional). Common applications include pump chambers, lift stations, or other installations classified as hazardous locations requiring intrinsically safe circuits.

SJE-Rhombus Model 124 - Single Phase Duplex Pump Control Panel Features

Panel Features:
• NEMA 4X (indoor/outdoor) Enclosure
• Red Alarm Beacon Provides 360^o Visual Check of Alarm Condition
• Alarm Horn Provides Audio Warning of Alarm Condition
• Exterior Alarm Test/Normal/Silence Switch Allow Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Horn Silence Relay
• Intrinsically Safe Module Limits the Amount of Energy to Switches Preventing Ignition of Flammable Gases
• Intrinsically Safe Partition Isolates the Intrinsically Safe Wiring
• IEC Motor Contactor Controls Pump by Switching Electrical Lines
• Hand/Off/Auto (HOA) Switch for Manual Pump Control
• Green Pump Run Indicator Light
• Alternating Circuit Board (U.S. patent # 5,909,352) Provides Pump Control and Alternations
• Float Status Indicator Lights
• Control On/Off Switch
• Control/Alarm Power Indicator Light
• Input Power Terminal Block
• Ground Lugs
• Circuit Breakers (optional) Provides Pump Disconnect and Branch Circuit Protection
• Adjustable Overload (optional) Provides Thermal Overload Protection for Pump
• UL/cUL Listed
• Five-Year Limited Warranty

*Model 124 Control Panels Cannot be Returned.

SJE-Rhombus Model 124 - Single Phase Simplex Pump Control Panel Specifications

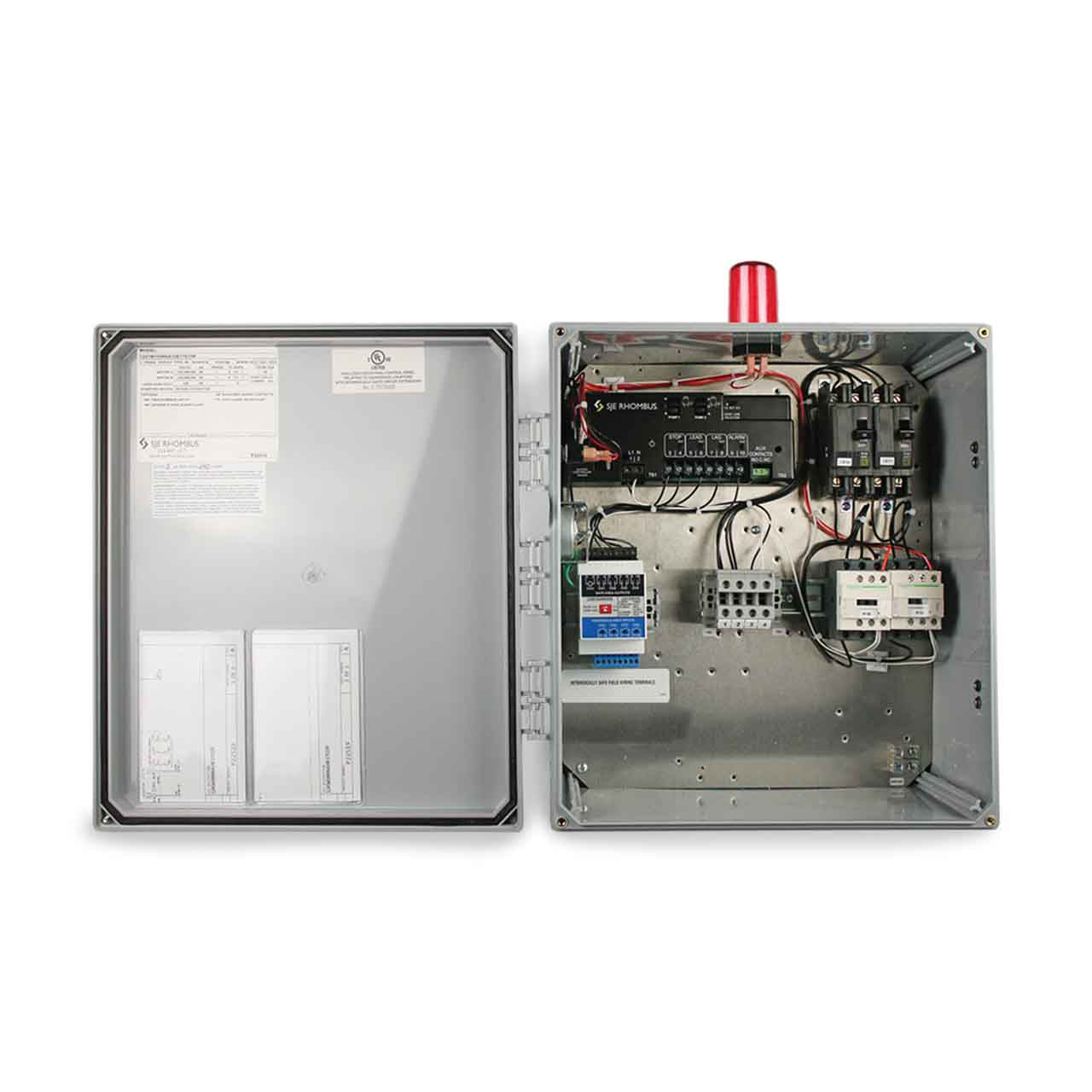

PANEL COMPONENTS:
1. Enclosure Measures 16 x 14 x 6 inches. NEMA4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use).
2. Intrinsically Safe Module Limits the Amount of Energy to Switches Preventing Ignition of Flammable Gasses.
3. Circuit Breakers (optional) Provide Pump Disconnect and Branch Circuit Protection.
4. IEC Motor Contactor Controls Pump by Switching Electrical Lines.
5. Adjustable Overloads (optional) Provide Thermal Overload Protection for Pump.
6. Duplex Controller Provides Pump Control, Alternation and Alarm.
1. HOA Switches for Manual Control Hand/Off/Automatic
2. Control Power ON/OFF Switch
3. Power ON Green LED Indicators
4. Float Status Red LED Indicators
5. Float Push-to-Test Buttons
6. Pump Selector Switch; Alt, 1-Lead 2-Lag, 2-Lead 1 Lag
7. Auxiliary Alarm Contacts Form-C
8. Terminal Block; Incoming Power
9. Terminal Block, Float Switches
10. Option: Adjustable Seal Failure Circuits and Red LED Indicators (must select option 5E when ordering)
7. Input Power Terminal Block
8. Ground Lugs
9. Red LED Beacon Provides 360° Visual Check of Alarm Condition
10. Alarm Horn Provides Audible Alarm Warning (83 to 85 decibel rating)
11. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared



Model 124 Control Panels Cannot be Returned

NOTE: Other Options Available. Options Selected May Increase Enclosure Size and Change Component Layout

NOTE: Schematic Diagram is Located Inside the Panel on Enclosure Cover.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
