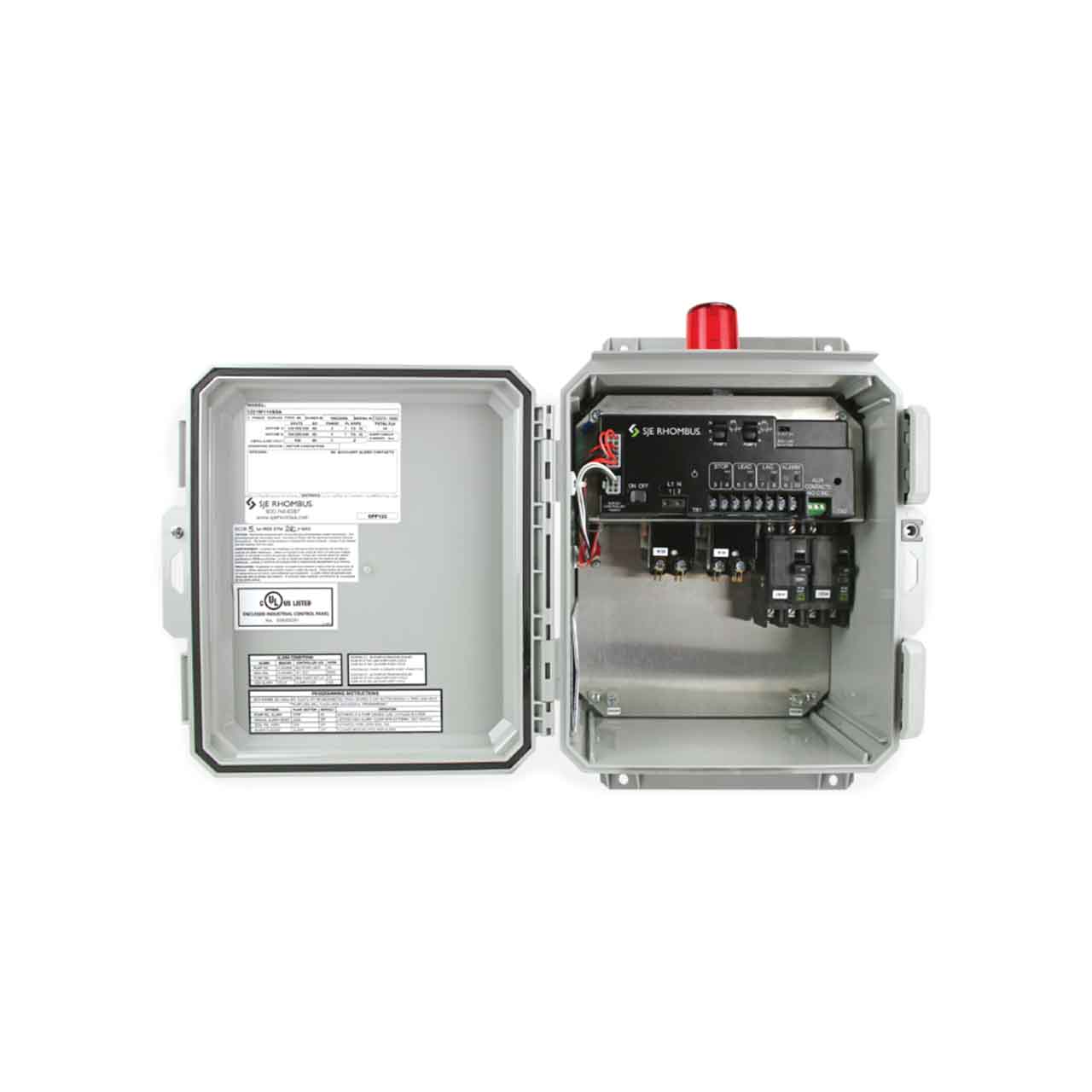

SJE-Rhombus Model 1221W914H6A17A Duplex Alternating Single Phase Pump Control 120 VAC w/3-Floats
SJE-Rhombus Model 1221W914H6A17A Duplex Alternating Single Phase Pump Control 120 VAC w/3-Floats
SKU : SJE1032904
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Duplex Panels
Single Phase, Duplex Alternating Pump Control Panel
The Model 122 control panel is designed to control two alternating 120V single phase pumps in water and sewage installations.
The alternating action equalizes pump wear. In addition, this system provides override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system.
Common applications include pump chambers, sump pump basins, irrigation systems and lift stations.
SJE-Rhombus Model 1221W914H6A17A Control Panel Specifications
- Entire Control System (Panel and Switches) is UL Listed to Meet and/or Exceed Industry Safety Standards
- Dual Safety Certification for the United States and Canada
- Standard Package Includes Float Switches
- Complete with Step-by-Step Installation Instructions
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Model 1221W914H6A17A Control Panel Features
- Standard Alarm Package Includes
- Red Alarm Beacon Provides 360º Visual Check of Alarm Condition
- Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibal rating)
- Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets once Alarm Condition is Cleared
- Enclosure Measures 12 x 10 x 6 inches, NEMA4X ( ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use).
- Starting Device Magnetic Motor Contactors 120V Only
- Voltage 120V
- Pump Full Load Amps 0-15 FLA
- Pump Disconnects Circuit Breaker 120V
- Float Switch Application Pump Down
- Auxilary Alarm Contact, Form C
- (3) SJE SignalMaster / Pipe Clamp (per float)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Model 122 - Single Phase Duplex Pump Control Panel Resources
SJE-Rhombus Model 122 - Single Phase Duplex Motor Contactor Control Panel Catalog Page
SJE-Rhombus Model 122 - Single Phase Duplex Motor Contactor Control Panel Installation Instructions
SJE-Rhombus Model 122 - Single Phase Duplex Motor Contactor Control Panel Wiring Diagram
