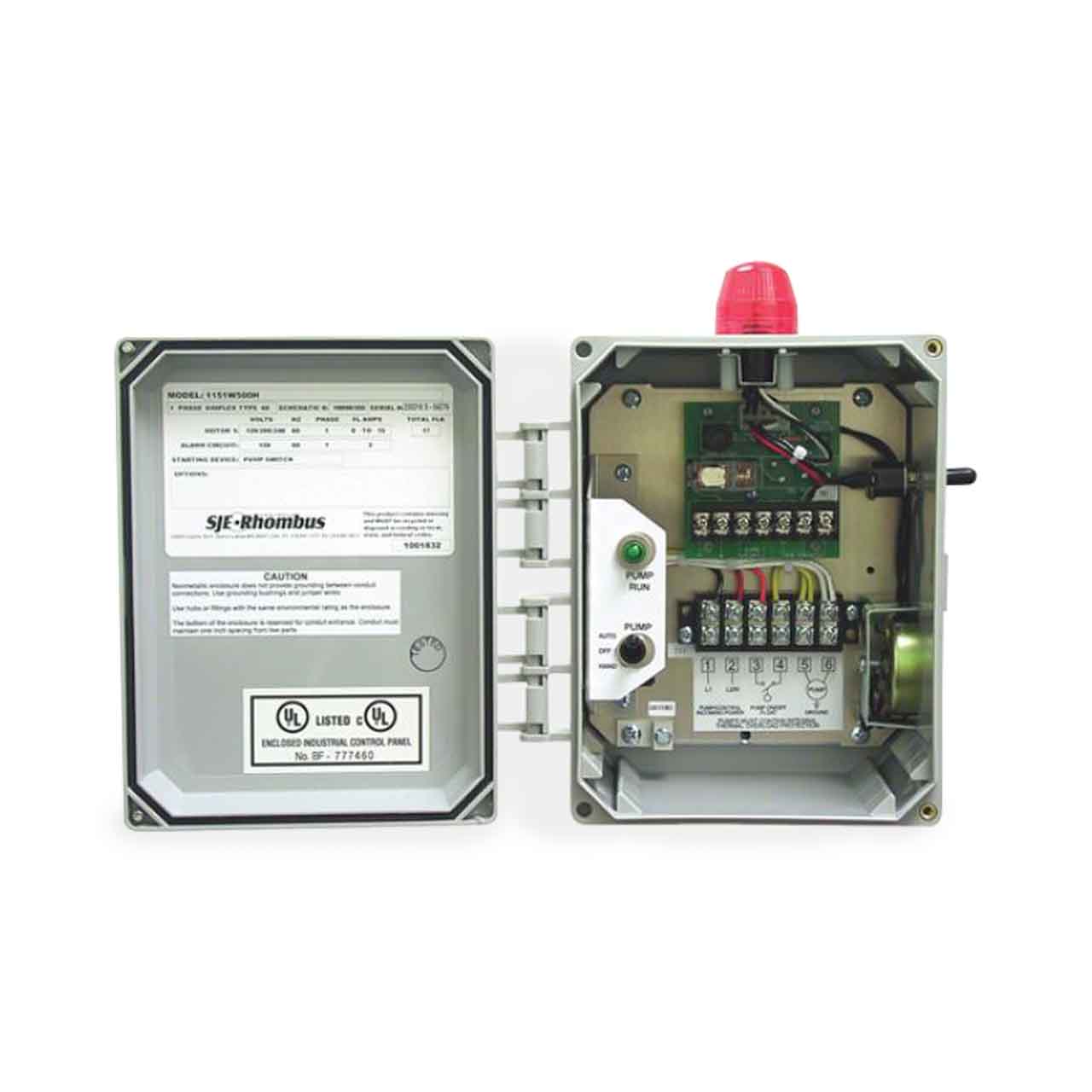

SJE-Rhombus Model 1151W214H17A Simplex Single Phase Control Panel 120/240 VAC w/2-Floats
SJE-Rhombus Model 1151W214H17A Simplex Single Phase Control Panel 120/240 VAC w/2-Floats
SKU : SJE1054182
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Simplex Panels
Single Phase, Simplex Pump Switch Control
The Model 115 control panel provides a reliable means of controlling one 120/240V single phase pump in water and wastewater applications.
A pump switch turns the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system.
Common applications include pump chambers, sump pump basins, irrigation system and lift stations.
SJE-Rhombus Model 1151W214H17A Control Panel Features
- Entire Control System (Panel and Switches) is UL Listed to Meet and/or Exceed Industry Safety Standards
- Dual Safety Certification for the United States and Canada
- Standard Package Includes Float Switches
- Complete with Step-by-Step Installation Instructions
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Model 1151W214H17A Control Panel Components
- Standard Alarm Package Includes
- Red Alarm Beacon Provides 360º Visual Check of Alarm Condition
- Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating)
- Exterior Alarm Test/Normal/Silence Switch Allows horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
- Horn Silence Relay (mounted on circuit board)
- Enclosure Measures 8 x 6 x 4 inches, NEMA4X (ultraviolet stabilized thermoplastic with removable mounting feet or outdoor or indoor use).
- Starting Device (2) SJE PumpMaster Plus Switches (0-15 FLA)
- Voltage 120/240V
- Pump Full Load Amps 7-17 FLA
- Pump Disconnects Circuit Breaker
- Float Switch Application Pump Down
- SJE SignalMaster / Pipe Clamp (alarm float only)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Model 115 - Single Phase Simplex Pump Control Panel Resources
SJE-Rhombus Model 115 - Single Phase Simplex Switch Control Panel Catalog Page
SJE-Rhombus Model 115 - Single Phase Simplex Switch Control Panel Installation Instructions
SJE-Rhombus Model 115 - Single Phase Simplex Switch Control Panel Wiring Diagram
