SJE-Rhombus Model 115 Simplex Single Phase Switch Control Panel

SJE-Rhombus Model 115 Simplex Single Phase Switch Control Panel

Usually ships within 4 days

SKU : CP-SJE115

In Stock Quantity:0

:
Brand : SJE Rhombus
Shipping calculated at checkout.

Description

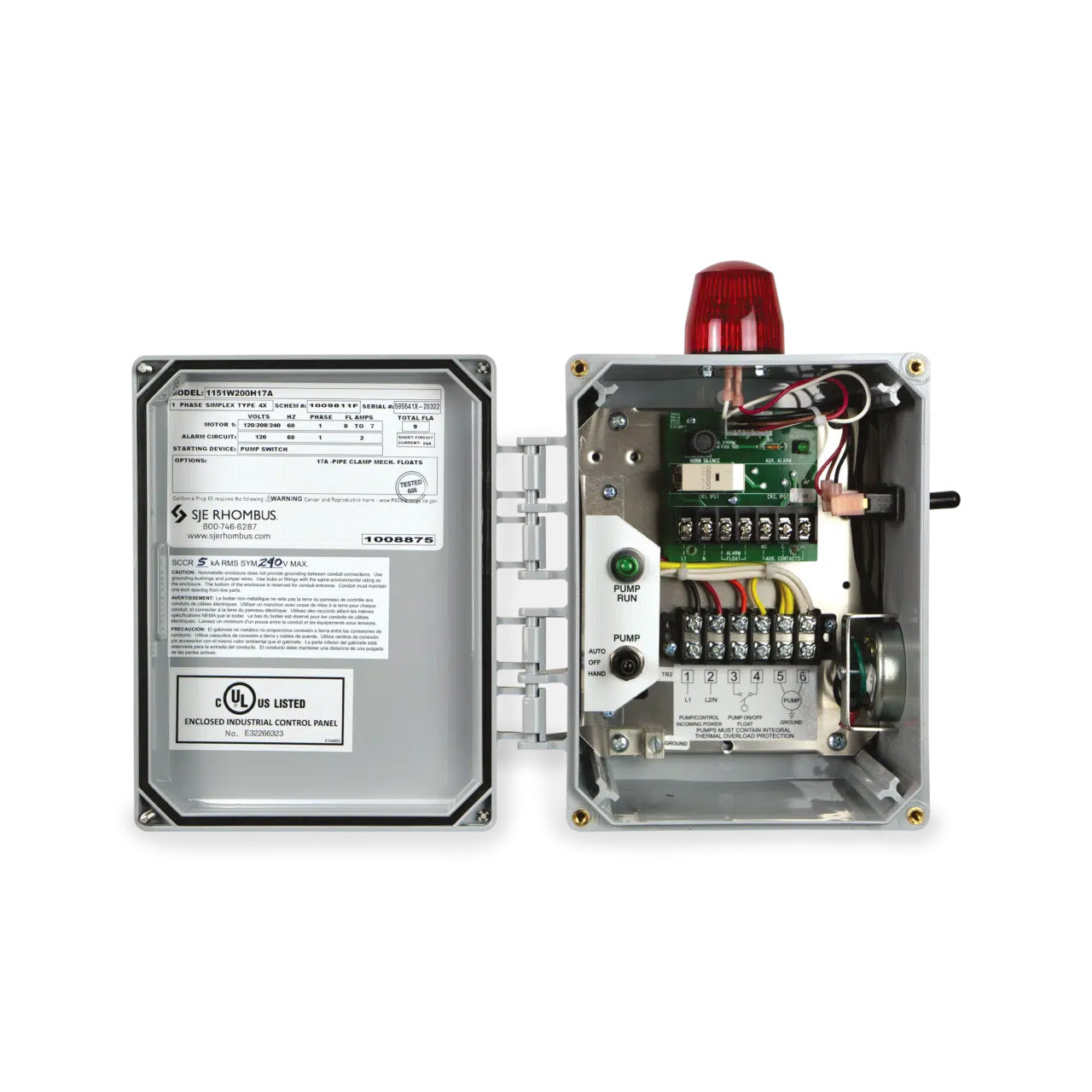

SJE-Rhombus Model 115 - Single Phase Simplex Switch Control Panel Description

The Model 115 control panel provides customers with reliable means of controlling one 120, 208, or 240 VAC single phase pump in water and wastewater installations. A pump float switch turns the pump on and off. If an alarm condition occurs, and additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers, sump pump basins, irrigation systems and lift stations.

SJE-Rhombus Model 115 - Single Phase Simplex Switch Control Panel Features

  • Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) Enclosure
  • Red Alarm Beacon Provides 360o Visual Check of Alarm Condition (NEMA 1 style uses a door mounted indicator in lieu of a beacon)
  • Alarm Horn Provides Audio Warning of Alarm Condition (NEMA 1 style uses an internally mounted buzzer in lieu of a horn)
  • Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
  • Horn Silence Relay
  • Hand/Off/Automatic (HOA) Switch for Manual Pump Control
  • Green Pump Run Indicator Light
  • Pump Circuit Terminal Block
  • Alarm Circuit Terminal Block
  • Alarm Fuse/Indicator
  • Ground Lug
  • UL/cUL Listed
  • Five-Year Limited Warranty

Specifications

SJE-Rhombus Model 115 - Single Phase Simplex Switch Control Panel Specifications

  1. Choice of NEMA1 (steel for indoor use) or NEMA4X (ultraviolet stabilized thermoplastic with removable mounting feet or outdoor or indoor use) Enclosure; Enclosure Measures 8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm)
  2. HOA Switch for Manual Pump Control
  3. Green Pump Run Indicator Light
  4. Pump Circuit Terminal Block
  5. Alarm Circuit Terminal Block (mounted on circuit board)
  6. Alarm Fuse (mounted on circuit board)
  7. Alarm Power Indicator (mounted on circuit board)
  8. Ground Lug

    9. STANDARD ALARM PACKAGE

  9. Red Alarm Beacon Provides 360º Visual Check of Alarm Condition-Note: NEMA 1 Style Utilizes a Door Mounted Indicator in Lieu of a Beacon
  10. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating) NOTE: NEMA 1 Style Utilizes an Internally Mounted Buzzer in Lieu of a Horn.
  11. Exterior Alarm Test/Normal/Silence Switch
  12. Horn Silence Relay (mounted on circuit board)

NOTE: Other Options Available

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel
