SJE-Rhombus Model 113 - Single Phase Simplex Pump Control Panel Description

Model 113 control panels provide a reliable means of controlling one 120, 208, or 240 VAC single phase pump requiring external starting components in water and sewage installations. Two control switches activate an IEC motor contactor to turn the pump on and off. If an alarm condition occurs, and additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers and lift stations.

Model 113 control panel features built in pump failure and float out of sequence detection. In addition, there are three user selectable field programmable options: alarm steady state or flashing; alarm auto reset or manual reset; and optional seal failure alarm beacon plus horn activation.

Simplex Controller Features Include:

• Touch safe circuit board housing and low voltage 24 VDC float circuits
• Alarm (field programmable to flash)
• Alarm automatic reset (field programmable to manual alarm reset)
• Float out-of-sequence detection
• Pump contactor failure detection
• Controller protected by three auto resettable fuses (control, alarm, and pump 1)

Note: SJE Rhombus recommends separate pump and control/alarm power sources

SJE-Rhombus Model 113 - Single Phase Simplex Pump Control Panel Features

• NEMA 4X (indoor/outdoor) Enclosure
• Red Alarm Beacon Provides 360º Visual Check of Alarm Condition
• Alarm Horn Provides Audio Warning of Alarm Condition
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Horn Silence Relay
• IEC Motor Contactor Controls Pump by Switching Electrical Lines
• Hand/Off/Auto (HOA) Switch for Manual Pump Control
• Green Pump Run Indicator Light
• Alarm and Control Fuses/Indicators
• Float Switch Terminal Block
• Pump Input Power and Pump Connection Terminal Block
• Ground Lugs
• Circuit Breaker (optional) Provides Pump Disconnect and Branch Circuit Protection
• Capacitor Start Module*
• UL/cUL Listed
• Five-Year Limited Warranty

*Start/Run Capacitor Kit Must be Ordered Separately. Model 113 Control Panels Cannot be Returned.

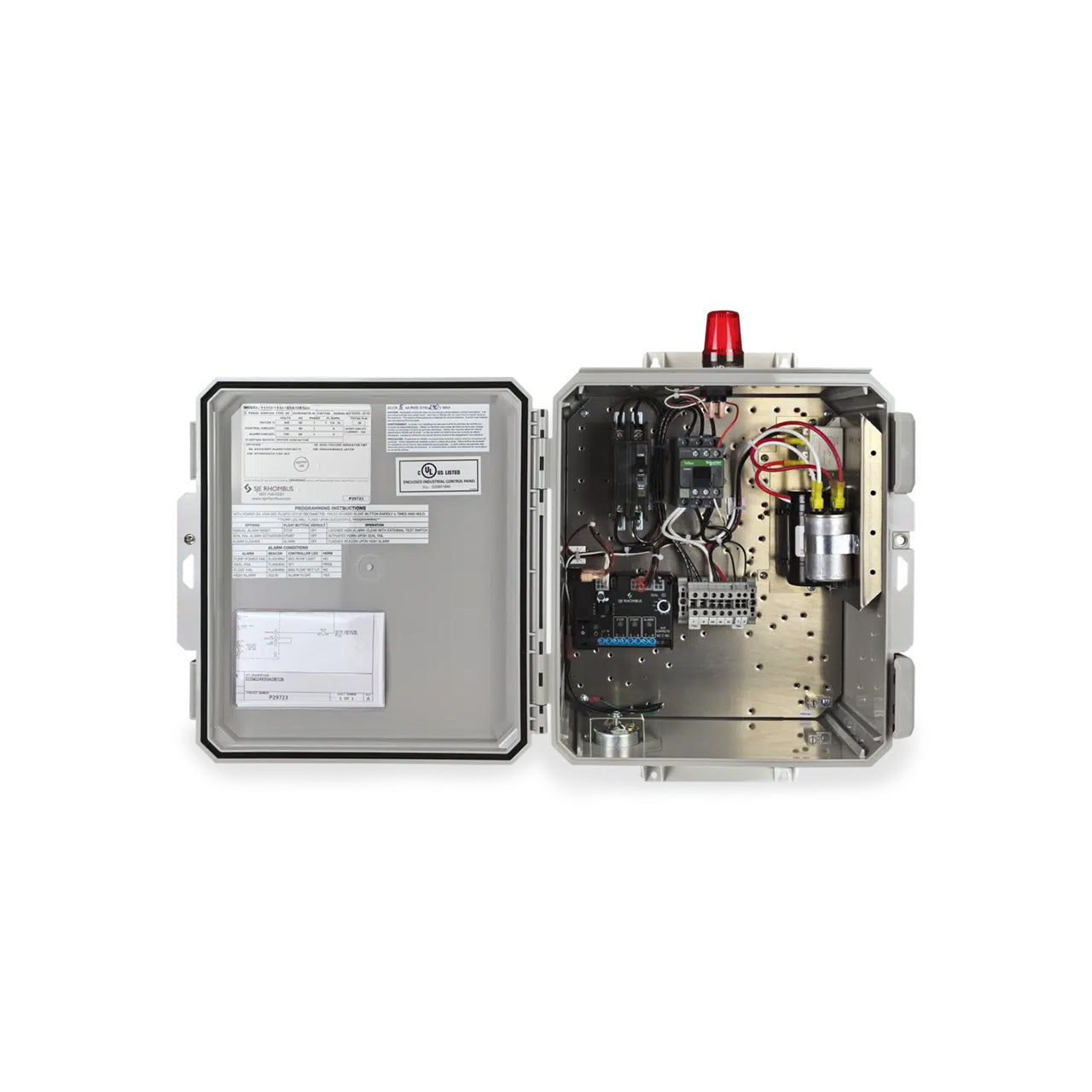

SJE-Rhombus Model 113 - Single Phase Simplex Pump Control Panel Components

1. NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use); Enclosure Measures 14x12x6 Inches
2. IEC Motor Contactor Controls Pump by Switching Electrical Lines
3. Simplex Controller Provides Pump and Alarm Control; Elevated in the Enclosure for Easy Access and Field Wiring
1. HOA Switch for Manual Control of Pump
2. Pump Run Green LED Indicator
3. Control Power ON/OFF Switch
4. Power ON Green LED Indicator
5. Float Push-To-Test Buttons
6. Float Status Red LED Indicators
7. Auxiliary Alarm Contacts Form C
8. Option: Adjustable Seal Failure Circuit and Red LED Indicator (must select option 5E when ordering)
4. Pump Input Power and Pump Connection Terminal Block
5. Ground Lugs
6. Circuit Breaker (optional) Provides Pump Disconnect and Branch Circuit Protection
7. Capacitor Start Module - Start/Run Capacitor Kit must be Ordered Separately.
8. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
9. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
10. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared. (Not Shown)

Model 113 Control Panels Cannot be Returned

NOTE:Other Options Available. Options Selected May Increase Enclosure Size and Change Component Layout.

Note: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel.
