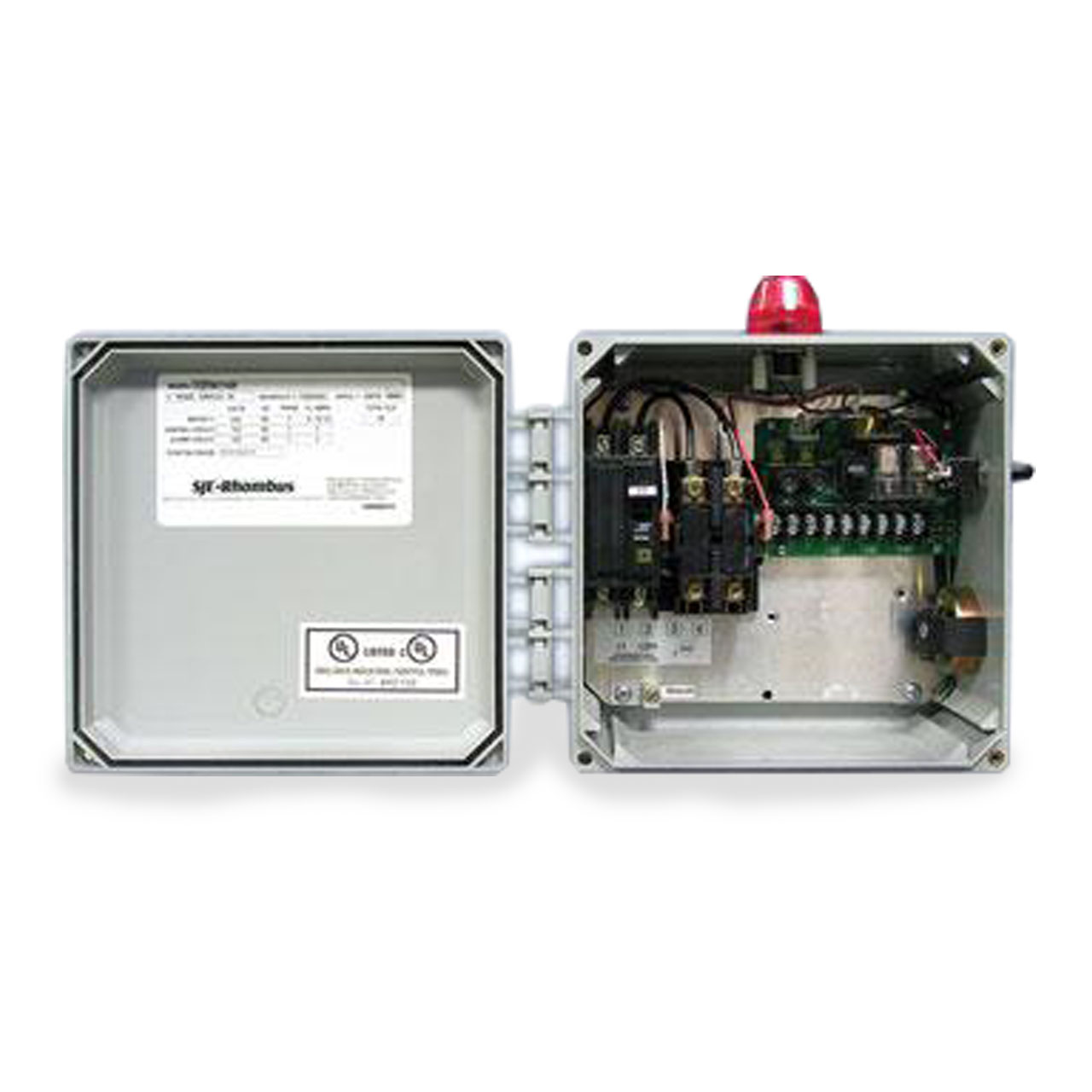

SJE-Rhombus Model 1121W114H17A Simplex Single Phase Motor Contactor Control Panel 120/208/240 VAC w/3-Floats
SJE-Rhombus Model 1121W114H17A Simplex Single Phase Motor Contactor Control Panel 120/208/240 VAC w/3-Floats
SKU : SJE1019840
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - 3R Simplex Control Panels
Single Phase, Simplex Motor Contactor Control
The Model 112 control panel provides a reliable means of controlling one 120/208/240V single phase pump in water and wastewater applications.
Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system.
Common applications include pump chambers, sump pump basins, irrigation systems and lift stations.
SJE-Rhombus Model 1121W114H17A Control Panel Features
- Entire Control System (Panel and Switches) is UL Listed to Meet and/or Exceed Industry Safety Standards
- Dual Safety Certification for the United States and Canada
- Standard Package Includes Float Switches
- Complete with Step-by-Step Installation Instructions
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Model 11211W114H17A Control Panel Components
- Standard Alarm Package Includes
- Red Alarm Beacon Provides 360º Visual Check of Alarm Condition
- Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
- Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition has been Cleared
- Horn Silence Relay (mounted on circuit board)
- Enclosure Measures 8 x 8 x 4 inches, NEMA4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use).
- Starting Device Magnetic Motor Contactor 120/208/240V
- Voltage 120/208/240V
- Pump Full Load Amps 0-15 FLA.
- Pump Disconnects Circuit Breaker for 120/208/240V
- Float Switch Application Pump Down
- (3) SJE SignalMaster / Mounting Strap (per float)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Model 112 - Single Phase Simplex Motor Contactor Panel Resources
SJE-Rhombus Model 112 - Single Phase Simplex Motor Contactor Control Panel Catalog Page
SJE-Rhombus Model 112 - Single Phase Simplex Motor Contactor Control Panel Installation Instructions
SJE-Rhombus Model 112 - Single Phase Simplex Motor Contactor Control Panel Wiring Diagram
