Discontinued - Simplex Panels

The Model 111 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.

The Model 111 control panel provides a reliable means of controlling on 120/208/240V single phase pump in water and wastewater applications by either a motor contactor or pump switch.

The motor contactor model utilizes two control switches that activate a magnetic motor contactor to turn the pump on and off. The pump switch model utilizes a pump switch as the pump starting device.

Common applications include pump chambers, sump pump basins, irrigation system and lift stations.

SJE-Rhombus Model 111 - Single Phase Simplex Motor Contactor or Pump Switch Control Panel Features

Panel Features:

• Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) enclosure
• Hand/Off/Automatic (HOA) switch for manual pump control
• Green pump run indicator light
• Terminal block
• Control fuse
• Magnetic motor contactor (motor contactor models only) controls pump by switching electrical lines
• UL/cUL Listed
• Three-Year Limited Warranty

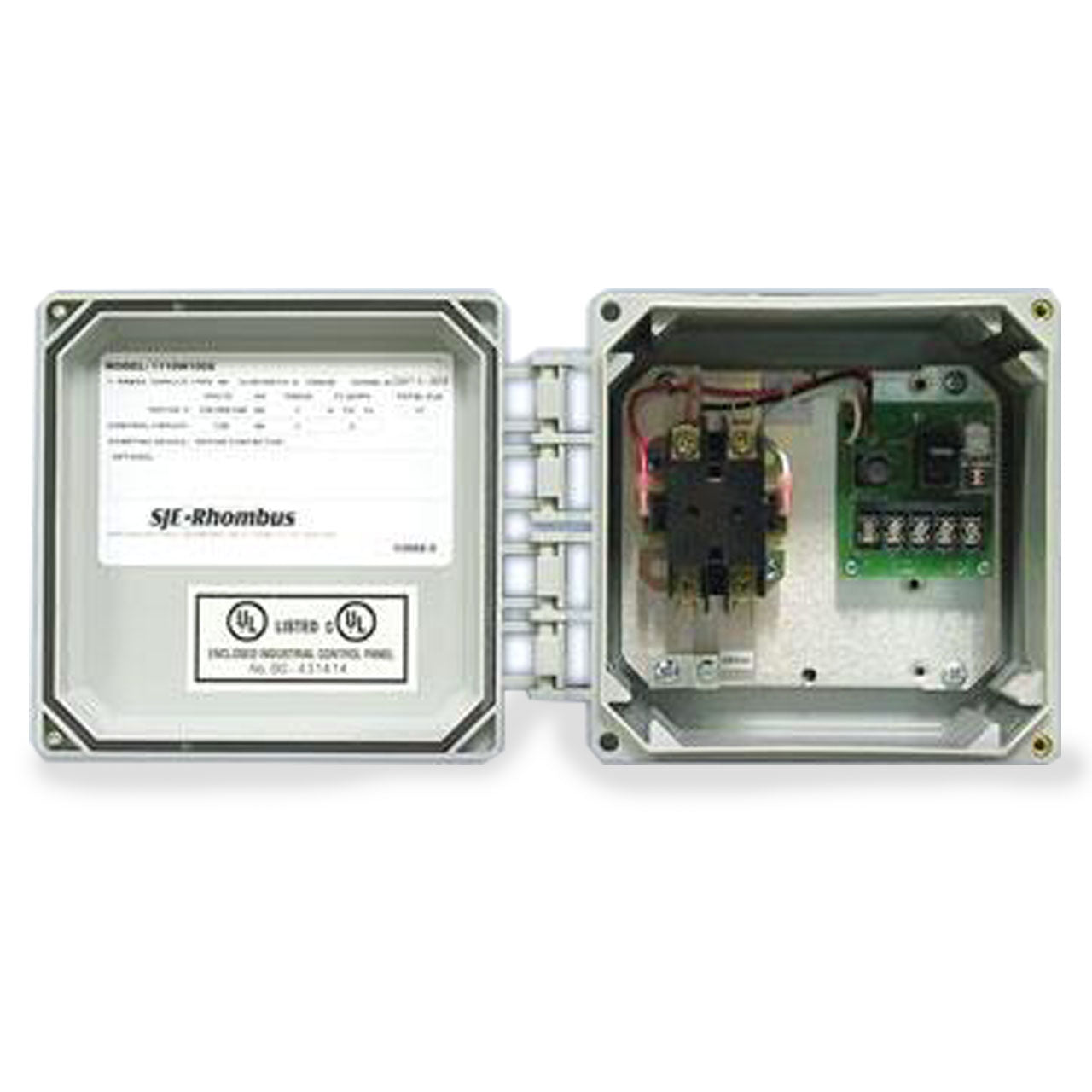

SJE-Rhombus Model 111 - Single Phase Simplex Motor Contactor or Pump Switch Control Panel Components

1. Enclosure measures 6 x 6 x 4 inches. Choice of NEMA1 or NEMA4X.
2. HOA Switch for manual pump control.
3. Green Pump Run Indicator Light
4. Terminal Block
5. Ground Lug
6. Magnetic Motor Contactor controls pump by switching electrical lines.
7. Control Fuse

NOTE: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel
