Single phase, duplex demand dose float controlled system for pump control and system monitoring.
The EZ Series® Duplex Control Panel is designed to control two (alternating) 120, 208, 240 VAC single phase pumps in water and sewage installations. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail.

The EZ Series® duplex control panel features a backlit LCD display on the inside of the front cover for programming and system monitoring, including: float status, elapsed time pump run, cycle counter, alarm counts (high water/power fail), float error count, auxiliary alarm counter, timer override count (TD only).

The optional post models include an access door. The post can be mounted in the ground directly, over a 4X4, or conduit. The panel is also available with optional duo alarm to meet the needs of various applications.

SJE-Rhombus EZ Series® - Single Phase Duplex Pump Control Panel Applications

• Single Phase, Duplex Demand Dose, Float Controlled System for Pump Control and System Monitoring
• Septic Tank Pumping
• Sewage Ejector Pumping
• Drainfield Dosing
• Water Reservoir Control

SJE-Rhombus EZ Series® - Single Phase Duplex Pump Control Panel Features

Digital Diplay Features
• Float Status
• Elapsed Time Pump Run
• Cycle Counter
• Alarm Counts (high water/power fail)
• Float Error Count
• Auxiliary Alarm Counter
Panel Features
• NEMA 4X Enclosure with Locking Latch
• Red LED Alarm Beacon on Cover Provides Visual Check of Alarm Condition
• Exterior Alarm Test/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Circuit Breakers Provide Pump Power Disconnect and Branch Circuit Protection
• Circuit Breaker Provides Control/Alarm Power Disconnect
• Power Relays Control Pump(s) by Switch Electrical Lines
• Float Connection Terminal Block
• Incoming Control/Alarm Power and Pump Power Terminal Block
• Control and Alarm Power Indicators
• LED Display Shows System Information (pump elapsed time hh:mm, events/cycles)
• Menu/Enter and Set/Change Buttons for Viewing and Programming Panel Settings
• Alarm Horn Provides Audio Warning of Alarm Condition
Options
• Duo Alarms to Meet Local Code Requirements
• Mounting Post with Removable Access Cover

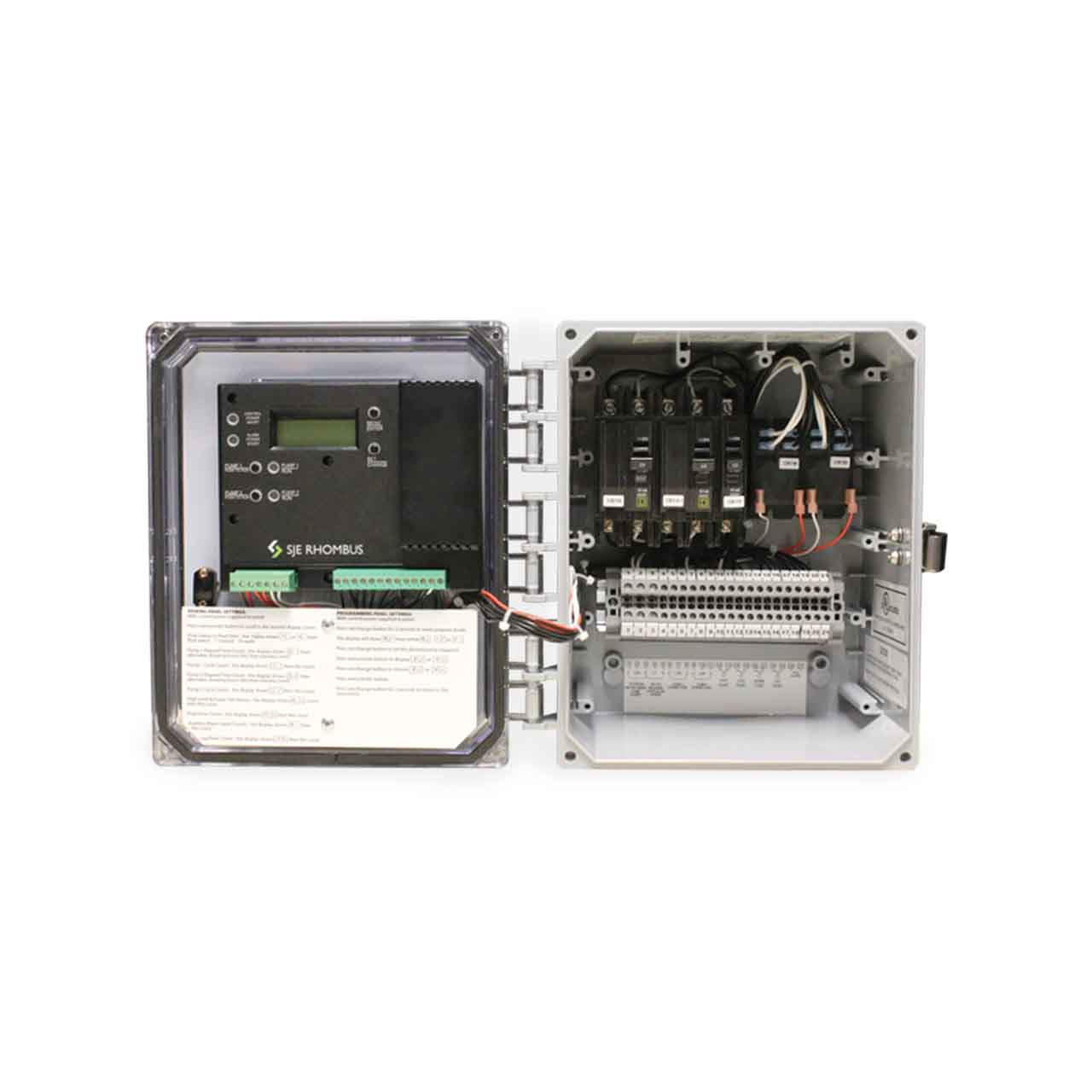

SJE-Rhombus EZ Series® - Single Phase Duplex Pump Control Panel Components

1. Enclosure Base Measures 10 X 10 X 6 inches (25.4 X 25.4 X 15.24 cm). NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use). Includes Locking Latch as Standard. Note: Options, Voltage, and Amp Range Selected may Change Enclosure Size and Component Layout.
2. Red Alarm Beacon Provides Visual Check of Alarm Condition.
3. Exterior Alarm Test/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets once Alarm Condition is Cleared.
4. Circuit Breakers Provide Pump Power Disconnect and Branch Circuit Protection.
5. Circuit Breaker Provides Control/Alarm Power Disconnect.
6. Power Relays Control Pump(s) by Switching Electrical Lines.
7. Float Connection Terminal Block
8. Incoming Control/Alarm Power & Pump Power Terminal Block
9. Control Power Indicator Light Illuminates if Control Power is Present in Panel.
10. Alarm Power Indicator Light Illuminates if Alarm Power is Present in Panel.
11. Pump Run Indicators Will Illuminate when Pumps are Called to Run.
12. Backlit LCD Display Shows System Information Including: Pump Elapsed Time (hh:mm), Pump Events (cycles), and Alarm Condition (counts).
13. Menu/Enter Button Used for Viewing Panel Settings.
14. Set/Change Button Used for Programming Panel Settings.
15. Pump 1 and Pump 2 Push To Run Momentary Switches - Pump Activates when Pressed
16. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating). (Located inside panel on cover, not shown)
17. Control and Alarm Power - Shorted Condition Indicators.

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel on Enclosure Cover.
