SJE-Rhombus EZ Series® Plugger- Single Phase Simplex Pump Control Panel

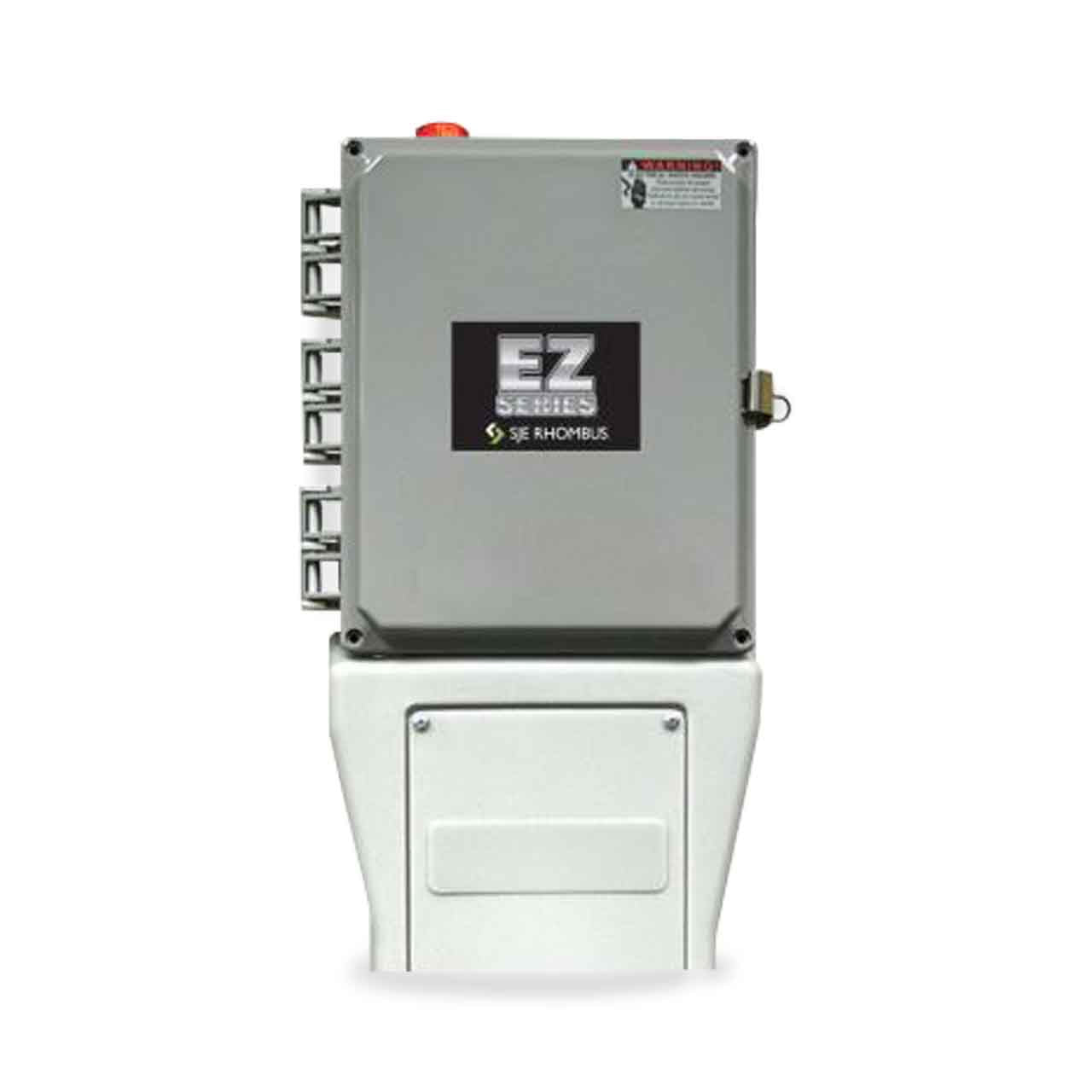

EZ Series® Plugger panel provides a convenient wiring connection for one single phase pump in effluent and sewage installations.
The EZ Series® Plugger control panel features a built-in high water alarm and receptacle to accept a 120V or 230V pump and a piggy-back pump switch.
The optional mounting post features a removable access cover to allow for easier wiring. The post can be mounted in the ground, directly over a 4x4, or conduit.

SJE-Rhombus EZ Series® Plugger- Single Phase Simplex Pump Control Panel Applications

• Septic Tank Pumping
• Sewage Ejector Pumping
• Drainfield Dosing
• Water Reservoir Control

SJE-Rhombus EZ Series® Plugger- Single Phase Simplex Pump Control Panel Features

• NEMA 4X Enclosure with Locking Latch
• Red Alarm Beacon Provides 360° Visual Check of Alarm Condition
• Receptacle for use with Piggy-Back Pump Switch
• Alarm Fuse
• Horn Silence Relay
• Pump Circuit Terminal Block
• Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition; Alarm Automatically Resets Once Alarm Condition is Cleared
• Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating)
• Alarm Power Indicator
• Alarm Circuit Terminal Block
• Ground Lug
• Complete with Step-By-Step Installation Instructions
• Optional Features:
• 34" Mounting Post with Cord Seal
• Duo Alarm
• Elapsed Time Meter
• Various Cord Lengths Available
• Pump Circuit Breaker
• UL/cUL Listed
• Five-Year Limited Warranty

SJE-Rhombus EZ Series® Plugger- Single Phase Simplex Pump Control Panel Specifications

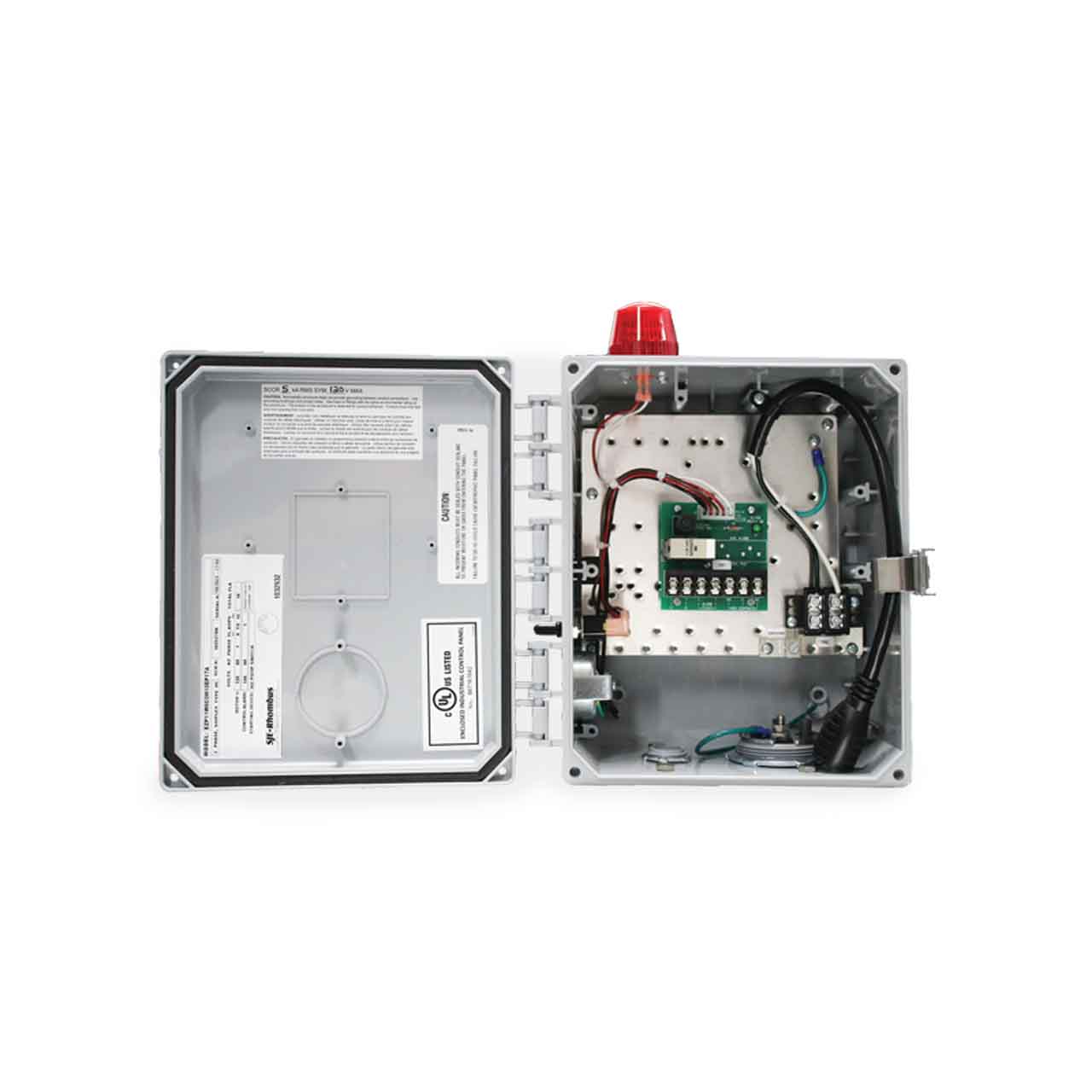

1. Enclosure Measures 10 x 8 x 6 inch (25.40 x 20.30 x 15.2 cm) with Removable Mounting Feet, NEMA 4X Rated, Ultraviolet Stabilized Thermoplastic for Indoor and Outdoor Use. Includes Locking Latch as Standard.
2. Red LED Beacon Provides 360° Visual Check of Alarm Condition.
3. Receptacle for use with Piggy-Back Pump Switch.
4. Alarm Fuse (mounted on circuit board).
5. Horn Silence Relay (mounted on circuit board).
6. Pump Circuit Terminal Block
7. Exterior Alarm Test/Normal/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
8. Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 decibel rating).
9. Alarm Power Indicator (mounted on circuit board).
10. Alarm Circuit Terminal Block (mounted on circuit board).
11. Ground Lug
12. Custom Engineered Liquid Tight 2" Cord Seal
13. Incoming Pump Power 3/4" Hub

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel.
