EZ Series® In-Site® CL with Bluetooth® Simplex Demand Control Panel

The EZ Series® In-Site® CL simplex control panel is designed to control one 120, 208, 240 VAC single phase pump in water and sewage installations. The panel configuration can be easily converted in the field to either a timed dose or demand dose using a tablet or smartphone. All system data including pump run times, pump cycles, alarm conditions, power outages, and more can be downloaded using the exclusive EZ InSite® Connect App. Data reports make diagnosing system conditions easy.

The panel utilizes the C-Level™ sensor for continuous level monitoring and records up to 4000 system events, including pump run times, pump cycles, alarm conditions, HOA settings, power outages, service calls and more. The C-Level™ sensor is a pressure transducer that senses the liquid level in the tank and sends a signal to the EZ Series® In-Site® panel. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).

The new compact redesign (10” x 8” x 4”) is ideal for residential applications. The innovative internal design of components and integral mounting tabs make installation quick and simple. Includes integral padlockable latch for added safety.

The new EZ InSite Connect App allows you view real time pump run time, cycle counts, tank levels and more right from your smart device. All system data including pump run times, pump cycles, alarm conditions, power outages, and more can be downloaded using the EZ InSite Connect App, and analyzed using our exclusive InSite Reporting Software.

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Applications

• Single Phase, Simplex Demand Dose, Float Controlled System for Pump Control and System Monitoring
• Septic Tank Pumping
• Sewage Ejector Pumping
• Drainfield Dosing
• Water Reservoir Control

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Features

• Entire Control System is UL Listed to Meet and/or Exceed Industry Safety Standards
• Dual Safety Certification for the United States and Canada
• Bluetooth® Wireless Connection for Easy Configuration and Data Downloading to a Smart Mobile Device
• Complete with Step-by-Step Installation Instructions
• UL/cUL Listed
• Warranty
• Five-Year Limited Warranty on Panel
• Five-Year Limited Warranty on C-Level™ Sensor
• C-Level™ Sensor US Patent No. 8,567,242; 8,336,385; 8,650,949.

SJE-Rhombus EZ Series® - Single Phase Simplex Pump Control Panel Specifications

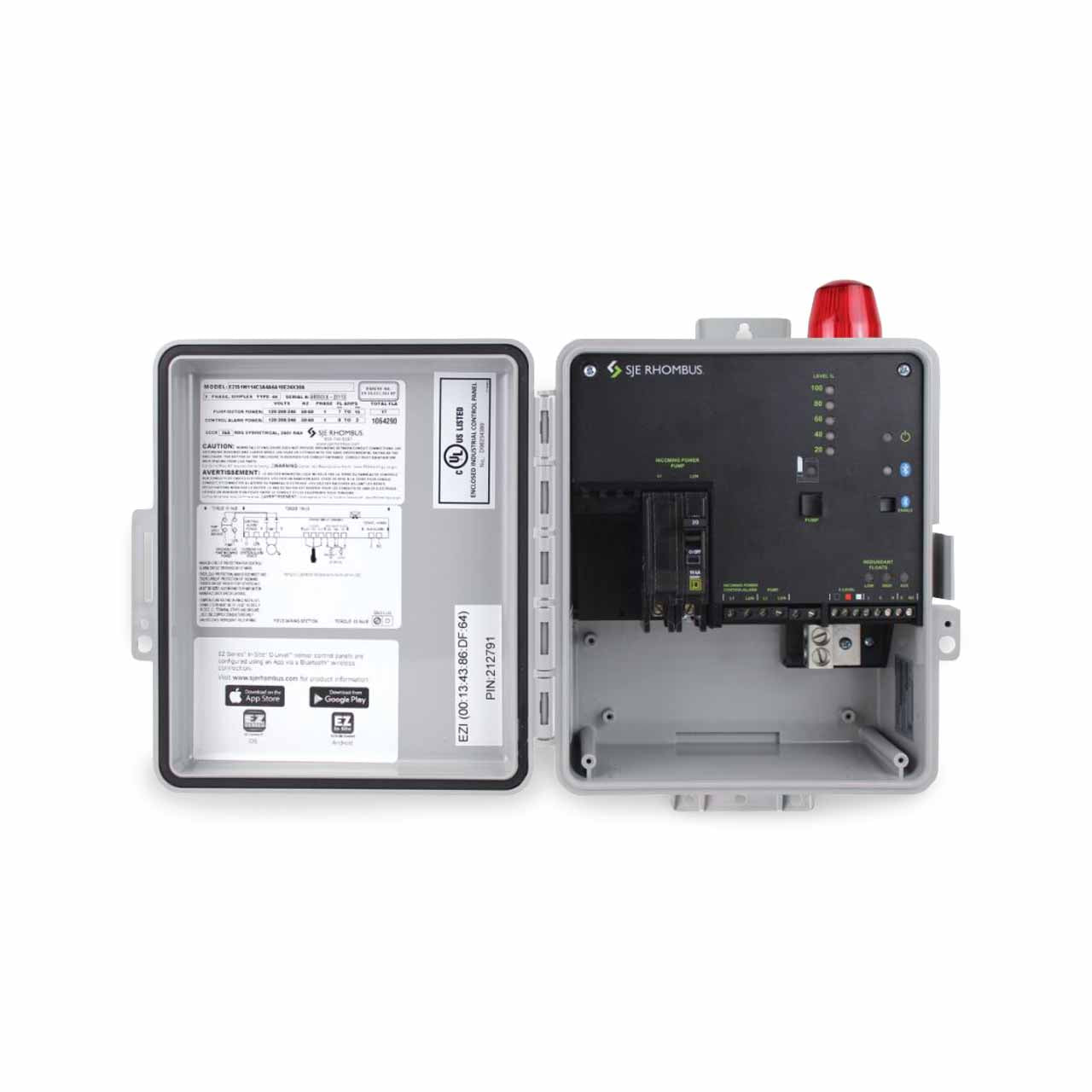

1. Enclosure Base Measures 10 X 8 X 4 inches (25.4 X 20.32 X 10.16 cm). NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use). Includes Integral Locking Latch as Standard.
2. Red LED Beacon Provides Visual Check of Alarm Condition.
3. Circuit Breaker Provides Pump Power Disconnect and Branch Circuit Protection.
4. Safety Cover with Touch Safe Design.
5. C-Level™ Sensor/Float Connection Terminal Block
6. Incoming Control/Alarm Power & Pump Power Terminal Block
7. Control Power Indicator Light Illuminates if Control Power is Present in Panel.
8. Float Status Indicator Light Illuminates When Float is Active.
9. Pump Run Indicator Illuminates when Pump is Called to Run.
10. Pump Manual Run Switch.
11. Tank Level Indicator.
12. Bluetooth® Wireless Module
13. Ground Lug(s)
14. Auxiliary Alarm Indicator

NOT SHOWN: Exterior Alarm Test/Silence Switch Allows Horn and Light to be Tested and Horn to be Silenced in an Alarm Condition. Alarm Automatically Resets Once Alarm Condition is Cleared.
Alarm Horn Provides Audio Warning of Alarm Condition (83 to 85 Decibel Rating.)

NOTE: Schematic/Wiring Diagram and Pump Specification Label are Located Inside the Panel
