SJE-Rhombus EZconnex® 4-Port Float Switch Connection System

Designed for Easy Installation of Float Switches in Wet Well Applications

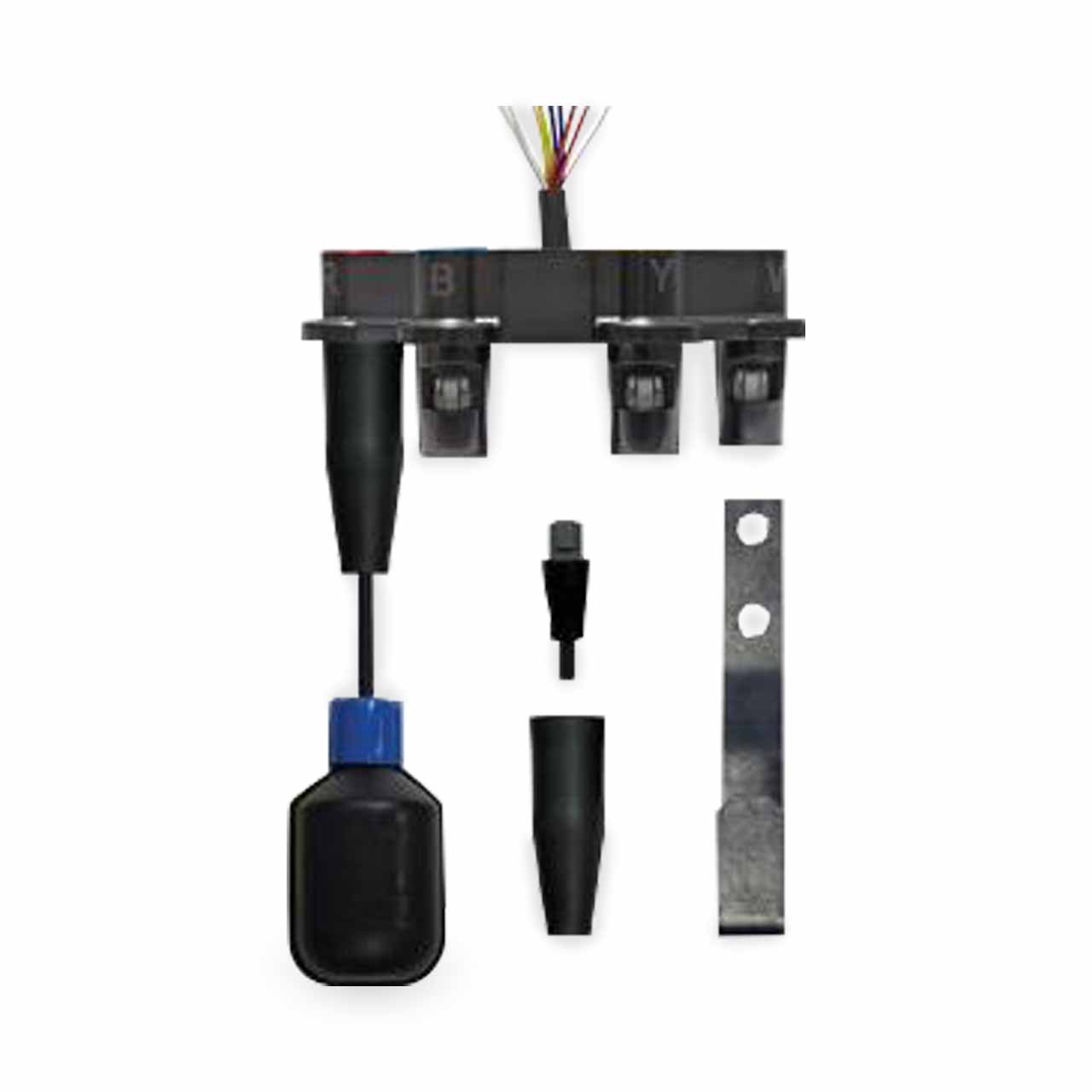

The EZconnex® 4-port Float Switch Connection System includes an electrical wiring manifold with mounting bracket and hardware. The manifold features four quick release float switch connection ports. A single 8-conductor direct burial cable has Red-Blue-Yellow-White wire pairs that match the R-B-Y-W colored caps on the manifold housing for easy field wiring. The system is rated for short term water submersion. The mounting bracket is designed to allow quick access to the manifold and float switches for easy maintenance.

EZconnex® 4-port float switches feature an internal switching mechanism with sealed gold cross-point contacts for reliable low current operation. A range of wide-angle or narrow-angle float switches feature a quick release connection that simply plugs into the manifold port(s) for easy installation.

The EZconnex® 4-port system can be used with 1, 2, 3, or 4 float switches. Each float switch includes a protective rubber boot that provides a dual seal design for an extra layer of protection to keep connections clean and dry. Sealing plugs are available for unused manifold port(s). NOTE: Do not install with open port(s).

SJE-Rhombus EZconnex® 4-Port Float Switch Connection System Features

• 4 Quick Release Float Connection Ports.
• A Single Multi-Conductor Direct Burial Cable with Shield.
• Housing is Imprinted with R-B-Y that Matches Red-Blue-Yellow Cable Wire Pairs for Easy Float Identification.
• Rated for Short Term Water Submersion.
• Includes Mounting Bracket with Hardware.
• Designed for use with EZconnex™ Float Switches (not included with manifold; float switches must be ordered separately):
• Low Current Applications Down to 0.160 mA at 125V.
• Mechanically-Activated, Snap Action Contacts.
• Quick Release Float Connection Simply Plugs into Manifold Port(s).
• Colored Caps for Easy Identification of Normally Open (blue cap) or Normally Closed (red cap) Models.
• Activation Angle Above/Below Horizontal: 4"(10.16 cm) Wide-Angle; 1.5" (3.81 cm) Narrow-Angle
• Each Float Switch Includes a Protective Rubber Boot that Provides a Dual Seal Design for a Extra Layer of Protection to Keep Connection to Keep Connections Clean and Dry.
• MANIFOLD OPTIONS:
• Standard Cable Lengths of 25, 50 or 100 ft (7.62, 15.24, or 30.48 m).
• Sealing Plug (includes rubber boot) Required for Unused Port(s).
• FLOAT SWITCH OPTIONS:
• Standard Cable Lengths of 5,10 or 20 ft (1.52, 3.05, or 6.10 m).
• Blue Cap for Normally Open (High Level) Applications or Red Cap for Normally Closed (low level) Applications.
• With Narrow or Wide-Angle Pumping Ranges.
• Two Float Mounting Configurations Available:
• Mounting Clamp: for Applications where the Switch can be Attached to a Float Tree or Similar Mounting Device.
• Cable Weight: Includes Clip-On Cable Weight; Floats Should be Hung From a Hanger Bracket (ordered separately)

NOTE: Do Not Suspend Floats Directly from Manifold.

• CSA Certified
• Five-Year Limited Warranty

SJE-Rhombus EZconnex® 4-Port Float Switch Connection System Specifications

• MANIFOLD SPECIFICATIONS:
  • CABLE: Direct Burial Shielded PVC Type TC-ER TFFN (UL) 600V 18 Gauge, 8 Conductor
  • HOUSING: ABS Plastic
  • ELECTRICAL: 125 VAC Maximum Electrical Overload: 1 Amp per Connection Port.
• FLOAT SPECIFICATIONS:
  • CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
  • FLOAT: 2.74" Diameter x 4.83" Long (7.0 cm x 12.3 cm), High-Impact, Corrosion Resistant, Polypropylene Housing for Use in Sewage and Water Up to 140° F (60° C)
  • MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90kPa)
  • ELECTRICAL: 125 VAC
  • Maximum Electrical Load: 1 Amp
  • Minimum Electrical Load: 0.160 Milliamps
  • ELECTRICAL: 30 VDC
  • Maximum Electrical Load: 1 Amp
  • Minimum Electrical Load: 0.160 Milliamps
  • ELECTRICAL: 5 VDC
  • Minimum Electrical Load: 1 Milliamps
